Pro Comp 8 Inch Stage I Lift Kit with ES9000 Shocks – K4183B

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • This 8-inch Stage I kit is for 2011–2016 Ford F-250 and F-350 Super Duty trucks
  • Specific rate coil springs and spacers with radius arm drop brackets
  • Drop Pitman arm steering correction and a front track bar bracket
  • Lift blocks, U-bolts and add-a-leafs at the rear with ES9000 front shocks

Description

Overview

The Pro Comp K4183B is an 8-inch Stage I lift kit with ES9000 shocks for the 2011–2016 Ford F-250 and F-350 Super Duty. It uses specific rate coil springs and spacers with radius arm drop brackets at the front, and lift blocks, U-bolts and add-a-leafs at the rear.

A drop Pitman arm handles the steering correction for the taller stance, and the kit includes a front track bar bracket and sway bar links. The lift height range starts at 7 inches and up, and the front shocks are ES9000 units.

Key features

  • 8-inch lift height from a Stage I kit
  • Specific rate coil springs and spacers
  • Radius arm drop brackets
  • Drop Pitman arm steering correction
  • Front track bar bracket and sway bar links
  • Lift blocks, U-bolts and add-a-leafs at the rear

Living with an 8-inch lift

An 8-inch lift changes how the truck handles, its braking distance and its clearance at the curb. The center of gravity moves higher, so take corners more slowly and expect more body roll than a stock truck. Tire choice matters too, since a taller stance changes stability and gearing.

Drop brackets and the drop Pitman arm are usually installed together with the rear blocks and add-a-leafs. Check that the driveshaft, brake lines and fuel lines have enough slack at full droop. Plan for both axles to be realigned after the lift, and recheck the bolts after the first few weeks of use.

  • Check brake line slack at full droop
  • Recheck front bolts after the first drives
  • Expect a higher center of gravity and slower cornering

Specifications

Brand Pro Comp Suspension
Part number K4183B
UPC 70000544942
Lift height 8 inch (lift height range 7 inches and up)
Lift kit stage Stage 1
Suspension type Radius arm or radius arm brackets
Front lift Specific rate coil springs and spacers
Steering correction Pitman arm
Rear lift Lift blocks, U-bolts and add-a-leaf
Front shocks ES9000

Vehicle fitment

The kit fits the 2011–2016 Ford F-250 and F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.

The list covers 2011 through 2016 only, so the 2008 through 2010 and 2017 and newer Super Duty trucks are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8-inch lift changes the front and rear geometry, so plan on a full alignment and a driveline angle check after the install.

What’s included

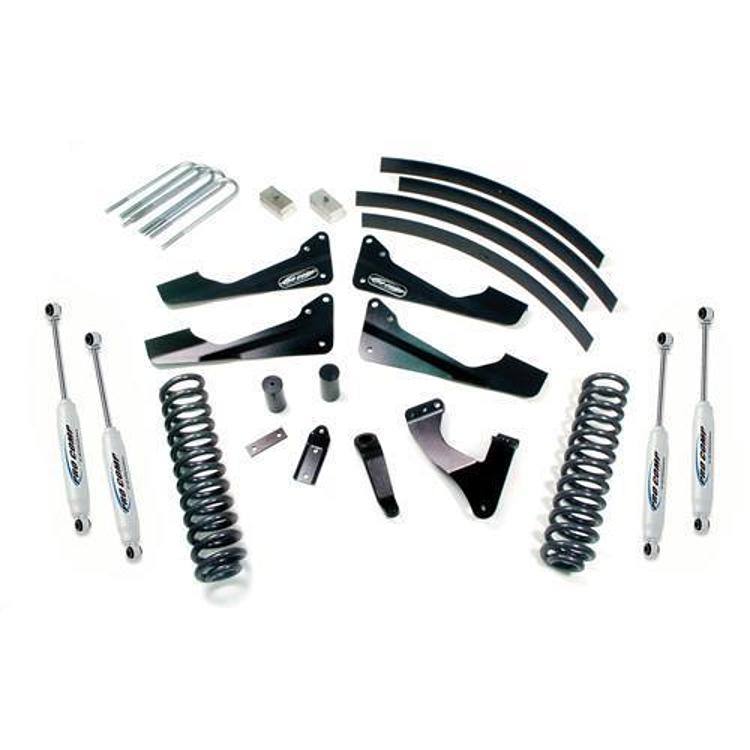

The kit includes specific rate coil springs and spacers, radius arm drop brackets, the drop Pitman arm, a front track bar bracket, sway bar links, lift blocks, U-bolts and add-a-leafs, and ES9000 front shocks.

SKU: EXPK4183B Category:

Specification

Shipping weight 265.85 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4183B fit both F-250 and F-350 Super Duty trucks?

Yes. The kit fits both F-250 and F-350 Super Duty trucks from 2011 through 2016, in the King Ranch, Lariat, Platinum, XL and XLT versions. Confirm fit for your vehicle's year, model and trim before ordering.

Is this kit Stage I or Stage II?

It is a Stage I kit, so the front uses radius arm drop brackets. The 8-inch lift height is the main difference in this family, and the drop Pitman arm is part of the Stage I setup.

What shocks are included with it?

The kit includes ES9000 front shocks, along with specific rate coil springs, radius arm drop brackets and a drop Pitman arm for the front end.

Does an 8-inch lift need a steering stabilizer?

A stabilizer is a common addition with a taller lift, since it can help keep the front steady over rough ground. Check the steering linkage and ball joints at the same time. Confirm fit for your vehicle's year, model and trim before ordering any extra steering part.

How does tire size affect an 8-inch lift?

Larger tires raise the load on the lift hardware and can rub at full steering lock or compression. Choose a tire size that fits the new clearance, and recheck the speedometer calibration after changing it.
