Pro Comp Stage III 4-Link 4″ Suspension Kit with PRO-X Shocks – K4212T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stage III 4-link kit with PRO-X shocks for Ford Super Duty
  • Fits 2017–2022 F-250 and 2017–2018, 2020–2021 F-350
  • 6-inch stage 3 in the specifications, lift range 6 to 7 inches
  • 37-inch tire size listed
  • PRO-X front and rear shocks included

Description

Overview

The Pro Comp K4212T is a Stage III 4-link suspension kit with PRO-X shocks for Ford Super Duty trucks. It is a 6-inch kit with a lift height range of 6 to 7 inches and is sized for 37-inch tires. It fits the 2017–2022 Ford F-250 Super Duty and the 2017–2018 and 2020–2021 Ford F-350 Super Duty. Confirm the kit size against the packing list before ordering.

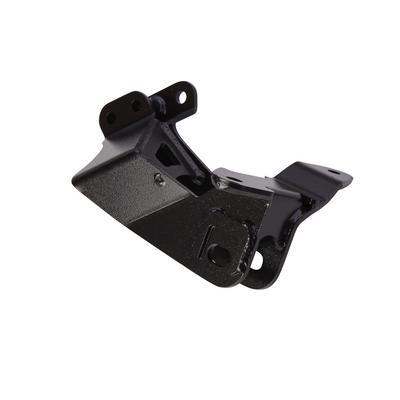

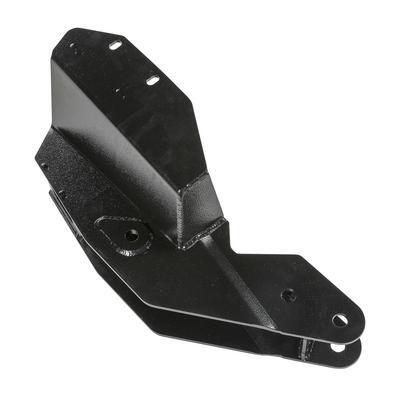

The kit uses extended-length control arms in a 4-link arrangement, with brackets set for that geometry. The design keeps the roll center in place, increases wheel travel and limits the change in caster and pinion angle. The tubular upper control arms are adjustable on the vehicle for caster.

PRO-X front and rear shocks come with the kit. The rear lift uses a block and spacer method with a block and U-bolt component. The custom-stamped steel lower arms clear 37-inch tires at full steer.

Key features

  • Extended-length control arms in 4-link geometry

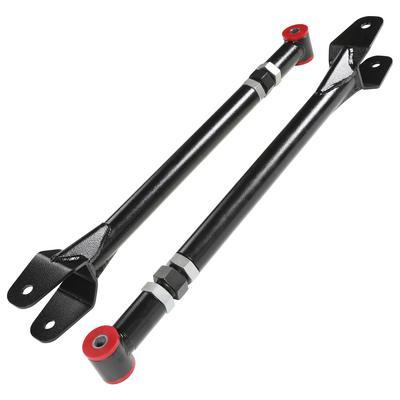

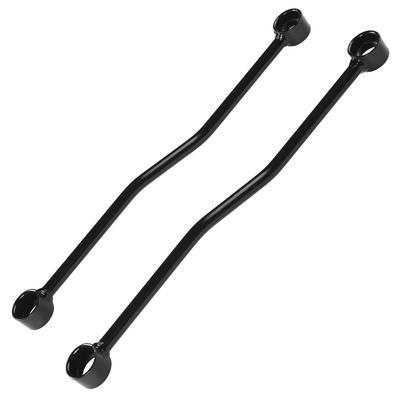

  • Tubular upper control arms adjustable for caster
  • Transfer case crossmember between the brackets

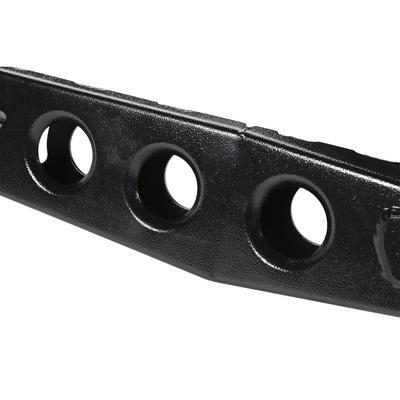

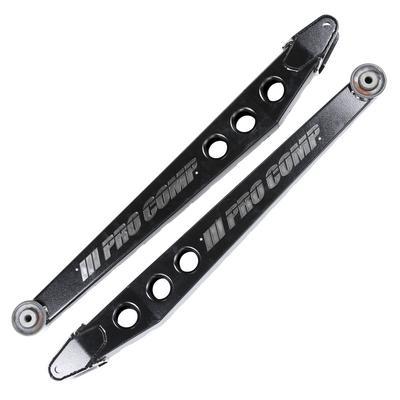

  • Custom-stamped steel lower arms

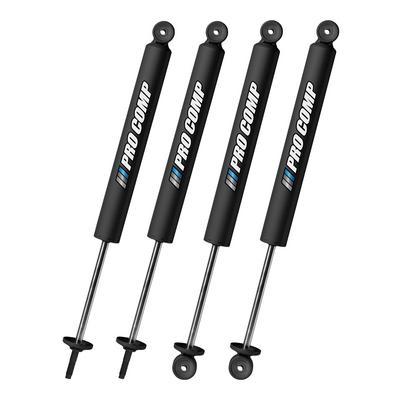

  • PRO-X front and rear shocks included

Before you install a 4-link kit

A 4-link system replaces the stock axle locating setup with four control links that hold the axle in place fore and aft. That arrangement keeps the axle from twisting under hard acceleration and braking, so the truck tends to track straight on pavement and climb steadily on trails. The links only work as designed when the brackets, frame and crossmember are sound, so inspect those mounting points before the new arms go on.

Taller suspension changes driveline angles, so have the driveshaft and U-joints checked after installation. Larger tires add load to the hubs, ball joints and steering, so many owners replace worn ball joints, tie rod ends and bushings at the same time. Keep a torque wrench handy and recheck the links and bolts after the first few weeks of driving.

Specifications

Brand Pro Comp Suspension
Part number K4212T
Suspension type 4-link suspension kit
Kit Stage III, 6 inches in the specifications
Shock series PRO-X
Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Rear lift method Block and spacer

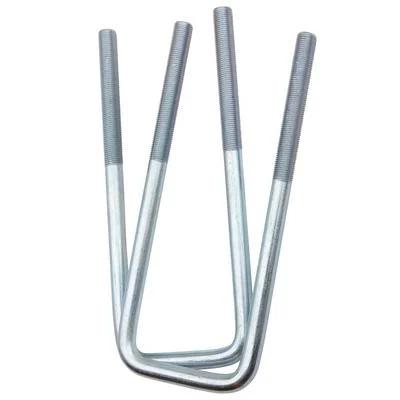

Rear lift component Block and U-bolt
Lift height range 6 to 7 in
Tire size 37 in

Vehicle fitment

It fits the 2017–2022 Ford F-250 Super Duty in the King Ranch, Lariat, Limited, Platinum, XL and XLT trims, and the 2017–2018 and 2020–2021 Ford F-350 Super Duty in the same trims.

The 2019 F-350 Super Duty and models from 2023 onward are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The title and the specifications give different lift figures, 4 inches and 6 inches, so confirm the kit size from the packing list before ordering. A 4-link kit needs a professional alignment and a driveline angle check after installation.

What’s included

PRO-X front and rear shocks, included with the kit.

Not included: tires and wheels.

SKU: EXPK4212T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2017–2022King Ranch, Lariat, Limited, Platinum, XL, XLT
Ford F-350 Super Duty2017–2018, 2020–2021King Ranch, Lariat, Limited, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the K4212T a 4-inch or 6-inch kit?

It is a 6-inch Stage III kit with a lift height range of 6 to 7 inches, and it is sized for 37-inch tires. Confirm the lift size against your truck's height before ordering.

Does the K4212T come with PRO-X shocks?

Yes. The specifications list PRO-X front and rear shocks as included with the kit, so separate shocks are not needed for the installation.

Does the K4212T fit a 2021 Ford F-250 Super Duty?

Yes. It fits the 2017–2022 F-250 Super Duty in several trims, so a 2021 model year is covered. Make sure your trim is covered before ordering.

Do I need to have the alignment done after this kit goes in?

Yes. Caster is set on the upper control arms, so a shop should measure it once the kit is installed. Ask the shop to check the driveline angles and steering centering at the same visit, since those settings change together.
