Select your vehicle

Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4117B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms and I beam brackets
  • Extended SS brake lines and pitman arm steering correction
  • Rear block and U-bolt kit with ES3000 front and rear shocks
  • Fits 1981–1989 Ford F-150 trucks

Description

Overview

The Pro Comp K4117B is a 6-inch stage 2 coil spring lift with ES3000 front and rear shocks. It fits 1981–1989 Ford F-150 trucks, with a lift height range of 5 to 6.99 inches.

The front uses coil springs with radius arms and I beam brackets, and the rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.

Key features

  • 6-inch lift, stage 2
  • Front coil springs with radius arms
  • I beam brackets
  • Pitman arm steering correction
  • Extended length SS brake lines
  • Rear block and U-bolt lift

Shock and brake line checks

Older F-150 trucks often have worn ball joints, bushings and steering components, and a lift adds load to all of them. Before fitting new springs, inspect the frame, spring perches and suspension mounts for rust or cracks, since the added height changes how weight moves through those points. Replacing worn bushings at the same time keeps the new geometry predictable.

Extended brake lines reduce the chance of stretching or pinching as the suspension travels, but they should still be routed away from tires, springs and exhaust. After installation, test the brakes at low speed in a safe area and watch the pedal feel. Recheck steering play once the work is done, and inspect the ES3000 shocks for leaks at regular service intervals.

  • Look for rust at spring perches before installing
  • Confirm brake line routing clears moving parts

Specifications

Brand Pro Comp Suspension
Part number K4117B
UPC 614901125405
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms and I beam brackets
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Brake lines Extended length SS
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford F-150 trucks. Other years and Bronco models are outside its fit. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms and I beam brackets change the front geometry, so set the alignment after installation. The rear block and U-bolt lift changes the driveline angles, so check those once the truck is back on the ground.

What’s included

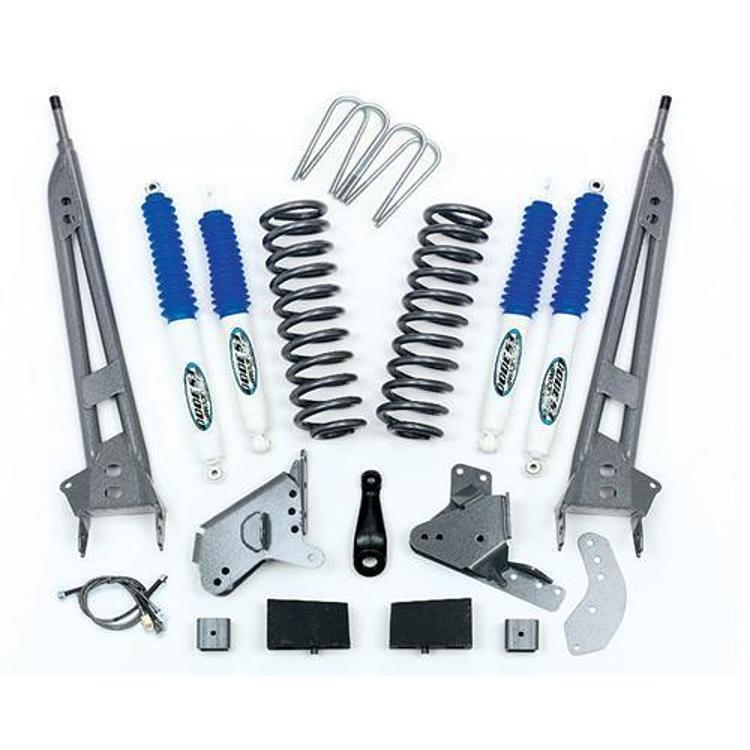

The kit includes front coil springs, radius arms, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4117B Category:

Specification

Shipping weight 172.19 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501981–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4117B fit a 1984 Ford F-150?

Yes. It fits 1981–1989 Ford F-150 trucks, which includes 1984 model year trucks. Confirm fit for your vehicle's year, model and trim before ordering, since trim details matter for front geometry.

How does the K4117B differ from the K4116B?

Both are 6-inch coil spring lifts for 1981–1989 Ford F-150 trucks. The K4117B is stage 2 with radius arms, while the K4116B is stage 1 with radius arm brackets.

Are shock boots included with the K4117B?

No. Shock boots are not included in this 6-inch stage 2 kit, so ES3000 boots must be sourced separately if they are needed.

Can a stage 2 lift be installed without changing the steering?

Stage 2 kits with radius arms and a pitman arm address steering geometry, but the result depends on the truck's condition. Inspect tie rods, drag links and ball joints before installing, and have the steering checked after the lift is complete.
