Overview

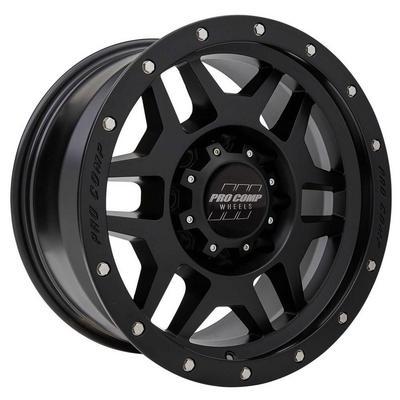

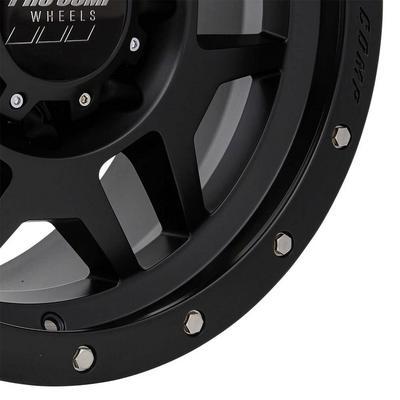

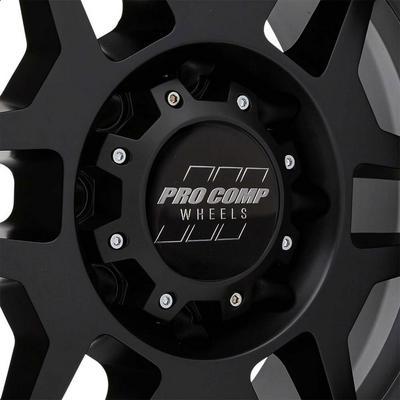

The Pro Comp 41 Series Phaser 18×9 wheel, part number PXA5041-897050, is an 18-inch aluminum split spoke wheel with a 9-inch width. It is one of the eight-lug versions in the series, with an 8 on 170 bolt pattern and a satin black finish.
The wheel carries a 114 center bore, a 0 offset and a backspacing of 5. Pro Comp builds its alloys with low-pressure casting and states they suit performance trucks and sport utility vehicles. No vehicle is named, and the brand classes the wheel as universal fit.
Key features
- Low-pressure cast aluminum
- 18-inch diameter and 9-inch width
- 8 on 170 bolt pattern
- Center bore 114
- Offset 0 and backspacing 5
- Satin black split spoke finish
Eight-lug hubs and wheel care
Eight-lug hubs carry more studs than five- or six-lug hubs, but the bolt circle is a different size, so the wheel cannot be swapped between layouts. Measure the hub carefully, including the bolt circle and the spacing between studs, before accepting any wheel. A matching center bore is the other half of a correct fit.
Clean a satin black finish with a pH-neutral wheel cleaner and a soft brush or microfiber cloth. Avoid abrasive pads and strong acid cleaners, which dull or scratch satin surfaces over time. Inspect the wheel after hard impacts for cracks, bent edges and air leaks at the bead, and check the lug seats for dents or wear. Replace a damaged wheel rather than repairing it on the trail.
- Measure the bolt circle, not just the stud count
- Use a pH-neutral cleaner on satin finish
- Inspect the lug seats after curb strikes
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5041-897050 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 114 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Split spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 41 Series Phaser |
Vehicle fitment
This 18×9 wheel is not assigned to a vehicle and is universal fit. An eight-lug 170 hub is the match to confirm, along with the 114 center bore, before the wheel is chosen for any application.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight-lug hubs use a different bolt layout from five- and six-lug hubs, so the 8 on 170 pattern is not interchangeable with other patterns. Measure the hub before mounting.
The 8 on 170 eight-lug pattern requires a hub with that exact bolt layout, and the 114 center bore must seat on the hub. The zero offset and 5 backspacing keep the mounting face centered, so caliper clearance is the remaining check.
What’s included
One 18×9 satin black wheel. Confirm the lug nuts and center caps you need before mounting.
