Pro Comp 61 Series Cognos Wheel, 17x9 with 5 on 5 Bolt Pattern – Satin Black Milled – 5161-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5161-7973: 17×9 aluminum split-spoke wheel, 61 Series, satin black milled
  • 5 on 5 bolt pattern, center bore 72, offset -6, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

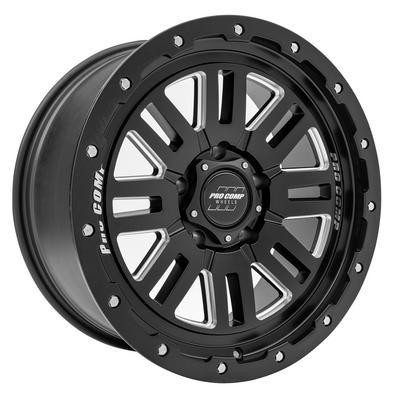

The Pro Comp PXA5161-7973 is a 17×9 aluminum split-spoke wheel from the Pro Comp 61 Series, finished in satin black milled with a 5 on 5 bolt pattern. The design is also called the Cognito. It is sold as one wheel.

The 61 Series is built with low-pressure casting, which gives strength with light weight, and the alloy wheels are rated from 2500 to 3650 lbs per wheel. This wheel is 9 inches wide with a center bore of 72, an offset of -6 and a backspacing of 4.75.

Key features

  • Low-pressure cast aluminum construction
  • Split-spoke face style
  • 17-inch diameter, 9-inch width
  • 5 on 5 bolt pattern with a center bore of 72
  • Offset -6 with 4.75 backspacing
  • Satin black milled finish

Split-spoke face and cleaning

Split-spoke faces open the wheel so more of the brake caliper and rotor show through. This makes visual checks easier, but the spoke gaps do not change offset or clearance. The gaps do collect mud and grit, so a brush that reaches between the spokes keeps the face clean and makes it easier to spot cracks or loose hardware.

Satin black milled finishes are sensitive to harsh chemicals. Use a pH-neutral wheel cleaner and a soft brush, then rinse thoroughly and dry to prevent water spots. Removing brake dust from the inner barrel regularly keeps the finish looking even and makes inspection of the mounting area simpler.

  • Use a pH-neutral cleaner on the milled finish
  • Brush between the spokes after off-road runs
  • Inspect the lug holes for cracks at each tire rotation
  • Keep brake dust off the inner barrel

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5161-7973
Series 61 Series
Style Split spoke
Construction Aluminum
Finish Satin black milled
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Center bore 72
Offset -6
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. It is a universal design, not built for a particular truck or Jeep model. A 5 on 5 hub with a 72 center bore is the match to confirm, followed by clearance for the -6 offset at the caliper and fender.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the hub for a 5-lug, 5 on 5 layout before ordering. The 72 center bore has to match the hub pilot so the wheel centers properly. Test-fit the rim with the tire to confirm the brake caliper and suspension have room.

What’s included

One 17×9 aluminum wheel. Lug nuts and a center cap are supplied separately.

SKU: PXA5161-7973 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp PXA5161-7973 use?

It uses a 5 on 5 bolt pattern with a center bore of 72. The offset is -6 and the backspacing is 4.75. Match the bolt pattern and bore to your hub before you buy.

Does this 61 Series wheel include lug nuts?

No, lug nuts and a center cap are not included. Confirm the hardware is in hand before mounting the wheel.

Is the PXA5161-7973 made for one vehicle?

No vehicle is named for it. Its universal fit label does not identify a truck or Jeep, so compare the 5 on 5 pattern, the 72 center bore and the -6 offset to your vehicle.

How should a satin black milled finish be cleaned?

Use a pH-neutral wheel cleaner and a soft brush. Avoid acid cleaners and abrasive pads, since they can dull the milled surface. Rinse thoroughly and dry the wheel to prevent water spots.

Does a split-spoke face affect brake clearance?

The spoke gaps show more of the brake parts but do not change the offset or clearance. Check caliper clearance with the tire mounted before driving, because the open face is not a measurement of room.
