Overview

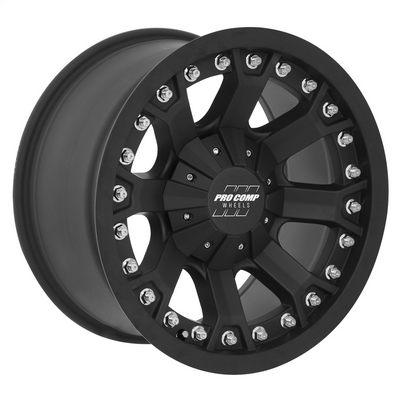

The Pro Comp 33 Series Grid 18×9 wheel with a 5 on 5.5 bolt pattern carries part number PXA7033-8926. It is an 18-inch spoke wheel, 9 inches wide, with a matte black finish. The wheel also carries a 5 on 150 pattern in addition to the primary 5 on 5.5.
The alloy line is low-pressure cast aluminum for performance trucks and sport utility vehicles. This model has a 114 center bore and a 0 offset. It is universal fit, so the 5 on 5.5 and 5 on 150 layouts should be checked against the vehicle before ordering.
Key features
- Low-pressure cast aluminum wheel
- 18 inches in diameter, 9 inches wide
- Primary bolt pattern 5 on 5.5, with 5 on 150 also listed
- Center bore 114
- Offset 0 and backspacing 5
- Matte black finish with a spoke design
Measuring hub and clearance
Start with the hub. Measure the lug count, the spacing between bolt holes, and the center bore, then confirm the wheel seats flush against the hub face. A wheel with two possible bolt patterns needs a careful check, since a mismatch can damage studs and seats. Keep a caliper and rotor measurement on hand so the clearance check can be done before the wheel goes on.
Next, consider the tire. An 18-inch wheel changes sidewall height and rolling diameter, which affects speedometer accuracy and the space around the fender. Rotate tires on schedule and check the spokes after rough driving, since small cracks near the spoke roots are easier to catch early.
- Confirm which bolt pattern the hub uses
- Measure caliper and rotor clearance
- Check spoke roots for cracks after rough driving
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7033-8926 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5.5 |
| Second bolt pattern | 5 on 150 |
| Center bore | 114 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Black, 33 Series flat black |
| Construction | Aluminum |
| Series | 33 Series Grid |
Vehicle fitment
This wheel is universal fit and is not matched to any make, model or year. Select it by the 5 on 5.5 bolt pattern and 114 center bore, and confirm the 0 offset clears the brake caliper. Verify which of the two bolt patterns the hub uses before mounting.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One 18×9 wheel in black is included. Check the package contents for center caps and lug nuts before starting the installation.
