Overview

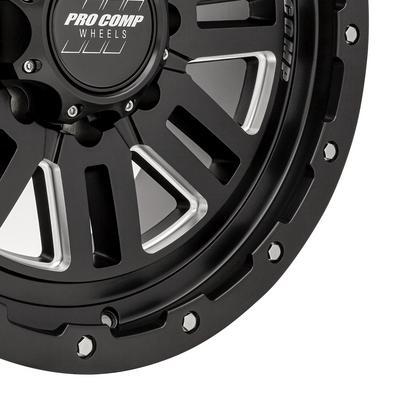

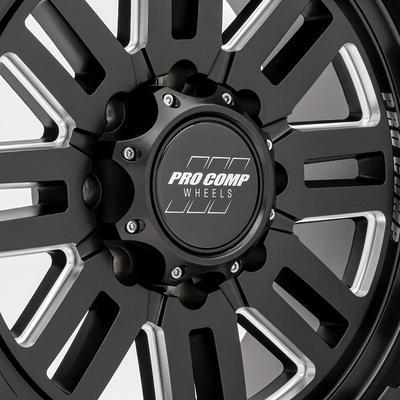

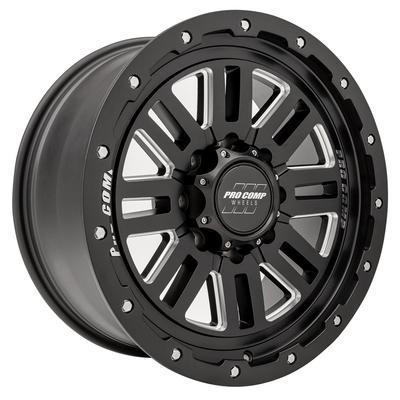

The Pro Comp PXA5161-897350 is an 18×9 aluminum split-spoke wheel from the Pro Comp 61 Series, in satin black milled with a 5 on 5 bolt pattern. It is a single wheel with a center bore of 72, a zero offset and a backspacing of 5.
Pro Comp says its alloy wheels are made with low-pressure casting and rated from 2500 to 3650 lbs per wheel. The 18-inch diameter and 9-inch width define this rim, and the zero offset places the mounting face at the wheel’s centerline rather than pushed out toward the fender.
Key features
- Low-pressure cast aluminum construction
- Split-spoke face style
- 18-inch diameter and 9-inch width
- 5 on 5 bolt pattern
- Center bore of 72
- Zero offset with 5 backspacing
Care for split-spoke finishes
Split-spoke faces have more gaps and edges than solid designs, so dirt and brake dust collect in the spaces between spokes. Rinse with water and a soft brush, then dry the face to keep the satin black milled surface even. Avoid harsh solvents, which can cloud the finish over time.
Inspect spokes after rough trail use or curb strikes. Look for cracks at the spoke roots, flat spots on the rim lip, and new vibration at speed, since these can mean the wheel needs replacing. Pair the wheel with new valve stems and tire hardware when remounting, because old rubber often wears out at the same time.
- Check the spoke roots for hairline cracks
- Re-torque lug nuts after the first drives
- Replace valve stems when remounting tires
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5161-897350 |
| Series | 61 Series |
| Style | Split spoke |
| Construction | Aluminum |
| Finish | Satin black milled |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | 0 |
| Backspacing | 5 |
| Load rating | 2500 to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
No vehicle is named for this wheel. It is a universal design and is not tied to a particular truck or Jeep. A 5 on 5 hub with a 72 center bore is required, and the zero offset needs a brake caliper clearance check.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This wheel only mounts to a 5-lug hub in a 5 on 5 layout. A test fit with the tire confirms clearance at the caliper, since the 5 backspacing sets how much room the rim has behind its mounting face. Confirm the tire’s diameter matches the 18-inch rim before mounting.
What’s included
One 18×9 aluminum wheel. Check the package contents against your installation before starting.
