Pro Comp 41 Series Phaser Wheel, 17x9 with 5 on 5 Bolt Pattern – Matte Bronze – 9641-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 41 Series Phaser 17×9, part number PXA9641-7973
  • 5 on 5 bolt pattern, offset -6
  • Matte bronze split spoke wheel
  • Backspacing 4.75, aluminum construction

Description

Overview

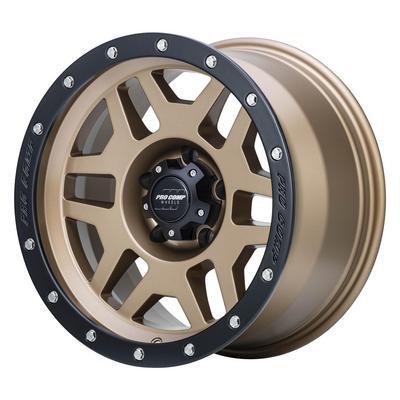

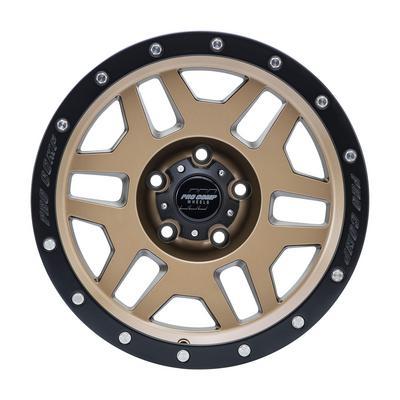

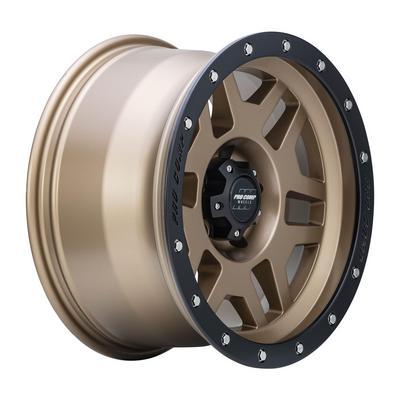

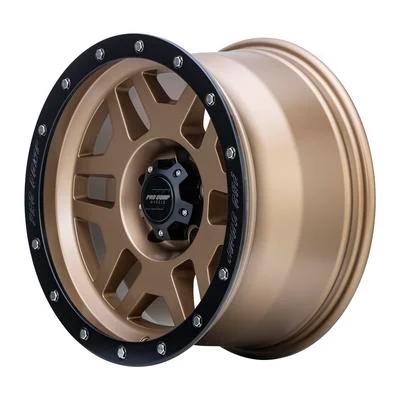

The Pro Comp 41 Series Phaser 17×9 wheel, part number PXA9641-7973, is a 17-inch aluminum split spoke wheel that is 9 inches wide. It has a 5 on 5 bolt pattern and a matte bronze finish, and it is built with low-pressure casting.

The wheel has an offset of -6 and a backspacing of 4.75, which place the mounting face outward. Measure the hub diameter before ordering, since the center bore has to match it. The wheel is universal fit with no vehicle tied to it.

Key features

  • Low-pressure cast aluminum
  • 17-inch diameter and 9-inch width
  • 5 on 5 bolt pattern
  • Offset -6 with backspacing 4.75
  • Split spoke design
  • Matte bronze finish

Measuring before you buy

Hub diameter is the measurement that decides whether a wheel seats properly. Take the measurement at the hub face, not the tire. Compare it with the center bore of the wheel. A bore that is too small will not fit; a bore that is larger can be closed with a hub-centric ring so the wheel centers on the hub.

A 5 on 5 bolt pattern is a common layout, but matching the number of studs is not enough. Confirm the stud length, lug seat style and thread pitch before mounting. The -6 offset also affects inner and outer clearance, so check the wheel against the brake caliper and fender after the first fitting.

  • Measure the hub diameter before ordering
  • Match lug seat style to the wheel
  • Check caliper and fender clearance once mounted

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA9641-7973
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 5 on 5
Offset -6
Backspacing 4.75
Style Split spoke
Finish Matte bronze
Construction Aluminum
Series 41 Series Phaser

Vehicle fitment

This 17×9 wheel has no vehicle list and is universal fit. The 5 on 5 hub is the main match to confirm, and the -6 offset should be checked against the brake caliper and fender.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the hub diameter by measurement before ordering, then check that the wheel seats correctly. Check the caliper and fender clearance once the wheel is on the hub.

What’s included

One 17×9 wheel in matte bronze comes in the package. Before starting, make sure you have any center caps or lug nuts the installation calls for.

SKU: PXA9641-7973 Categories: ,

Questions & Answers

What bolt pattern is the PXA9641-7973 Phaser?

It uses a 5 on 5 bolt pattern. The wheel is 17 inches in diameter and 9 inches wide, with an offset of -6 and a backspacing of 4.75.

Does this Phaser come with a listed center bore?

No center bore is given in the specification for this version. Measure your hub before choosing the wheel, and confirm it sits correctly.

Is the wheel matte bronze?

Yes. The finish is matte bronze and the construction is aluminum. The style is a split spoke design, and the series is the 41 Series Phaser.

What is a hub-centric ring and when is one used?

A hub-centric ring is a spacer that fills the gap when a wheel's center bore is larger than the vehicle hub. It helps the wheel center on the hub, so the lug nuts carry clamping load rather than the weight of the vehicle.
