Overview
The Pro Comp K3089BRH is a 4-inch Stage I lift kit with ES9000 front and rear shocks, made for right hand drive vehicles. The front uses coil springs with sway bar links and bump stop extensions, and the rear uses coil springs.
Brake line extension brackets are included so the brake lines reach the raised components. The kit is for 2-door and 4-door models, with a maximum tire size of 35×12.50.
Key features
- 4-inch lift height from a Stage I kit
- Right hand drive configuration

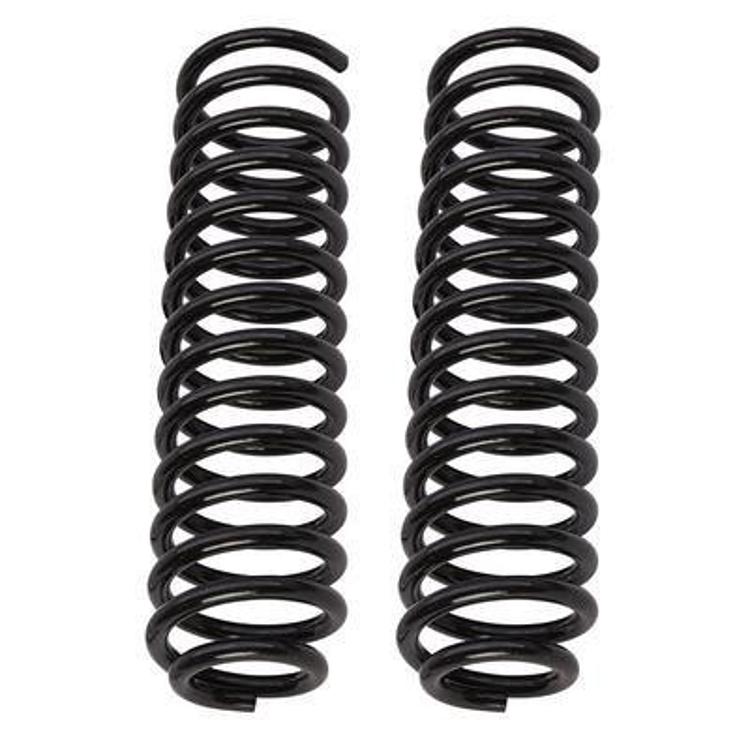

- Front coil springs

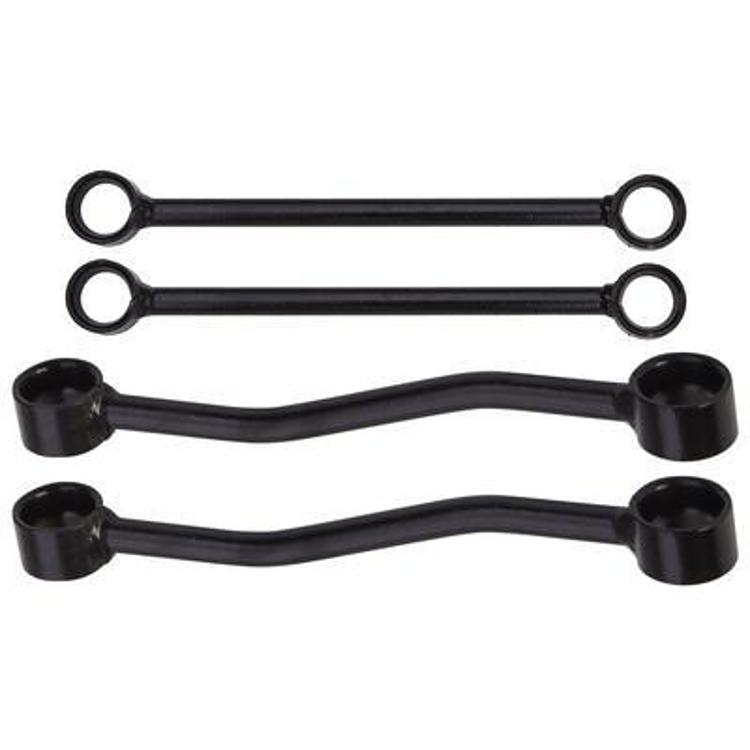

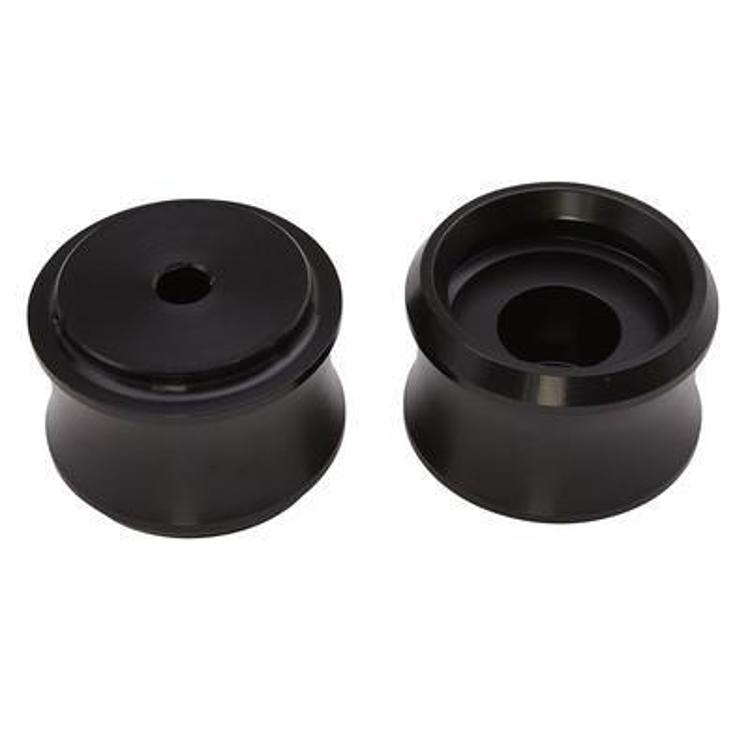

- Front sway bar links and bump stop extensions

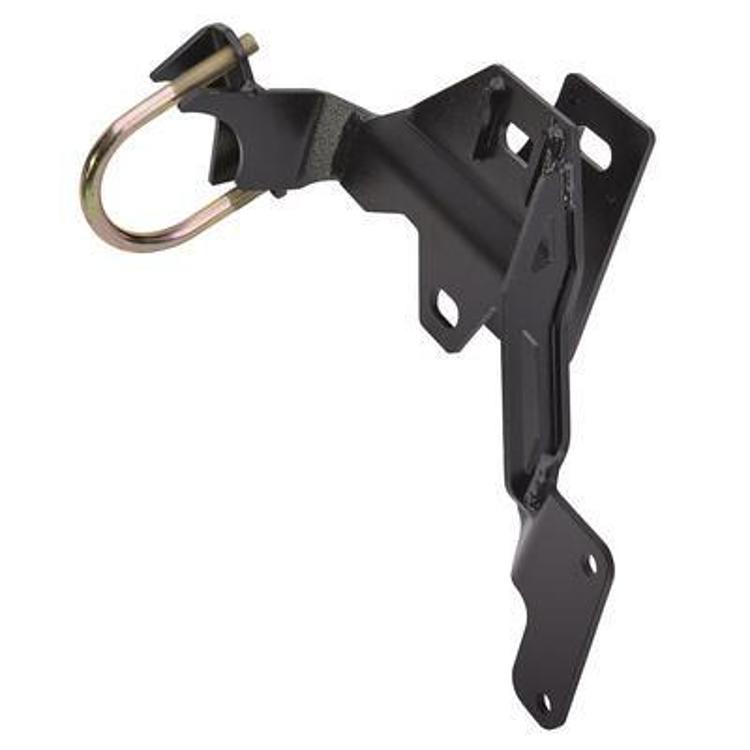

- Brake line extension brackets

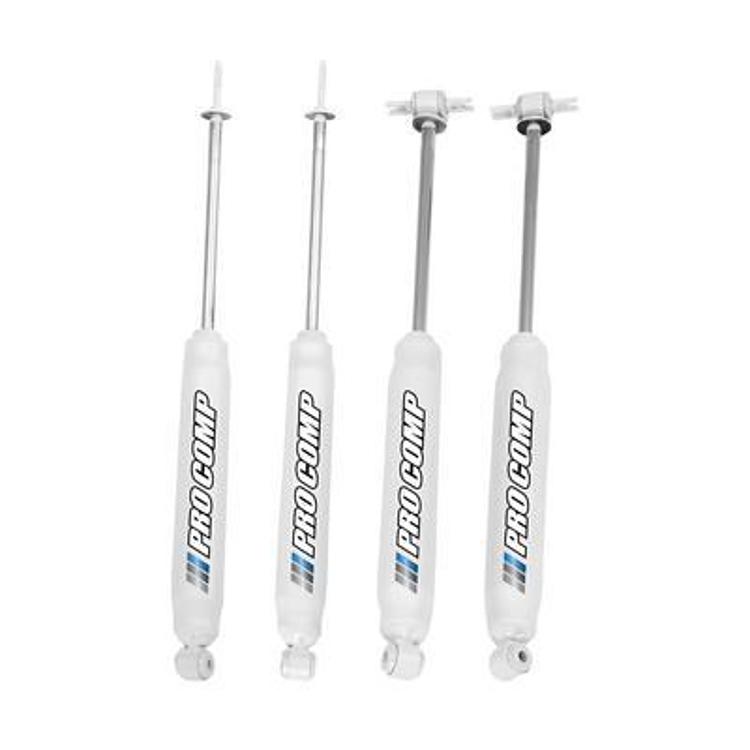

- Front and rear ES9000 shocks
Steering and brake checks
Right hand drive steering uses linkages and column components that differ from left hand drive designs, so front lift parts must suit that layout. A coil spring lift moves the lower control arms and steering geometry, which can change steering feel and centering. After installation, check the steering shaft, tie rods and drag link for play and alignment.
Brake lines and ABS wiring need a clear path through the new ride height. The included brackets help hold the line in place, but the hose should still be checked at full steering lock and full compression. Look for kinks, rub marks or tension, and replace any hose that is worn.
- Check steering play after the lift
- Inspect brake hoses at full lock
- Recheck tire clearance at maximum size
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3089BRH |
| UPC | 614901205060 |
| Lift height | 4 inch |
| Lift kit stage | Stage 1 |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Shocks | ES9000 front and rear |
| Maximum tire size | 35×12.50 |
| Body style | 2-door and 4-door models |
Vehicle fitment
It is made for right hand drive vehicles in 2-door and 4-door body styles. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering, and confirm it is a right hand drive truck in one of the body styles listed.
Installation notes
Brake line extension brackets are part of the kit, so check the brake hose clearance at full suspension travel after installation, and have the alignment checked.
What’s included

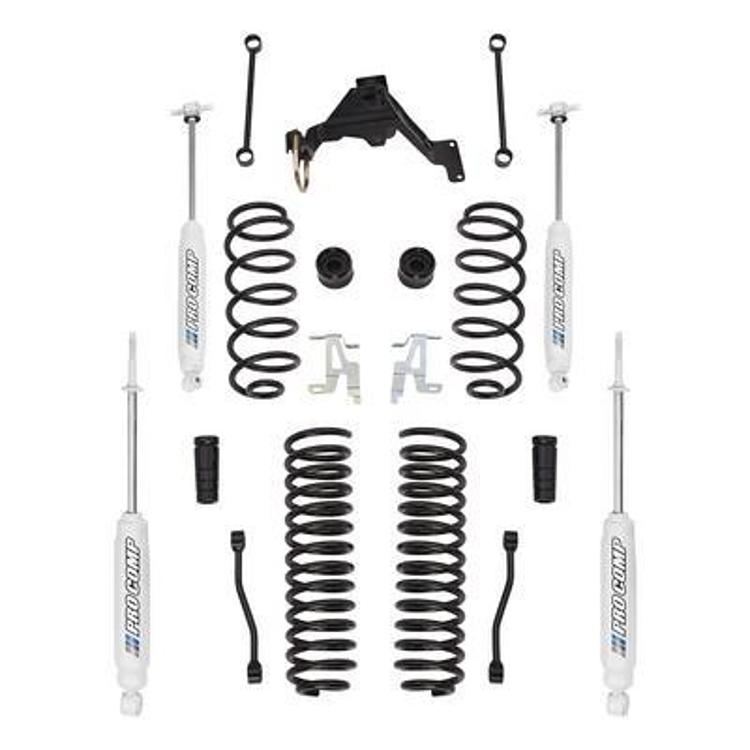

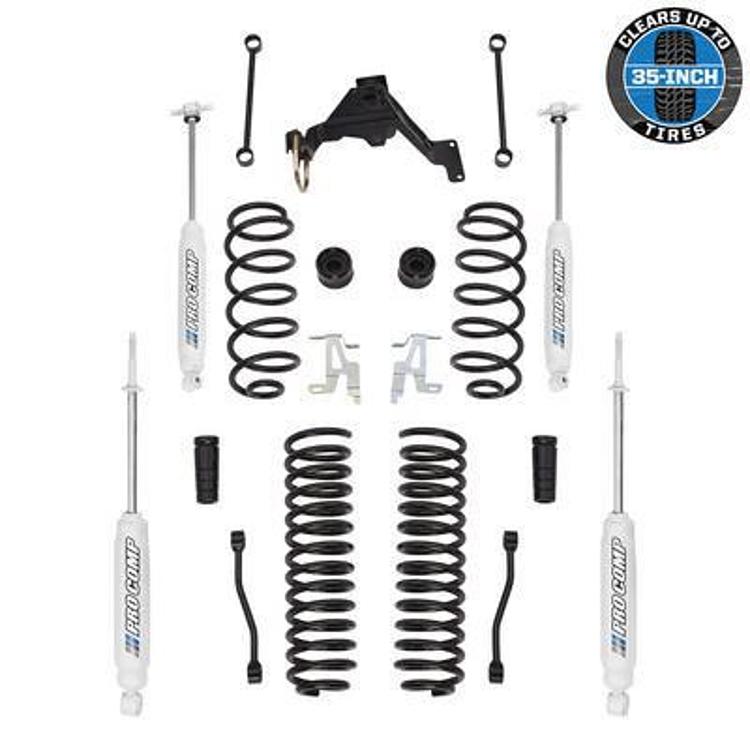

The kit includes front coil springs, front sway bar links, bump stop extensions, brake line extension brackets, rear coil springs, and front and rear ES9000 shocks.
