Pro Comp 6″ Stage 1 Lift Kit with PRO-X Shocks – K4189T

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift with PRO-X front and rear shocks for 2015–2020 Ford F-150 pickups
  • One-piece drop down crossmembers and high-strength extended steering knuckles
  • Block and U-bolt rear lift; lift height range 6–7 inches
  • Compatible with factory stability control.

Description

Overview

The Pro Comp K4189T is a 6-inch stage 1 lift kit with PRO-X front and rear shocks for the 2015–2020 Ford F-150. The lift height range is 6 to 7 inches, the shocks are included, and the rear uses a block and U-bolt lift.

The kit’s front end is built around one-piece drop down crossmembers and high-strength, extended steering knuckles. Pro Comp says these parts keep the steering geometry and factory CV axle angles in place, and that the kit is compatible with the factory stability control system and can fit 35-inch tires.

Key features

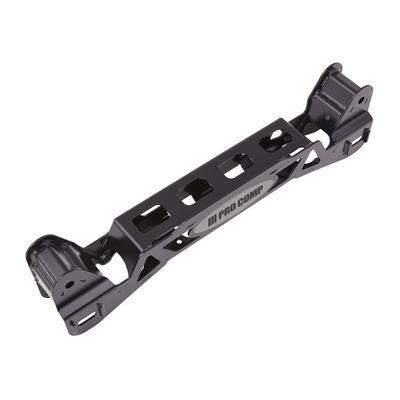

  • One-piece drop down crossmembers

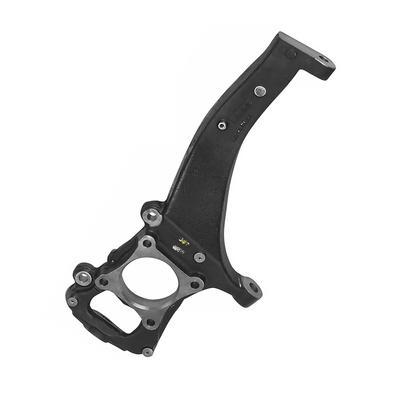

  • High-strength, extended steering knuckles
  • Steering geometry and factory CV axle angles maintained.
  • Compatible with the factory stability control system.

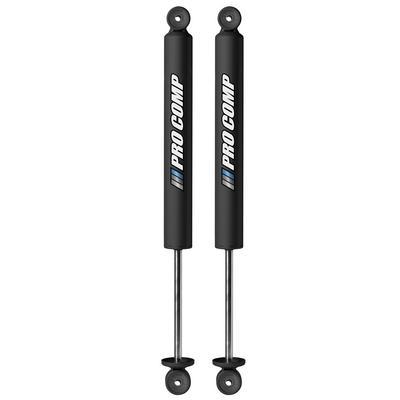

  • PRO-X front and rear shocks, included

Choosing the right setup

On a half-ton, a front lift and a rear block lift change the axle angles and steering geometry together, so the two sides of the kit work best when installed as a set. Drop crossmembers and extended knuckles move the front components, which is why CV axle angles and alignment need attention after the install. Pick wheels and tires with the lift in mind, because offset and tire diameter both affect rubbing and steering feel.

Heavier loads and towing add stress to the rear block and U-bolts, so re-check U-bolt torque after the first few trips. Stability control systems read wheel speed and steering angle, so any change in tire size should be matched across all four corners.

  • Check CV axle angles at the first alignment
  • Look for rubbing at full steering lock
  • Replace worn ball joints and tie rod ends while the front is open

Specifications

Brand Pro Comp Suspension
Part number K4189T
Suspension type Lift kit, 6-inch stage 1
Lift height 6 inches, listed range 6–7 inches
Front shocks PRO-X
Rear shocks PRO-X, included
Rear lift method Block/spacer with block and U-bolt
Tire clearance 35-inch tires

Vehicle fitment

It fits the 2015–2020 Ford F-150 in the King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL and XLT versions.

It covers the 2015 through 2020 F-150 only. Check your truck’s year, model and trim before ordering.

Installation notes

Because the kit includes new front crossmembers and steering knuckles, the alignment and CV axle angles should be checked afterward. Recheck the driveline angles at the same time, since the block lift changes the ride height at the rear.

What’s included

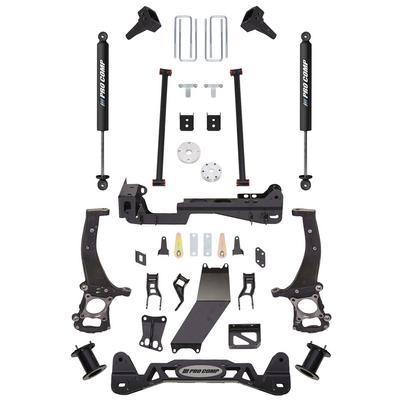

The one-piece drop down crossmembers, the extended steering knuckles, PRO-X front and rear shocks, and the rear block and U-bolt lift components.

SKU: EXPK4189T Categories: ,

Fitment

VehicleYearsTrims
Ford F-1502015–2020King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K4189T fit a 2020 Ford F-150 Lariat?

Yes. The 2015–2020 Ford F-150 is in the listed fitment, and the Lariat is one of the versions named. Compare the year and version on your truck with the list first.

Does the K4189T fit a 2021 Ford F-150?

No. The fitment covers the 2015 through 2020 F-150 only, so 2021 and newer trucks are not included. Check your truck's year, model and trim before ordering.

Does the K4189T work with 35-inch tires?

Yes. The kit can fit 35-inch tires. Check the tire diameter and clearance on your own truck with the wheels you plan to run before buying.

What should be checked after a lift on a Ford F-150?

Start with alignment and CV axle angles, since the front components change. Check the rear U-bolts and block hardware, look for rubbing at full lock, and confirm brake hoses and sensor wires have enough length. Recheck torque on all fasteners after the first few drives.
