Pro Comp 8.5″ Lift Kit with PRO-X Shocks – K4026T

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 1999–2004 Ford F-250 and F-350 Super Duty.
  • 8.5-inch Stage I lift, lift height range 8 inches and up
  • Block and spacer rear lift with block and U-bolt components

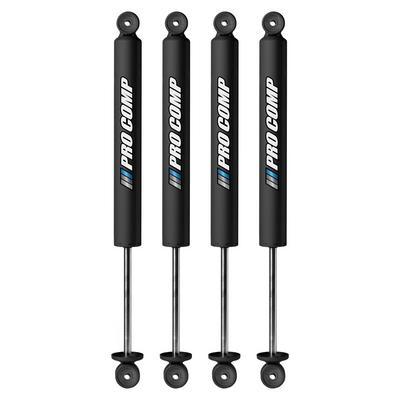

  • PRO-X front and rear shocks, included
  • Part number EXPK4026T (K4026T)

Description

Overview

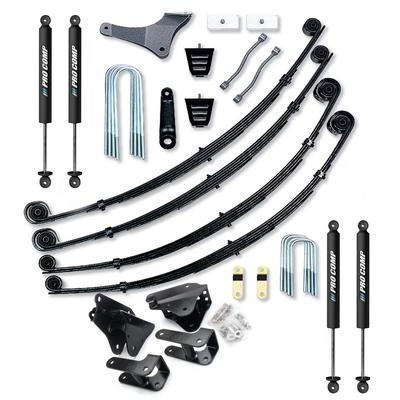

The Pro Comp EXPK4026T, also written K4026T, is an 8.5-inch suspension lift kit with PRO-X front and rear shocks for the 1999–2004 Ford F-250 and F-350 Super Duty. It uses a block and spacer at the rear and is a direct fit for both trucks.

It is a Stage 1 kit with an 8.5-inch lift and a lift height range of 8 inches and up. It suits owners of these older Super Duty trucks who want more height and tire clearance than a smaller kit gives.

The rear lift component is a block and U-bolt, which is a simpler rear arrangement than a full leaf pack change.

Key features

  • 8.5-inch Stage I lift with a lift height range of 8 inches and up
  • Block and spacer rear lift
  • PRO-X front and rear shocks, included
  • Direct fit to the listed 1999–2004 Super Duty trucks

Driveline and shock length

A lift of this height changes the angle between the transmission and the axle, which can add vibration and wear to the U-joints if the driveshaft is left as it was. A block and spacer at the rear moves the axle upward while the leaf springs stay in place, so the pinion angle and driveshaft length should be measured once the lift is set. Many owners inspect the brake lines and sway bar links at the same time, because both are stretched or loaded differently at greater height.

Shock length is the other part of the job. Longer shocks keep the suspension working through its full travel and reduce the chance of bottoming out on rough ground. Before the install, check the ball joints, tie rod ends and bushings for play, since worn steering parts show up quickly once the truck sits higher.

  • Measure driveline angles before and after the install
  • Inspect brake lines and sway bar links
  • Re-torque U-bolts after the first trail runs

Specifications

Brand Pro Comp Suspension
Part number EXPK4026T (K4026T)
Kit type Lift kit, complete suspension system
Kit stage Stage 1
Lift height 8.5 inches; lift height range 8 inches and up
Rear lift method Block and spacer
Rear lift component Block and U-bolt
Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

It fits the 1999–2004 Ford F-250 Super Duty and 1999–2004 Ford F-350 Super Duty in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims.

The 2005 and newer Super Duty trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8.5-inch lift is a large change to driveline geometry. Check the driveline angles, the pinion angle and the alignment after the install.

What’s included

PRO-X front and rear shocks come with the kit. Check the package contents against your installation before starting.

SKU: EXPK4026T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK4026T fit a 2000 Ford F-350 Super Duty?

Yes. The kit fits the 1999–2004 Ford F-350 Super Duty, which covers 2000 trucks in the Harley-Davidson Edition, King Ranch, Lariat, XL and XLT trims. Confirm fit for your vehicle's year, model and trim before ordering.

How tall is the lift on this kit?

The specifications give an 8.5-inch lift, with a lift height range of 8 inches and up. Both figures are listed in the specifications.

What rear lift does it use?

The rear uses a block and spacer with a U-bolt. The kit is a Stage 1 system that also includes PRO-X front and rear shocks.

How often should the U-bolts and spacer hardware be checked?

Check them after the first few drives, then at regular intervals. Re-torque anything that has loosened and look for cracks or wear around the block and shock mounts.

Does a lift this size affect braking?

It can, because greater height can stretch brake lines and change how hoses sit. Inspect them after installation and test the pedal feel at low speed before normal use.
