Pro Comp 6″ Stage 1 Lift Kit with PRO-X Shocks – K5156T

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stage 1 6-inch lift kit for the 2015 to 2024 Toyota 4Runner
  • Includes PRO-X shocks, longer rear coils and extended rear axle links
  • Extended nodular iron steering knuckles and one-piece lower cross members
  • Reinforced bump stop extensions for full suspension travel

Description

Overview

The Pro Comp K5156T is a 6-inch Stage 1 lift kit with PRO-X shocks for the 2015 to 2024 Toyota 4Runner. Pro Comp designed it to raise the 4Runner’s stance while keeping the factory steering and driveline geometry in place.

Reinforced bump stop extensions allow the full range of compression and extension travel without binding the ball joints. Longer rear coils with spring rates Pro Comp describes as ideal for the lift, custom valved shocks and extended rear axle links complete the system, which the company says supports the 4Runner’s durability.

Key features

  • 6-inch lift height in a Stage 1 kit
  • Reinforced bump stop extensions that allow full travel without binding ball joints

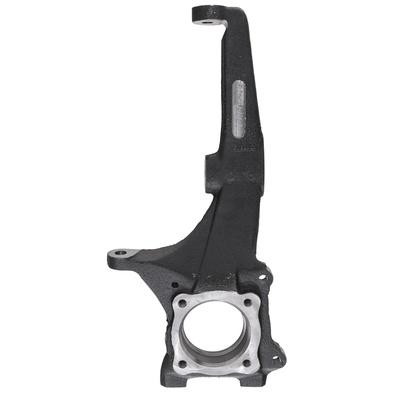

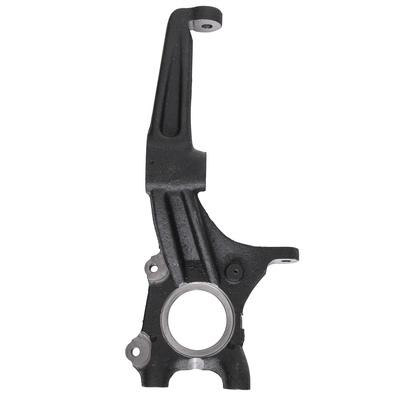

  • Extended nodular iron steering knuckles

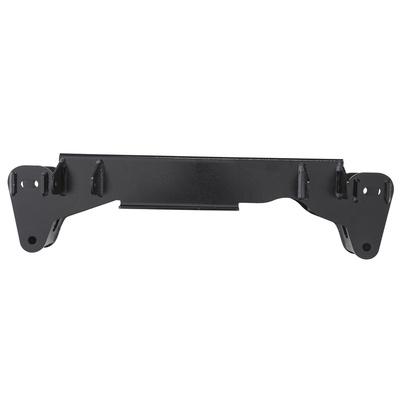

  • One-piece lower cross members that Pro Comp describes as rock proof
  • Longer rear coils and custom valved shocks
  • Extended rear axle links

Tire size and clearance

Tire clearance is one of the main reasons owners lift a 4Runner, and it depends on tire diameter, width and wheel offset as well as the lift itself. Before buying tires, check how the new height changes fender and inner liner clearance, and plan for trimming or spacers where needed. Compare the planned tire with the lift height rather than assuming any size will fit.

The 4Runner’s steering, driveline and brake lines all sit close to the suspension, so tire changes affect more than fender room. Larger tires add rotational weight and change how the drivetrain feels, so the speedometer and driveline should be checked after installation. Inspect steering stops and brake lines at full lock.

  • Check tire diameter against the planned lift
  • Look for rub points at full steering lock
  • Verify the speedometer after changing tire size

Specifications

Brand Pro Comp Suspension
Part number K5156T
Lift height 6 inches
Kit type Stage 1 lift kit
Shocks PRO-X, custom valved
Steering knuckles Extended nodular iron
Lower cross members One-piece
Rear coils Longer, with spring rates for the lift

Vehicle fitment

It fits the 2015 to 2024 Toyota 4Runner across its trim levels.

It does not cover 4Runner model years before 2015 or other Toyota models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 6-inch lift changes ride height and suspension geometry, so have the wheel alignment and the driveline angles checked after installation. The extended steering knuckles and lower cross members are there to keep the steering rack and front differential in place, but the alignment still needs to be set on the new height.

What’s included

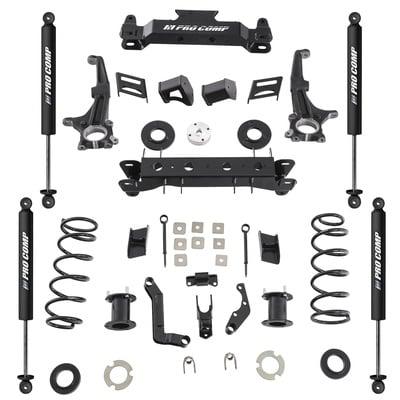

The kit includes the PRO-X shocks, extended steering knuckles, one-piece lower cross members, longer rear coils, reinforced bump stop extensions and extended rear axle links.

SKU: EXPK5156T Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2015–2024Limited, Nightshade, SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro, TRD Sport, Trail, Venture

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K5156T fit a 2015 Toyota 4Runner?

Yes. It fits the 2015 to 2024 Toyota 4Runner across its trim levels. Confirm your year, model and trim before ordering, since the fit begins at 2015.

How much lift does the K5156T give?

It is a 6-inch Stage 1 lift kit with PRO-X shocks and longer rear coils. Compare the lift height with the tire size you plan to run, because tire clearance depends on both.

Does the kit change steering or axle angles?

The extended steering knuckles and one-piece lower cross members keep the steering rack, front differential and factory CV axle angles in their proper location. Alignment is still needed after installation.

Does the kit include shocks?

Yes. The kit comes with PRO-X shocks, which Pro Comp says are custom valved for the lift. They are part of the complete system with the longer rear coils and extended rear axle links described above.

Should the rear axle links be checked after a lift?

Yes. Extended rear axle links change axle location, so inspect the bushings and mounting hardware at regular service. Confirm driveline angles and alignment after installation to keep the rear end running smoothly.
