  • 4-inch stage 1 coil spring and short arm lift with tubular lower control arms
  • Front coil springs, rear coil springs and front sway bar links
  • ES3000 front and rear shocks
  • Max tire size 33×12.50 with wheels listed at 15 inches

Description

Overview

The Pro Comp K3084B is a 4-inch stage 1 coil spring and short arm lift with ES3000 shocks at the front and the rear. Its lift height range is 3 to 4.99 inches, and coil springs are used at both ends.

The front end uses tubular lower control arms, front sway bar links and bump stop extensions. The rear uses coil springs in a short arm layout.

Key features

  • 4-inch stage 1 lift
  • Tubular lower control arms
  • Front coil springs and rear coil springs
  • Front sway bar links
  • Bump stop extensions
  • ES3000 front and rear shocks

Clearance and tire choice

Coil spring lifts raise both ends of the truck, but the height at each corner still depends on the tires, wheel offset and the bump stops. A 33×12.50 tire is a large size, so check clearance at full lock and at full compression before driving on trails. Fender trimming or a wheel with different backspace may be needed on some trucks.

Tubular lower control arms and short arm geometry work as a system. When arms are changed, the alignment should follow, and the sway bar links should be checked for correct length. Bump stop extensions help control travel, but inspect them for cracking after rough runs.

After the first few drives, re-check the shock mount bolts, the arm bolts and the sway bar link ends. Listen for knocks over bumps, which often point to loose hardware rather than a faulty part.

Specifications

Brand Pro Comp Suspension
Part number K3084B
UPC 614901123371
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Coil spring and short arm
Front lift Coil springs
Rear lift Coil springs
Front shocks ES3000
Rear shocks ES3000
Max tire size 33×12.50
Wheel size 15 inches

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Compare the 15-inch wheel size and 33×12.50 tire size with your truck before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Tubular lower control arms and coil springs change the front and rear heights together, so the alignment and the steering geometry should be checked after installation. Confirm the bump stop extensions clear the frame at full travel.

What’s included

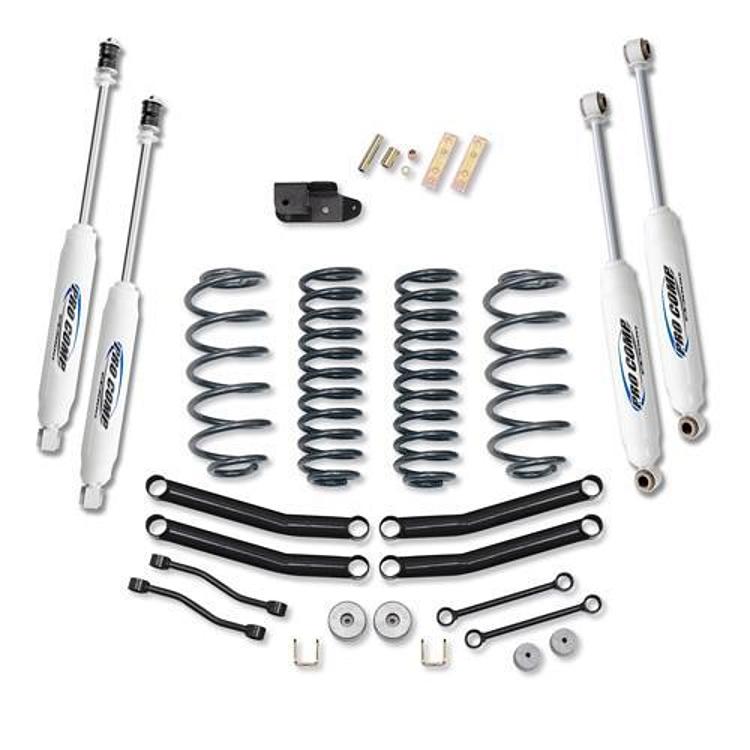

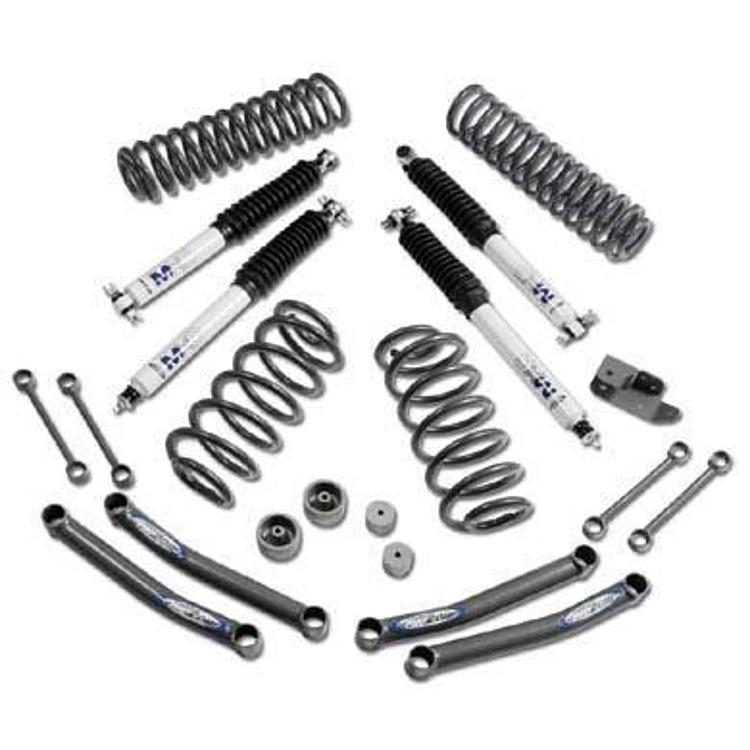

The kit includes front coil springs, rear coil springs, tubular lower control arms, front sway bar links, bump stop extensions and ES3000 front and rear shocks.

SKU: EXPK3084B Category:

Specification

Shipping weight 122.80 lbs
Package dimensions 48.00 × 48.00 × 48.00 in
brands

Questions & Answers

Which vehicles does the K3084B fit?

Confirm fit for your vehicle's year, model and trim before ordering. Check the tire and wheel sizes against your truck before buying, since clearance varies by vehicle.

Does the K3084B use tubular control arms?

Yes. The kit includes tubular lower control arms at the front, along with front sway bar links and bump stop extensions.

Are shocks included with the K3084B?

Yes. ES3000 shocks are supplied at the front and the rear as part of the coil spring lift. Check shock length against your suspension geometry before installing.

Does a coil spring lift need bump stop changes?

Often yes. Coil spring lifts change the travel available before the bump stops engage, so extensions help control it. Check that they clear the frame at full travel and inspect them for cracks after hard use.
