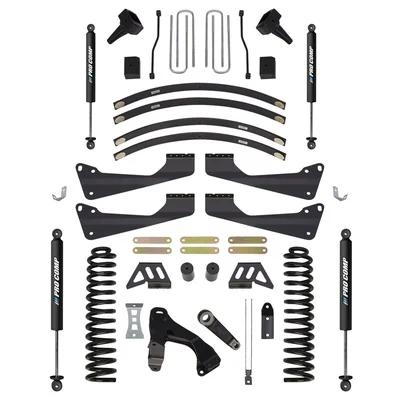

Pro Comp 8″ Stage I Lift Kit with PRO-X Shocks – K4183T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2011–2016 Ford F-250 and F-350 Super Duty.
  • 8-inch Stage I lift, lift height range 8 inches and up
  • Add-A-Leaf rear lift with a block and U-bolt component

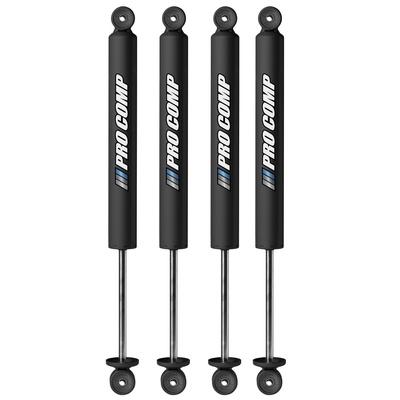

  • PRO-X shocks, included
  • Part number EXPK4183T (K4183T)

Description

Overview

The Pro Comp EXPK4183T, also written K4183T, is an 8-inch Stage I suspension lift kit with PRO-X shocks for the 2011–2016 Ford F-250 and F-350 Super Duty. The rear lift method is Add-A-Leaf, and the kit is a direct fit for both trucks.

An Add-A-Leaf adds a leaf to the rear spring pack. This kit uses a block and U-bolt with add-a-leafs as its rear lift component. The lift height is 8 inches, with a range of 8 inches and up.

Pro Comp’s general description also covers the 2011-and-newer Super Duty F-250 systems: laser-cut brackets, a drop pitman arm and specific-rate coil springs. Those details belong to Pro Comp’s larger Stage II systems, not to this Stage I kit.

Key features

  • 8-inch Stage I lift with a lift height range of 8 inches and up
  • Add-A-Leaf rear lift method
  • PRO-X shocks, included
  • Direct fit to the listed 2011–2016 F-250 and F-350 Super Duty

Leaf spring lift considerations

An Add-A-Leaf lift works by changing the rear spring pack rather than replacing the springs. The added leaf raises the rear of the truck, but it also makes the spring stiffer, which can change how the rear feels when the bed is empty. Owners who tow or haul regularly should consider how the rear rate suits their loads. The leaf spring center bolt, clamps and U-bolts should be inspected because they carry the new leaf and the axle movement.

Because the rear sits higher, check the rear shock length against the new ride height. Shocks that are too short can bottom out, and worn shocks will not control the spring as well as they should. Bump stops, shackles and bushings are often inspected at the same time. Brake lines and the parking brake cable should be checked for stretch once the axle has been raised.

  • Inspect U-bolts and the spring center bolt after the first few drives
  • Check the pinion angle and driveline with the new ride height
  • Confirm shock length suits the lifted rear end

Specifications

Brand Pro Comp Suspension
Part number EXPK4183T (K4183T)
Kit type Lift kit, complete suspension system
Kit stage Stage 1
Lift height 8 inches; lift height range 8 inches and up
Rear lift method Add-A-Leaf
Rear lift component Block and U-bolt with add-a-leafs
Shock series PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

It fits the 2011–2016 Ford F-250 Super Duty, in the King Ranch, Lariat, Platinum, XL and XLT trims, and the 2011–2016 Ford F-350 Super Duty in the same trim groups.

The 2008–2010 and 2017 and newer Super Duty trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Adding a leaf to the rear pack changes the rear spring rate and the pinion angle. Check the pinion angle and the driveline after installation.

What’s included

It includes PRO-X shocks and the Add-A-Leaf rear components. Confirm the full package contents before starting the installation.

SKU: EXPK4183T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT
Ford F-350 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is an Add-A-Leaf lift?

An Add-A-Leaf lift adds an extra leaf to the rear leaf spring pack, which raises the rear of the truck without replacing the whole spring. This kit uses it for the 8-inch Stage I lift.

Will this kit fit a 2016 Ford F-350 Super Duty?

Yes. The 2011–2016 Ford F-350 Super Duty is covered, including 2016 trucks in the King Ranch, Lariat, Platinum, XL and XLT trims. Confirm the trim on your truck before ordering.

Does this kit include shocks?

Yes. The kit includes PRO-X shocks as part of the Stage I package, along with the Add-A-Leaf rear components. Check the package contents against your installation before starting.

How do I know if the rear springs need attention after a lift?

Look for a sagging or uneven rear end, cracked leaves, and a shifting leaf pack. Clunking over bumps can also point to worn bushings or loose clamps. Inspect the spring pack at routine service and replace any leaves that show damage.
