Overview
The Pro Comp K3054 is a 1.5 inch stage 1 spacer lift kit with ES3000 front and rear shocks for the 1997–2006 Jeep Wrangler TJ and the 2004–2006 Wrangler Unlimited LJ.
The kit lifts the front and rear with coil spring spacers and includes ES3000 shocks front and rear. It is built around customer-driven, racing influenced engineering. Wheels should be 15 inch or larger, 7-8 inch wide, with backspacing of 3.25-4.5. Check those figures against your wheels before ordering.
Key features
- 1.5 inch stage 1 lift
- Front lift from coil spring spacers
- Rear lift from spacers
- ES3000 shocks included, front and rear
- Wheel size range: 15 inch or larger
- Wheel width range: 7-8 inch
- Backspacing range: 3.25-4.5
- Direct fit
Spacer lifts and wheel fit
A spacer lift raises the body by adding material between the suspension and its mounting points rather than replacing the control arms. Coil spring spacers keep the factory springs in service, so the ride stays close to the original feel. Once the body is raised, shock length matters, which is why shocks are often replaced at the same time as the spacers.
Wheel and tire choice follows the lift. Larger tires add rotating weight and can rub at full compression, so check clearance at both lock-to-lock and full droop. Backspacing, wheel width and offset all influence how close the tire sits to the fender and frame.
Over time, worn bushings and leaking shocks show up as a bouncy ride or uneven tire wear. Inspect those parts before adding a lift, since they affect how the new height handles.
- Check brake hose length after lifting
- Inspect bump stops for cracking
- Re-torque fasteners after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3054 (also shown as EXPK3054) |
| UPC | 614901122961 |
| Product type | Lift kit |
| Lift height | 1.5 inches, stage 1 |
| Suspension type | Spacer |
| Front lift | Coil spring spacers |
| Rear lift | Coil spring spacers |
| Shocks included | Yes, ES3000 front and rear |
| Wheel size range | 15 inch or larger |
| Wheel width range | 7-8 inch |
| Backspacing range | 3.25-4.5 (listed without a unit) |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list for the Pro Comp K3054 covers these vehicles: 2004–2006 Jeep Wrangler (LJ) (Unlimited, Unlimited Rubicon); 1997–2006 Jeep Wrangler (TJ) (65th Anniversary Edition, Rubicon, SE, Sahara, Sport, X).
It is for 1997–2006 Jeep Wrangler TJ models and 2004–2006 Wrangler LJ models, including Unlimited and Unlimited Rubicon. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Suspension components affect handling and braking, so professional installation is recommended. Torque every fastener to its specification.
- Have the alignment checked after any suspension work.
- Check tire clearance and brake hose and wiring length through the full range of travel.
- Re-check fasteners after the first miles of driving.
- Check your local regulations on suspension height changes.
- Wheels should be 15 inch or larger, 7-8 inch wide, with backspacing of 3.25-4.5 for this kit.

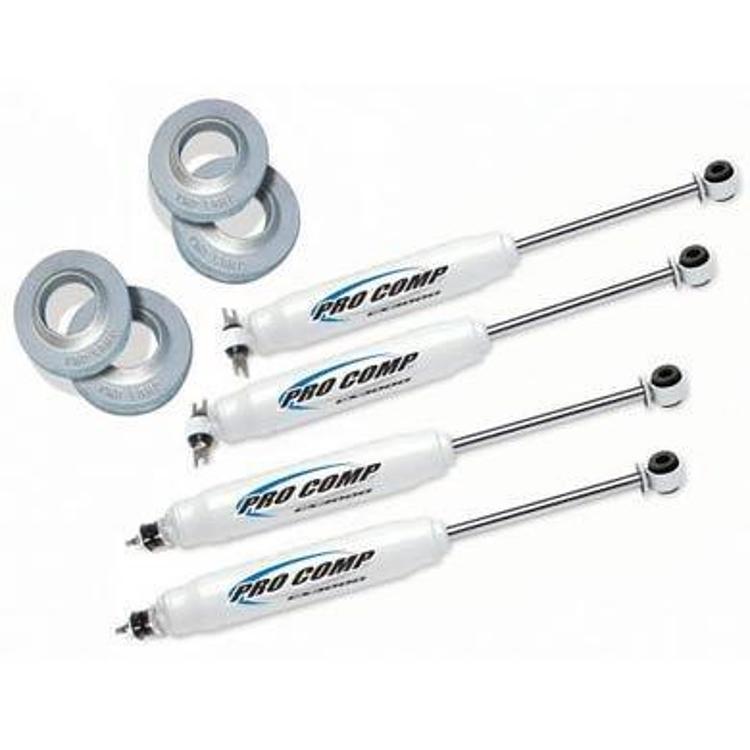

What’s included
- Coil spring spacers for the front and rear
- ES3000 shocks, front and rear
Not included: Wheels are not included with the kit. Check the package contents against your installation before starting.
