Overview
The Pro Comp K5081B is a 3-inch lift kit with front ES6000 spring seat shocks and rear ES9000 shocks, built for 4WD and 2WD PreRunner models. The front uses coil springs, and the rear uses lift blocks with U-bolts.
No steering correction is needed for this kit. Sway bar brackets come with the kit. The lift height is 3 inches, within a range of 3 to 4.99 inches.
Key features
- 3-inch lift height
- Front coil springs
- Front ES6000 spring seat shocks
- Rear lift blocks and U-bolts
- Sway bar brackets
- No steering correction required

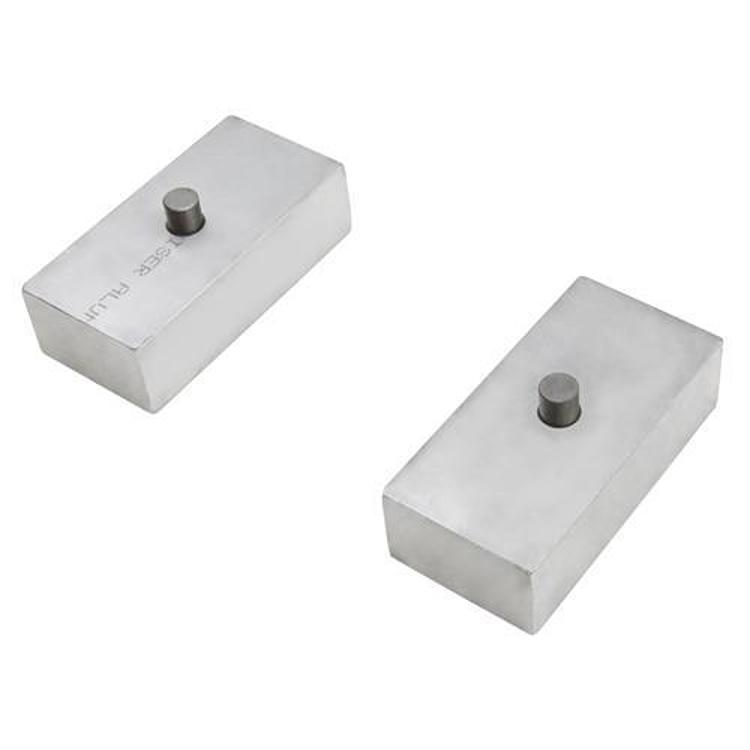

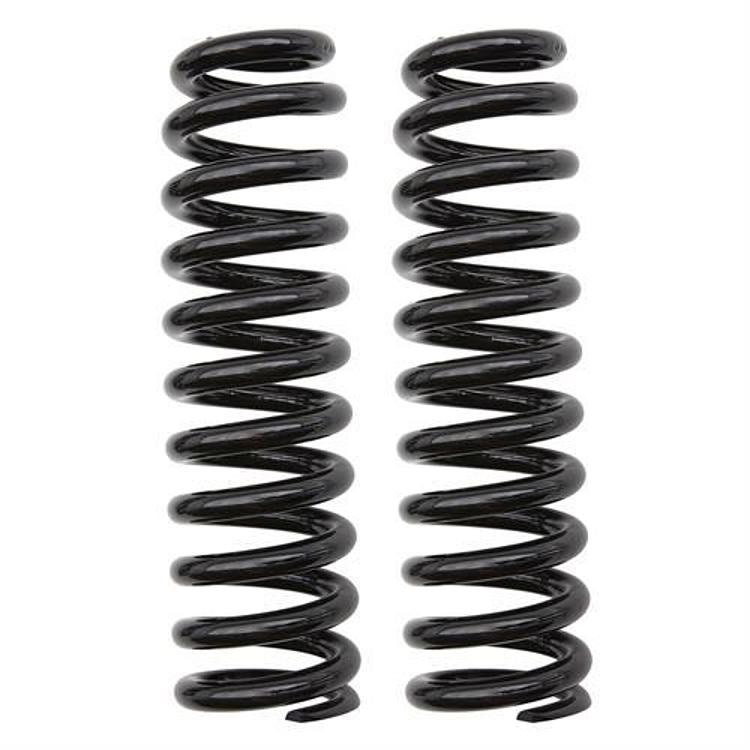

Coil springs and lift blocks
Coil springs at the front carry the truck’s weight differently than a stock torsion setup, and the ES6000 spring seat shock is designed to work with that arrangement. Lift blocks at the rear raise the axle, which changes the shock angle and how the sway bar links sit. Check the fit of the links once the lift is installed.
Ride quality often changes with a coil spring lift. Expect a slightly different response on rough pavement, and watch the front end for drift or bump steer after the first few drives. Replace worn bushings and tie rod ends at the same time so the new geometry works as planned.
- Check sway bar link length and bushings
- Inspect U-bolts for tightness after initial use
- Confirm shock clearance at full travel
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5081B |
| UPC | 614901034417 |
| Lift height | 3 inch (lift height range 3 to 4.99 inches) |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Steering correction | None required |

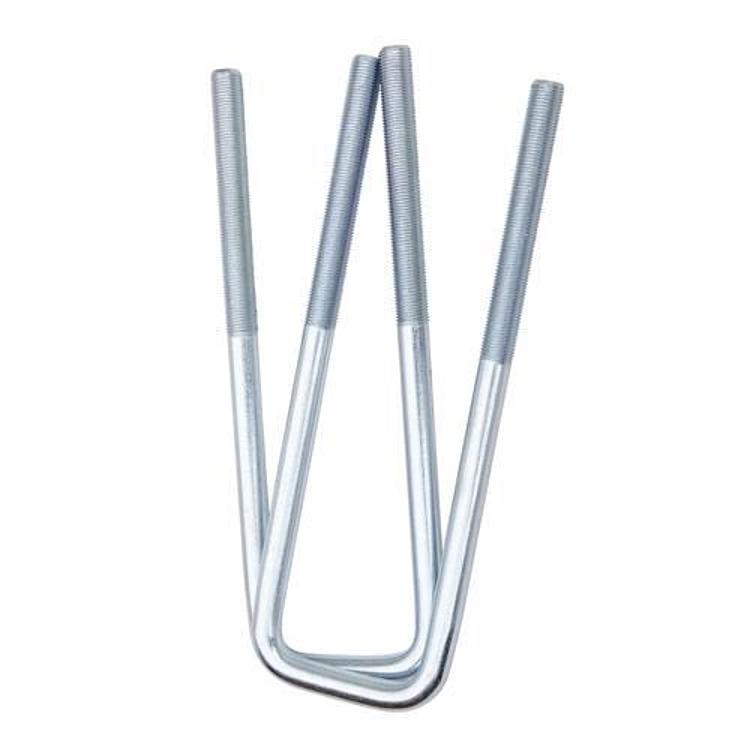

| Rear lift | Lift blocks and U-bolts |

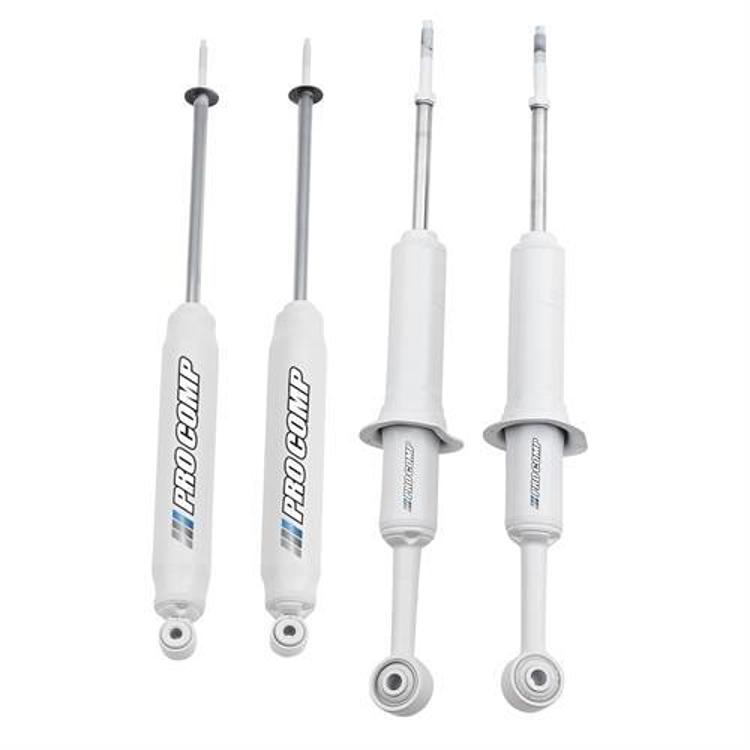

| Front shocks | ES6000 spring seat |
| Rear shocks | ES9000 |
Vehicle fitment
The kit is designed for 4WD and 2WD PreRunner models. Verify year, model and trim against your truck before ordering.
Because no model years are listed, do not assume coverage from the PreRunner name alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 3-inch coil spring lift with lift blocks changes the rear and front ride height, so check the alignment and the brake lines after installation.

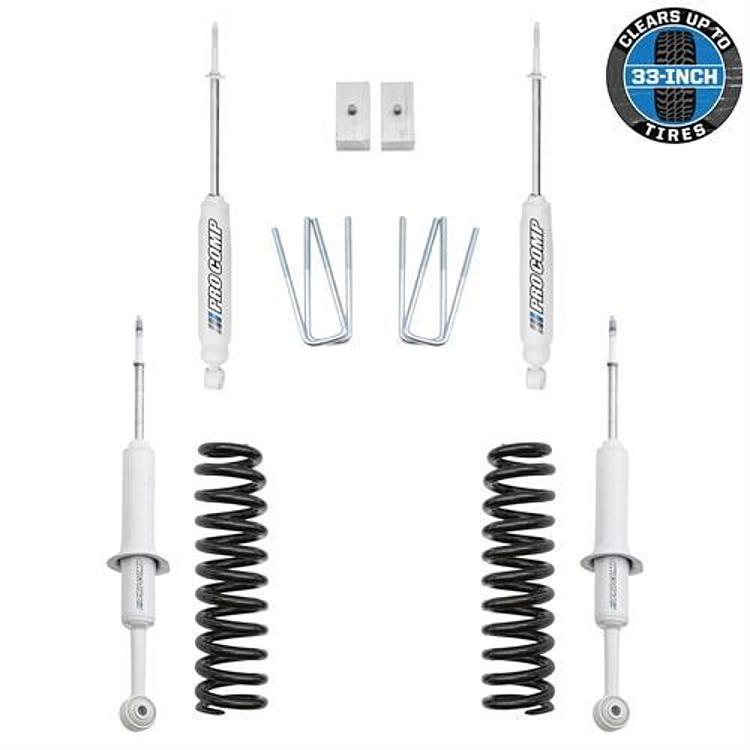

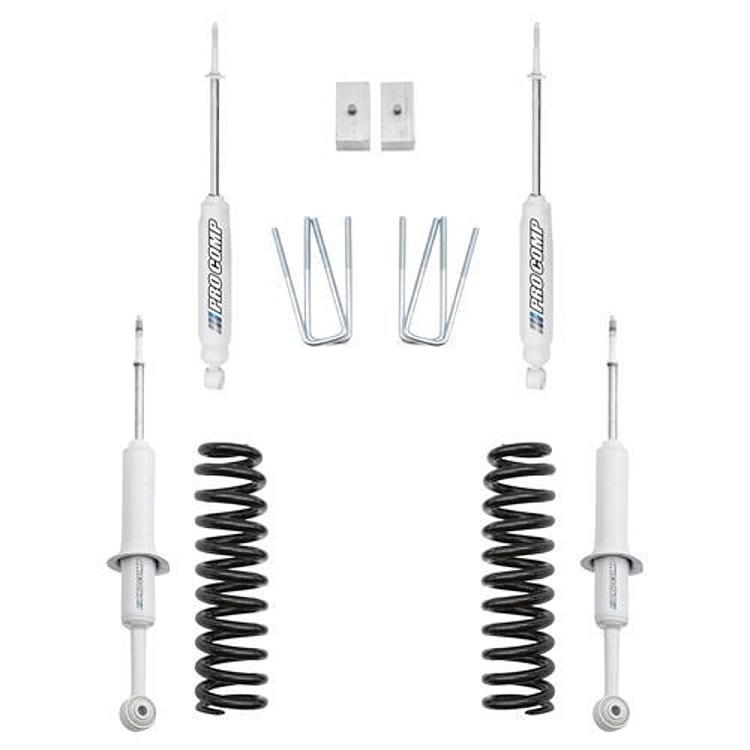

What’s included
The kit includes front coil springs, the rear lift blocks and U-bolts, sway bar brackets, ES6000 front spring seat shocks, and ES9000 rear shocks.
