Pro Comp 6″ Suspension Lift Kit with PRO-VST Front Coilovers and PRO-VST Rear Shocks – K1164BX

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2014–2017 Chevrolet Silverado 1500 and GMC Sierra 1500.
  • 6-inch Stage 1 lift with a 6–7 inch lift height range
  • PRO-VST front coilovers and rear shocks
  • Block and U-bolt rear lift with add-a-leafs
  • Part number EXPK1164BX (K1164BX)

Description

Overview

The Pro Comp EXPK1164BX, also written K1164BX, is a 6-inch suspension lift kit with PRO-VST front coilovers and PRO-VST rear shocks for the 2014–2017 Chevrolet Silverado 1500 and GMC Sierra 1500. It is a direct fit for both trucks.

The kit is a Stage 1 system, and its rear uses a block and spacer with a U-bolt and add-a-leafs. The front has coilovers rather than a leaf spring setup, which is what the title’s PRO-VST front coilovers refers to.

Key features

  • 6-inch Stage 1 lift with a 6–7 inch lift height range
  • PRO-VST front coilovers.
  • PRO-VST rear shocks, included
  • Block and U-bolt rear lift with add-a-leafs
  • Direct fit to the listed 2014–2017 Silverado and Sierra 1500 trucks

Coilover front end care

Coilovers combine the spring and shock into one unit, so a damaged or leaking body usually means replacing the whole assembly. Check the seals and the body for oil residue, and inspect the upper and lower mounts for wear at each oil change or tire rotation.

Front coilovers change caster and camber settings when the ride height moves, so an alignment after installation matters a lot for steering feel and tire wear. Pay attention to pulling, a wandering steering wheel, or uneven tread on the front tires. Clean the boots and bump stops during the same inspection.

Coilover front ends also benefit from periodic greasing of accessible joints where the design allows. Follow the vehicle’s service schedule for the rest of the truck.

Specifications

Brand Pro Comp Suspension
Part number EXPK1164BX (K1164BX)
Kit type Suspension lift kit
Kit stage Stage 1
Lift height 6 inches, with a lift height range of 6–7 inches
Shock series PRO-VST
Rear shocks PRO-VST
Rear lift method Block and spacer
Rear lift component Block and U-bolt with add-a-leafs
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 2014–2017 Chevrolet Silverado 1500 in the Custom, High Country, LS, LT, LTZ, SSV and WT trims, and the 2014–2017 GMC Sierra 1500 in the Base, Denali, SLE and SLT trims.

Only the 2014–2017 Silverado 1500 and Sierra 1500 are on this list, so 2018 and newer trucks and the 2500 and 3500 models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coilover front ends change the steering and spring geometry, so an alignment is needed after the install. Recheck the driveline angles at the new height.

What’s included

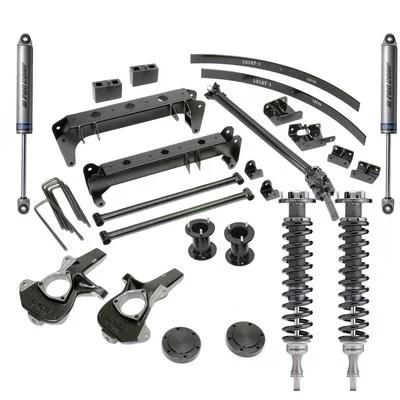

PRO-VST front coilovers and PRO-VST rear shocks are part of the kit, along with the rear block and U-bolt set with add-a-leafs. Check the package contents against your installation before starting.

SKU: EXPK1164BX Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2017Custom, High Country, LS, LT, LTZ, SSV, WT
GMC Sierra 15002014–2017Base, Denali, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp EXPK1164BX fit a 2016 GMC Sierra 1500?

Yes. The 2014–2017 GMC Sierra 1500 is covered, which includes 2016 trucks. The Chevrolet Silverado 1500 for the same years is covered as well.

Does this kit include front coilovers?

Yes. The kit includes PRO-VST front coilovers, and the rear uses PRO-VST shocks. Both are part of this 6-inch Stage 1 suspension lift.

Is this a Stage 1 or Stage 2 kit?

It is a Stage 1 kit with a 6-inch lift and a 6–7 inch lift height range. PRO-VST shocks are at the rear and coilovers at the front, so it is not a Stage 2 system.

How do I know when coilovers need replacing?

Replace coilovers when the body leaks oil, the spring sags, or the ride bounces after a bump. Worn upper mounts can cause clunks and uneven tire wear. A visual check and a bounce test at each service will show most problems.
