Pro Comp 6 Inch Lift Kit with Pro Runner Shocks – K4143BP

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • A 6-inch lift kit with Pro Runner shocks; confirm fit for your truck first
  • Front crossmembers, steering knuckles and impact struts
  • Front sway bar spacers and brake line extension brackets
  • Rear block and U-bolt kit with the shock package named in the product name

Description

Overview

The Pro Comp K4143BP is a 6-inch lift kit with Pro Runner shocks. It adds front crossmembers and steering knuckles, impact struts, and a rear block and U-bolt kit.

The crossmembers and knuckles set the front height, and no steering correction is needed. Front sway bar spacers and brake line extension brackets keep the bar and the brake lines working at the new height.

Key features

  • 6-inch lift height
  • Front crossmembers and steering knuckles
  • Impact struts
  • Front sway bar spacers
  • Brake line extension brackets
  • Rear block and U-bolt kit

Front knuckles and impact struts

Steering knuckles and impact struts carry braking and cornering loads once the front end is raised. The struts keep the axle from rotating under hard acceleration, so their bushings and mounting bolts should be inspected during routine service. Any clunk over bumps or play at the strut ends is a reason to pull the wheel and look closer.

Front sway bar spacers change how the bar works at the new height, so the end links can see more angle than before. Check the links for cracked boots and worn ball joints, and listen for knocking on uneven pavement. Keep the bar bushings clean and lubricated to prevent squeaks.

Brake line extension brackets allow the hoses to reach the raised front end without stretching. Look for hoses that rub on the tire or spring at full steering lock, and replace any with cracks or bulges. Bleed the brakes after any hose work to keep the pedal firm.

Specifications

Brand Pro Comp Suspension
Part number K4143BP
UPC 70000637847
Lift height 6 inch (lift height range 5 to 6.99 inches)
Lift kit stage Stage 1
Suspension type Knuckle
Front control Crossmembers, steering knuckles and impact struts
Steering correction None required
Rear lift Block and U-bolt kit
Front shocks Re-use OEM
Rear shocks Pro Runner

Vehicle fitment

Check fit against your vehicle’s year, model and trim before you place an order. Do not assume a match from a generic fit label.

Do not assume coverage from the Direct Fit label alone. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The crossmembers and knuckles change the front suspension geometry, so schedule an alignment and check the driveline angles after the install.

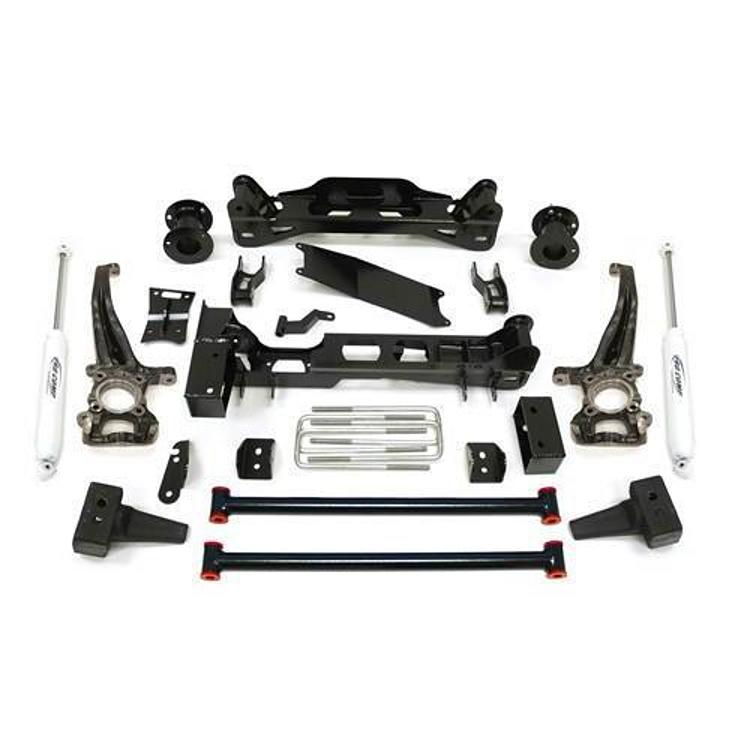

What’s included

The kit includes front crossmembers, steering knuckles, impact struts, front sway bar spacers, brake line extension brackets, and the rear block and U-bolt kit. The rear shocks are Pro Runner units as the product name states.

SKU: EXPK4143BP Category:

Specification

Shipping weight 239.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the K4143BP fit my truck?

Confirm fit for your vehicle's year, model and trim before ordering. Compare the included crossmembers, knuckles and struts with your current front end to be sure.

Are Pro Runner shocks included?

The rear shocks are Pro Runner units, and the front shock is re-used OEM. Check the shock package against your truck before you order.

Is a steering correction needed?

No. The spec sheet says no steering correction is required for this kit, and the steering correction row in the specifications table is marked none required for it.

How do I know whether the impact struts need replacing?

Worn impact struts often show up as clunks over bumps, a loose feel at the axle, or split rubber bushings at either end. Remove the wheel and check for movement at both ends, and replace the strut if a bushing is split or the joint has play.
