Overview
A 6-inch stage 1 suspension lift with PRO-X front and rear shocks for 2011–2016 Ford F-350 Super Duty pickups. The lift height range is 6 to 7 inches, and the shocks are included.
Pro Comp says its suspension systems for the 2011 and newer Super Duty F-350 use laser cut brackets and a drop pitman arm to keep the suspension and steering geometry correct. Specific rate coil springs raise the ride height and are said to improve ride quality as well as give the truck a more aggressive look.
Key features
- Laser cut brackets for suspension geometry
- Drop pitman arm for steering geometry
- Specific rate coil springs that raise ride height
- PRO-X front and rear shocks, included
- Block and U-bolt rear lift with add-a-leaf hardware
Why coil springs change ride
Specific rate coil springs are chosen to hold the new ride height while keeping the truck’s weight distribution in a range the suspension expects. A spring that is too soft or too stiff for the load can cause sag, bottoming or a stiff ride. Shock and spring pairing should be considered together when the truck is driven loaded.
Laser cut brackets and a drop pitman arm change where the steering and suspension geometry sits, so the front end should be aligned after the coils are installed. Ball joints, tie rods and bushings are often replaced at the same time when the front is lifted, since they see different angles.
- Align the front end after installation
- Check ball joints and tie rods for play
- Inspect rear block hardware and add-a-leaf parts
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4188T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Brackets | Laser cut |
| Steering | Drop pitman arm |
| Springs | Specific rate coil springs |
| Front shocks | PRO-X |
| Rear shocks | PRO-X, included |
Vehicle fitment
It fits the 2011–2016 Ford F-350 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.
The kit is made for 2011–2016 F-350 Super Duty trucks. Verify the year and trim on your truck before buying, especially for trucks from 2017 on.
Installation notes
Because the coil springs raise the ride height, the driveline angles and alignment should be checked after installation. The drop pitman arm is part of the steering setup and should be checked as well.

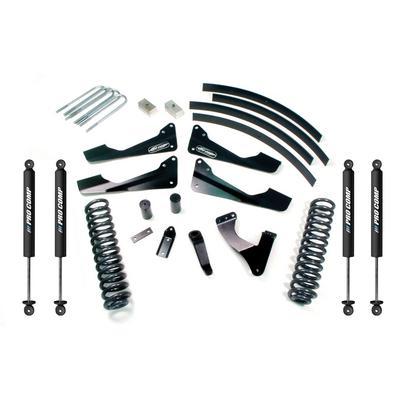

What’s included
Laser cut brackets, the drop pitman arm, specific rate coil springs, PRO-X front and rear shocks, and the rear block and U-bolt lift parts with add-a-leaf hardware.
