Pro Comp 4 Inch Stage I Lift Kit with ES3000 Shocks – K4055B

Pro Comp Suspension

Shop Ford Bronco Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 coil spring lift for 1990–1996 Ford Bronco and F-150
  • Front coil springs with radius arm brackets and a block and U-bolt rear lift
  • Bump stop extensions, pitman arm and extended length brake lines
  • ES3000 front and rear shocks

Description

Overview

The Pro Comp K4055B is a 4-inch stage 1 coil spring lift with ES3000 front and rear shocks. It fits 1990–1996 Ford Bronco and 1990–1996 Ford F-150 trucks, with a lift height range of 3 to 4.99 inches.

The front uses coil springs with radius arm brackets, bump stop extensions and extended length brake lines. The rear is lifted with a block and U-bolt kit, and a pitman arm corrects the steering. The shock boots are not included.

Key features

  • 4-inch stage 1 lift
  • Front coil springs with radius arm brackets
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines
  • Rear block and U-bolt lift

Brake line and bump stop checks

A front lift increases the distance the brake hose must cover between the frame and the caliper. Extended length brake lines are included to allow for that, but the routing still needs a look once the suspension has settled. A hose that is pulled taut at full droop or pinched at full steering lock is a common problem after lifting.

Bump stop extensions set the point where the suspension meets the frame on hard compression. They protect the springs and shocks from bottoming out, and their position should be checked after the springs settle. Clearance around the pitman arm and steering linkage should also be checked at full lock.

  • Inspect brake hoses for strain at full droop
  • Check bump stop contact marks after the first drive
  • Confirm steering linkage clearance at full lock
  • Look for cracked or torn bump stop rubber

Specifications

Brand Pro Comp Suspension
Part number K4055B
UPC 614901125047
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Radius arm
Front lift Coil springs
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1990–1996 Ford Bronco and 1990–1996 Ford F-150 trucks.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arm brackets and a block and U-bolt rear lift change the suspension geometry, so check the alignment and the driveline angles after installation. Confirm the brake lines reach at the new height before the wheels are fitted.

What’s included

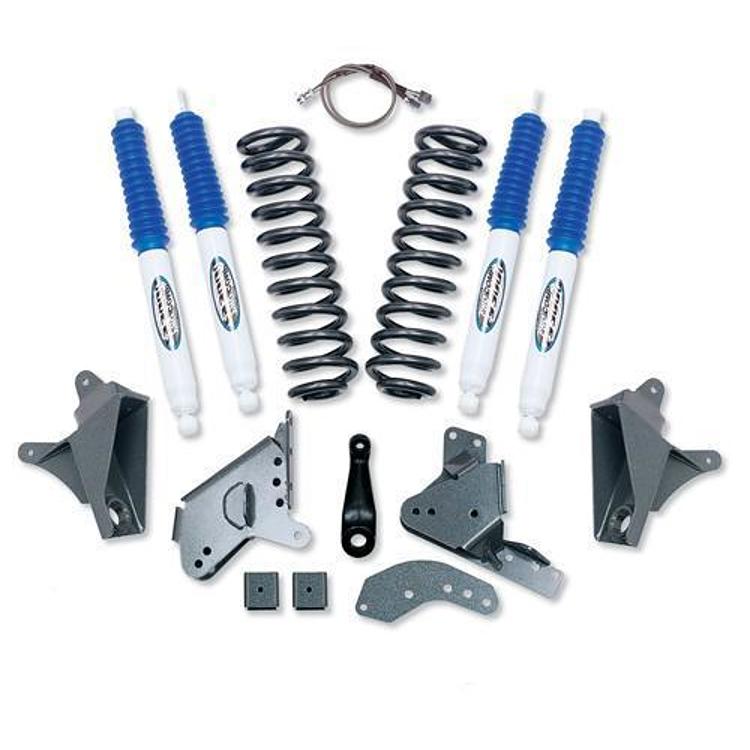

The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4055B Category:

Specification

Shipping weight 140.91 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Bronco1990–1996Custom, Eddie Bauer, XL, XLT, XLT Lariat, XLT Nite, XLT Sport
Ford F-1501990–1996Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4055B fit a 1993 Ford Bronco?

Yes. It fits 1990–1996 Ford Bronco models, including 1993. Confirm your trim is covered before ordering, since trims vary across the range.

Does the K4055B fit a 1995 Ford F-150?

Yes. It fits 1990–1996 Ford F-150 trucks, including 1995. Confirm the trim matches your truck before ordering, since trims vary across the range.

Is a pitman arm included with the K4055B?

Yes. A pitman arm is included for steering correction, along with extended length brake lines for the raised front end.

How do I tell if the bump stops are doing their job?

Bump stops limit how far the axle can compress onto the frame. Watch for contact marks, cracked rubber or clunking over large bumps. Extensions raise the stop so it engages at the right point, and their position should be checked after the springs settle.
