Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Springs – K5097BX

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 to 3.5-inch suspension lift with PRO-VST 2.5-inch coilovers and shocks
  • PRO-VST front and rear shocks included, plus rear coil springs
  • Designed for 33-inch tires on 17-inch wheels
  • Bolt-in installation without frame modifications
  • Fits 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks, part number K5097BX (EXPK5097BX), gives 3 to 3.5 inches of suspension lift on the Toyota 4Runner and FJ Cruiser. It fits 2003 to 2009 4Runner models and 2007 to 2009 FJ Cruiser models.

The kit is built around PRO-VST coilovers, tuned for 33-inch tires on 17-inch wheels. It includes PRO-VST front and rear shocks, 2.5-inch coilovers and rear coil springs. The lift height range is 0 to 3.5 inches, and the kit is designed to keep ride quality close to the factory setup while adding ground clearance. The 33-inch tire fitment is the main reason for the lift.

Key features

  • 3 to 3.5-inch suspension lift
  • 2.5-inch PRO-VST coilovers
  • PRO-VST front and rear shocks included
  • Rear coil springs included
  • Designed for 33-inch tires on 17-inch wheels
  • Bolt-in design without frame modifications

Alignment and driveline after lifting

A suspension lift raises the body relative to the axles, which changes the angles of the driveline, the steering geometry and the brake lines. Higher angles can cause driveline vibration, and the joints can wear faster if the angles are not checked. After the install, measure the driveline angles and have the alignment set, since toe and camber shift when the ride height changes.

Lifted vehicles also need attention to the brake hoses, the sway bar links and the shock mounts, which can reach their travel limit sooner than before. Check that the tires clear the fenders at full compression and at full extension. Retorque the suspension fasteners after the first few drives, because new parts settle as the components take their load.

  • Measure driveline angles after the install
  • Check brake hoses for stretch at full droop
  • Retorque suspension fasteners after the first drives

Specifications

Brand Pro Comp Suspension
Part number EXPK5097BX (title K5097BX)
Suspension type Lift kit
Lift 3 to 3.5 inches
Lift height range 0 to 3.5 inches
Tire size 33 inch
Wheel size 17 inch

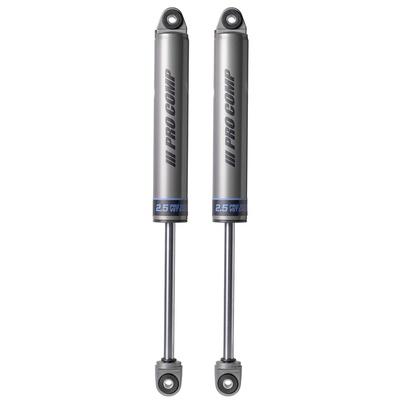

Shocks PRO-VST front and rear, included

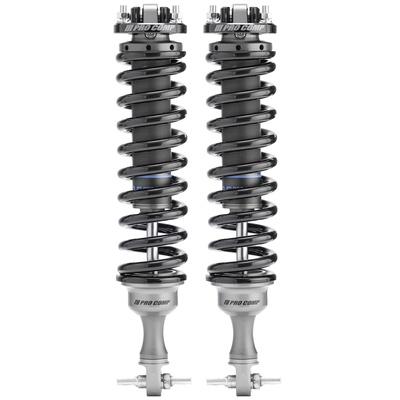

Coilovers PRO-VST 2.5-inch

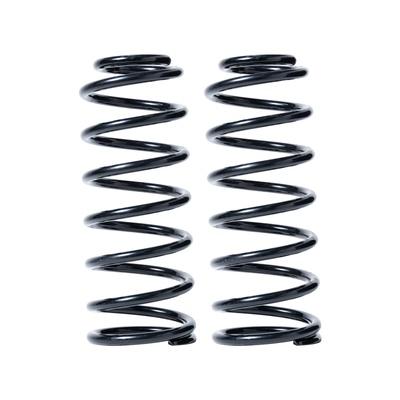

Springs Rear coil springs
Fitment Direct fit

Vehicle fitment

The kit fits the 2003-2009 Toyota 4Runner and the 2007-2009 Toyota FJ Cruiser.

The list does not include 2010 and newer 4Runner models or the FJ Cruiser from 2010 on, so those years are not confirmed for this part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is a bolt-in fit that needs no frame modifications. Lifting the vehicle changes alignment and driveline angles, so plan a wheel alignment and a driveline check after the install. Check that the shocks and springs clear the tires at full suspension travel.

What’s included

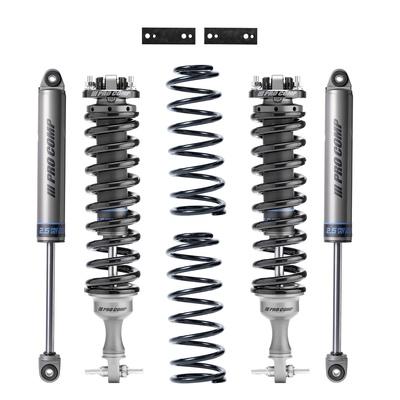

The lift kit with PRO-VST front and rear shocks, 2.5-inch coilovers and rear coil springs.

SKU: EXPK5097BX Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2009Limited, SR5, Sport
Toyota FJ Cruiser2007–2009Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K5097BX fit a 2010 Toyota 4Runner?

No. This kit fits 2003 to 2009 4Runner models, so 2010 and newer 4Runners are not covered by this part number.

Is this lift kit designed for 33-inch tires?

Yes. Pro Comp designed the PRO-VST tuning for 33-inch tires on 17-inch wheels. The lift is 3 to 3.5 inches, with a lift height range of 0 to 3.5 inches.

Are the shocks included with the K5097BX?

Yes. The kit includes PRO-VST front and rear shocks, the 2.5-inch PRO-VST coilovers, and rear coil springs. Those parts are what the title and the specification table describe as included.

Does this lift kit need frame modifications?

No. The kit is bolt-in and needs no frame modifications. A wheel alignment is still needed after the install because the lift changes suspension geometry.

Why does a lift kit need an alignment?

A lift changes the suspension geometry, which shifts toe and camber. Without an alignment, the tires can wear unevenly and the steering can feel off-center, so have it set once the lift is in place.

How should the coilovers be checked over time?

Inspect the shocks for oil leaks, check the mounting bushings for cracks or wear, and listen for knocking over bumps. Any damaged shock should be replaced in pairs so the ride stays balanced.
