Overview
The Pro Comp K4072B is a 4-inch stage 2 coil spring lift with radius arms for the 1981–1989 Ford F-150. The front uses coil springs and radius arms, and the rear is raised with a block and U-bolt kit. The lift height range is 3 to 4.99 inches.
ES3000 front and rear shocks are supplied, along with bump stop extensions, a pitman arm for steering correction and extended length brake lines. The shock boots are not included.
Key features
- 4-inch stage 2 lift
- Front coil springs with radius arms
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Steering after a stage 2 lift
A pitman arm is commonly added to a lift because the drag link and steering geometry change as the front end rises. Without correction the steering can feel slightly off center or wander on the highway. Check centering with the wheels straight and road test at a steady speed, looking for pull or vibration that was not there before the install.
Radius arms also influence how the axle moves under braking, which is why the front alignment should be checked after the work. Brake line length matters at the same time because the wheels travel further through their range. Ball joints, tie rod ends and the drag link are worth inspecting at installation, since worn parts make the new geometry harder to set.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4072B |
| UPC | 614901125177 |
| Lift | 4 inches, stage 2 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
It fits 1981–1989 Ford F-150 trucks. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms change the front axle location and caster, so set the alignment after installation. Check the pitman arm centering and the brake line length at the new height.

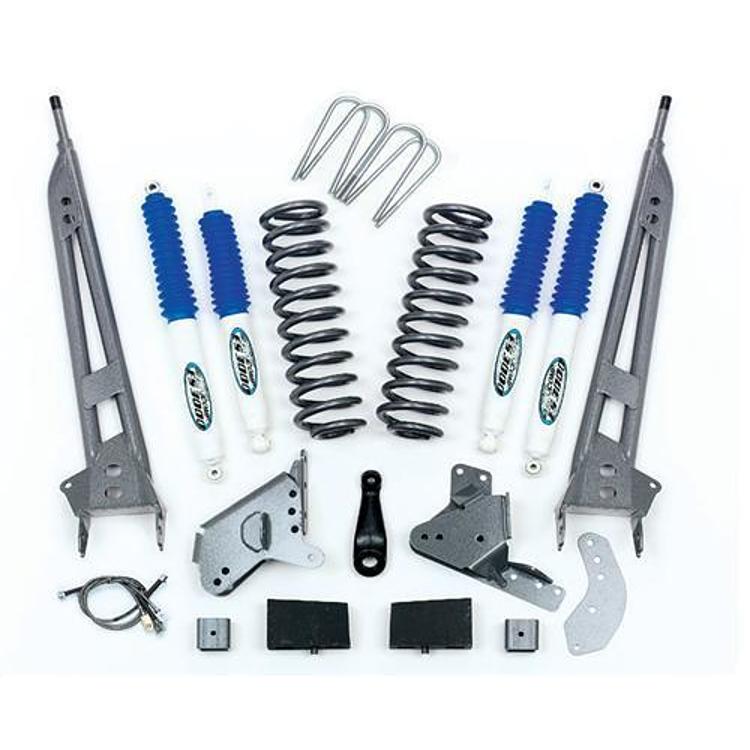

What’s included
The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
