Overview
The Pro Comp K4175B is a 6-inch Stage I lift kit with ES9000 shocks for the 2011–2016 Ford F-250 Super Duty. It uses specific rate front coil springs and radius arm drop brackets, and the rear is lifted with blocks, U-bolts and add-a-leafs.
The drop brackets are laser cut to keep the suspension and steering geometry in line, and a drop Pitman arm is included for steering correction. The Stage I brackets keep factory ride quality close to stock. The kit also includes a front track bar bracket and sway bar links.
Key features
- 6-inch lift height from a Stage I kit
- Specific rate front coil springs and spacers
- Laser cut radius arm drop brackets
- Drop Pitman arm steering correction
- Front track bar bracket and sway bar links
- Lift blocks, U-bolts and add-a-leaf at the rear
Before you buy
A lift kit changes how the front and rear of the truck sit, so the decision starts with how you plan to use it. Stage I designs keep the factory radius arms and add drop brackets, which suits daily driving and light trail use. Think about tire size and bumper or winch weight, since added load changes how the springs and shocks work.
Plan on replacing related parts together. Brake lines, driveshaft angles and steering components may need a look after a lift, and worn bushings are a good time to swap. Inspect the old shocks and leaf packs for leaks, sag or cracked mounts before the new kit goes on.
- Check brake line length after the lift
- Look for worn ball joints and tie rod ends
- Recheck wheel clearance at full steering lock
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4175B |
| UPC | 70000538518 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Radius arm or radius arm brackets |
| Front lift | Specific rate coil springs and spacers |
| Steering correction | Pitman arm |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
Vehicle fitment
It fits the 2011–2016 Ford F-250 Super Duty in King Ranch, Lariat, Platinum, XL and XLT trims.
The list covers the 2011 through 2016 model years only, so the 2008 through 2010 Super Duty and the 2017 and newer trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The drop brackets and drop Pitman arm alter the factory steering and suspension geometry, so have the alignment and driveline angles checked after the kit is on the truck.

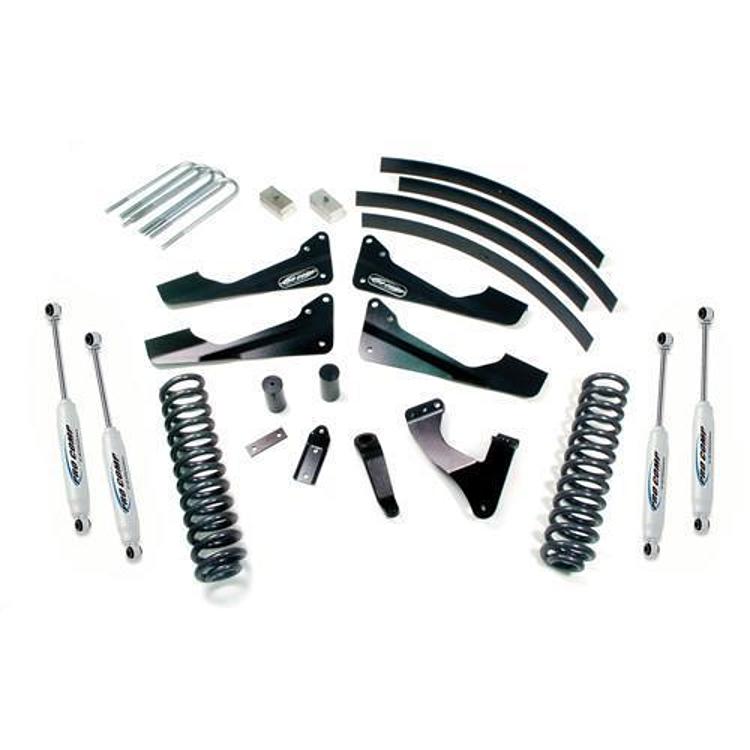

What’s included
The kit includes the specific rate coil springs and spacers, radius arm drop brackets, the front track bar bracket, the drop Pitman arm, the front sway bar links, the lift blocks, U-bolts and add-a-leafs for the rear, and ES9000 front and rear shocks.
