Overview
The Pro Comp 6 Inch Lift Kit with Pro-Runner Shocks, part number K1171BP, is a 6-inch lift for the 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. The kit is built for 2WD and 4WD trucks with a gas engine and is a direct-fit kit.
The kit includes front steering knuckles, crossmembers, drop brackets and front strut spacers, along with a skid plate. At the rear it uses lift blocks with add-a-leaf springs and U-bolts. Pro Runner shocks are included at the front and rear.
GM 1500 trucks built before April 1, 2016 had either cast steel or aluminum control arms, while trucks built on or after that date have stamped steel upper and lower control arms. The kit works with either type of control arm.
Key features
- 6-inch stage 1 lift

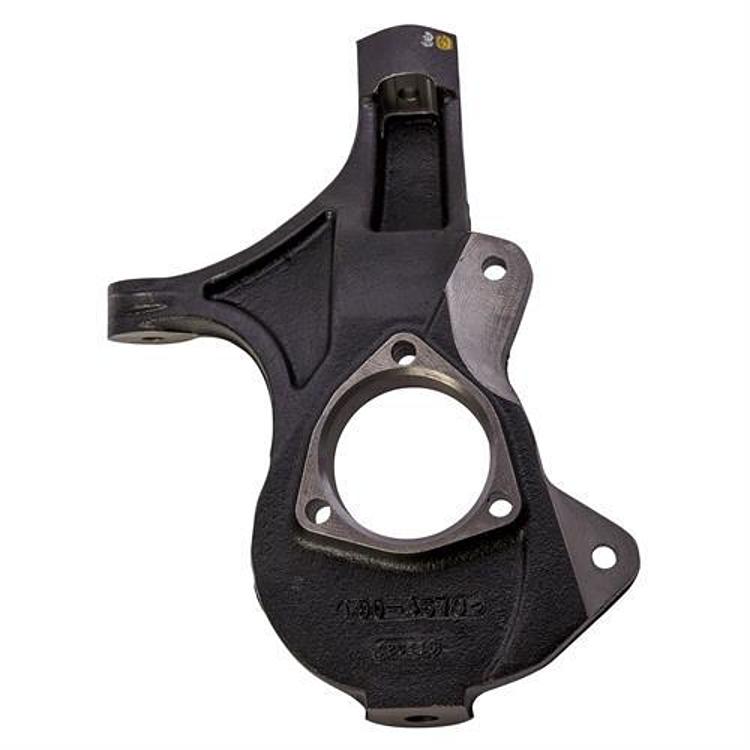

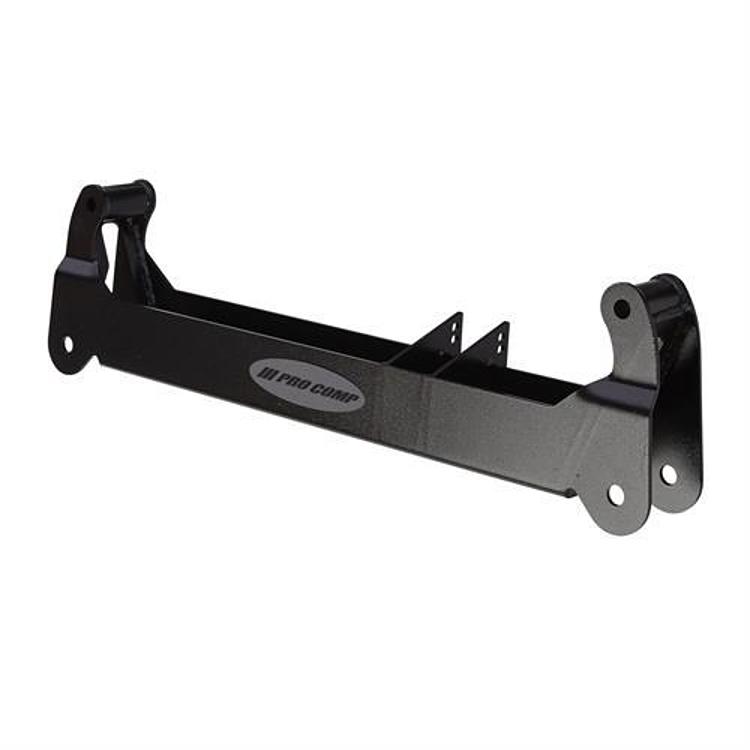

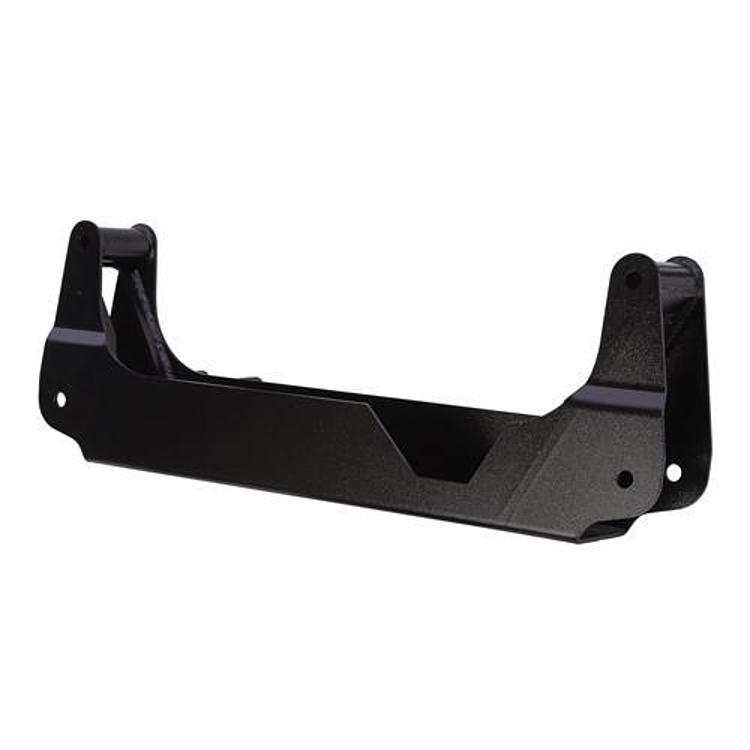

- Front steering knuckles and crossmembers

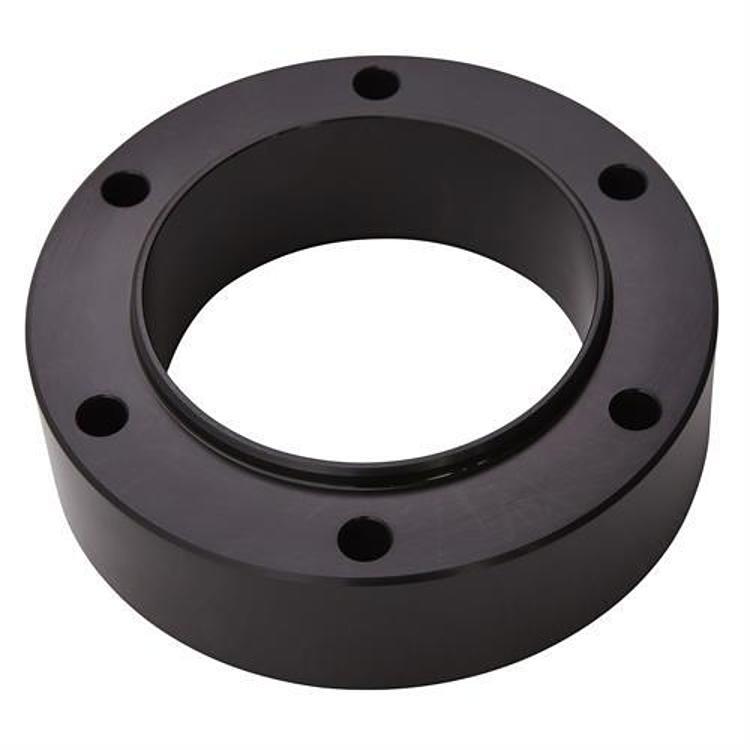

- Front drop brackets and strut spacers

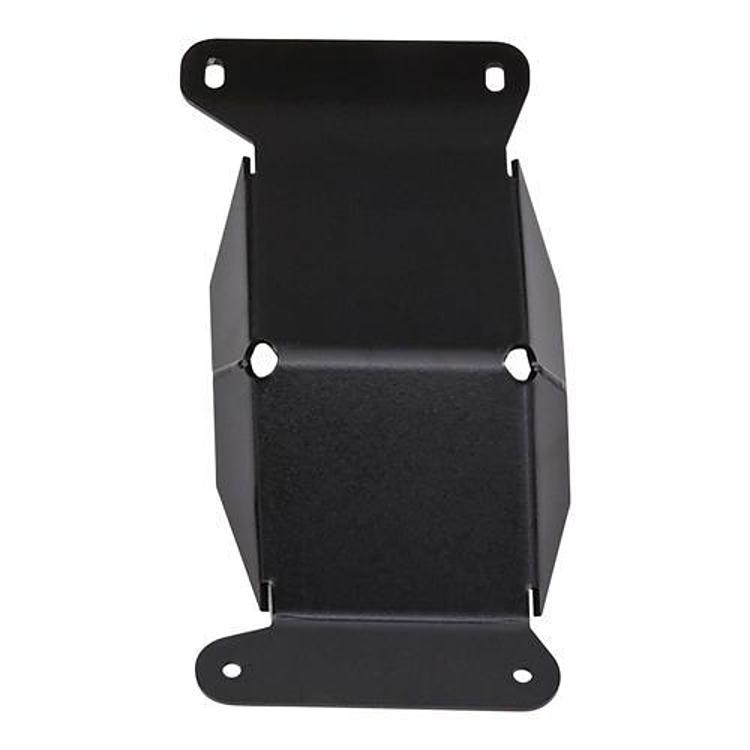

- Skid plate

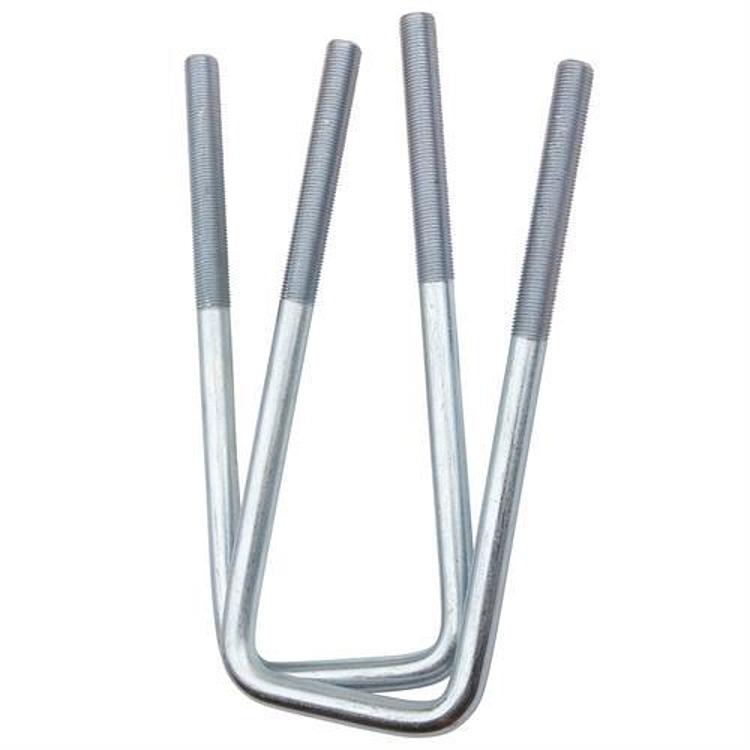

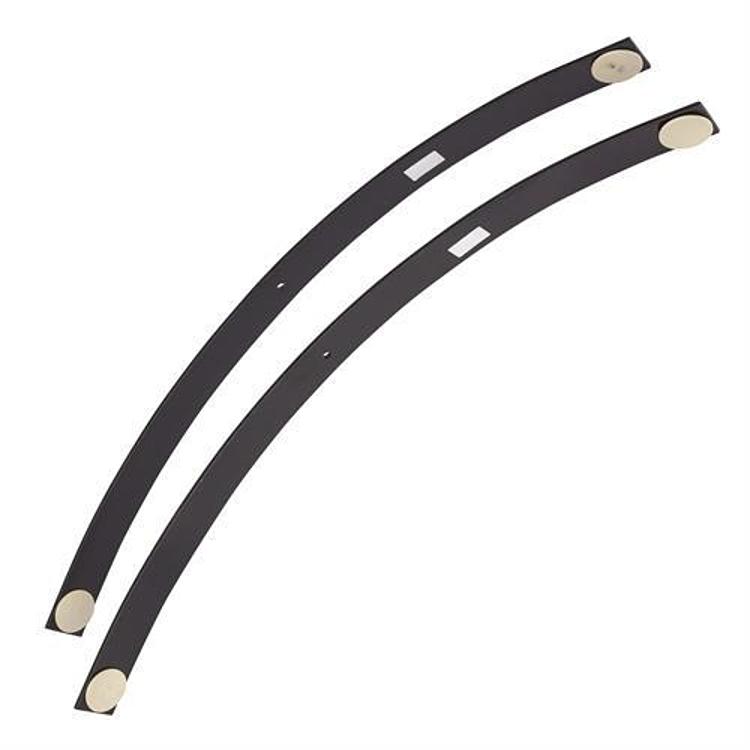

- Rear lift blocks with add-a-leaf springs and U-bolts

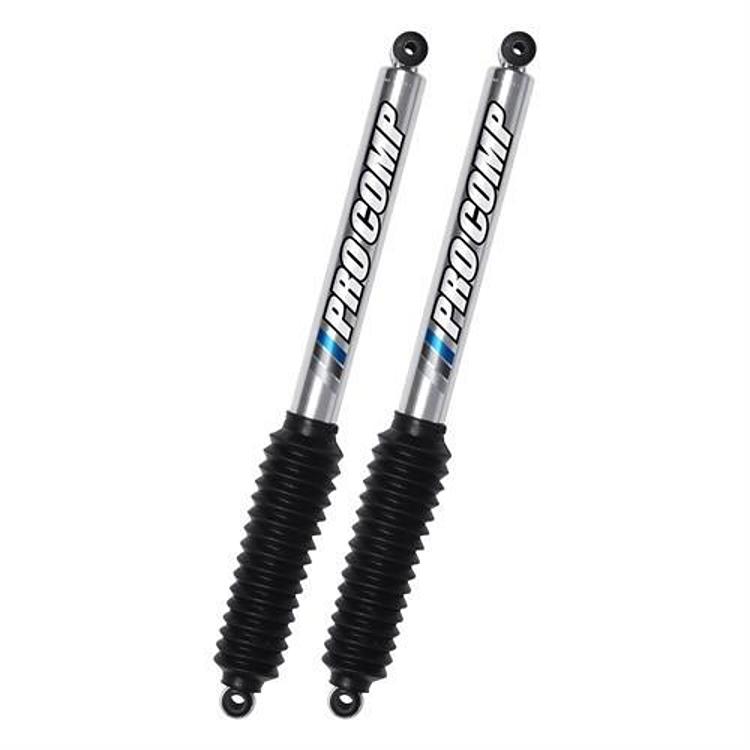

- Pro Runner front and rear shocks
- Works with aluminum or stamped steel control arms
Before you buy
A 6-inch lift changes how the front and rear of a truck sit, so the choice of components matters as much as the height. Front steering knuckles and crossmembers alter the geometry that the wheels and steering depend on, which is why an alignment is part of a proper install. Plan to have the work done on a level lift with the truck fully supported.
Control arm style is worth confirming before purchase, since the build date of a GM 1500 affects which arms are on the truck. Stamped steel and cast or aluminum arms have different mounting points, and the kit is built to accept either. Check the build information on your door tag or owner paperwork and keep it with your records.
Wheel and tire clearance usually follows the lift, so plan for any tire size change at the same time. Brake lines, driveline angles and steering linkage should be inspected once the truck is back on the ground.
- Check control arm type against build date
- Schedule an alignment after the install
- Re-torque fasteners after the first few drives
- Inspect brake lines and driveline angles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1171BP |
| UPC | 70000779559 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Spacer |
| Drivetrain | 2WD and 4WD, gas engine |
| Front shocks | Pro Runner |
| Rear shocks | Pro Runner |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
The kit fits the 2014-2018 Chevrolet Silverado 1500 (Custom, High Country, LS, LT, LTZ, SSV and WT) and the 2014-2018 GMC Sierra 1500 (Base, Denali, SLE and SLT). Trucks from 2013 and earlier and the 2500 and 3500 series are not covered. Confirm your vehicle’s year, model and trim before ordering.
Trucks from 2013 and earlier and the 2500 and 3500 series are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The steering knuckles and strut spacers change front geometry, so have the alignment and driveline angles checked after installation.
What’s included

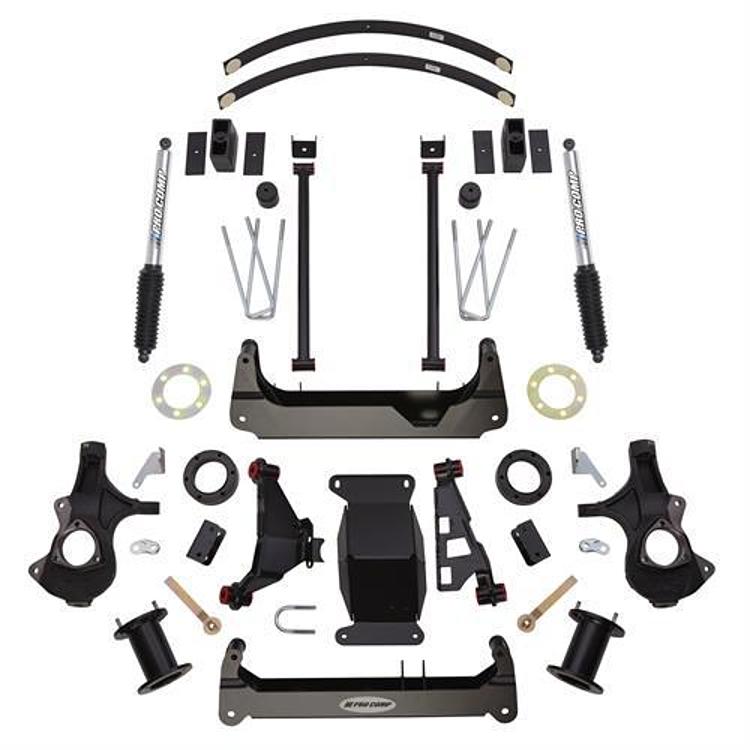

The kit includes front steering knuckles, crossmembers, drop brackets, front strut spacers, a skid plate, rear lift blocks with add-a-leaf springs and U-bolts, and Pro Runner front and rear shocks.
