Overview
The Pro Comp K4067B is a 6-inch stage 1 coil spring lift for the 1990–1996 Ford F-150. The front uses coil springs with radius arm brackets, and the rear is raised with a block and U-bolt kit. The lift height range is 5 to 6.99 inches.
ES3000 front and rear shocks are supplied. A pitman arm corrects the steering, bump stop extensions are included, and extended length brake lines are fitted for the taller ride height. The shock boots are not included.
Key features
- 6-inch stage 1 lift
- Front coil springs with radius arm brackets
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Shock boots and suspension upkeep
Shock boots protect the shaft and seal from dirt, water and grit. They are not included with this kit, so a separate set should be considered if the ES3000 shocks will see wet or dusty use. Boots that are torn or missing let debris into the seal, which shortens shock life and can cause leaks.
Routine upkeep keeps a lifted suspension predictable. Check the springs, shock mounts and bump stops after the first few drives, then again at regular service intervals. Early attention to a loose bolt or a small leak is much cheaper than a full rebuild of the front or rear.
- Inspect shock boots for tears and cracks
- Check shock mounting bolts for torque
- Look for oil seepage around the shaft seal
- Recheck bump stop position after the springs settle
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4067B |
| UPC | 614901125139 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
It fits 1990–1996 Ford F-150 trucks.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A block and U-bolt rear lift with radius arm brackets changes both ends of the truck, so check the alignment and the driveline angles after installation. Confirm the extended brake lines reach without strain at the new height.

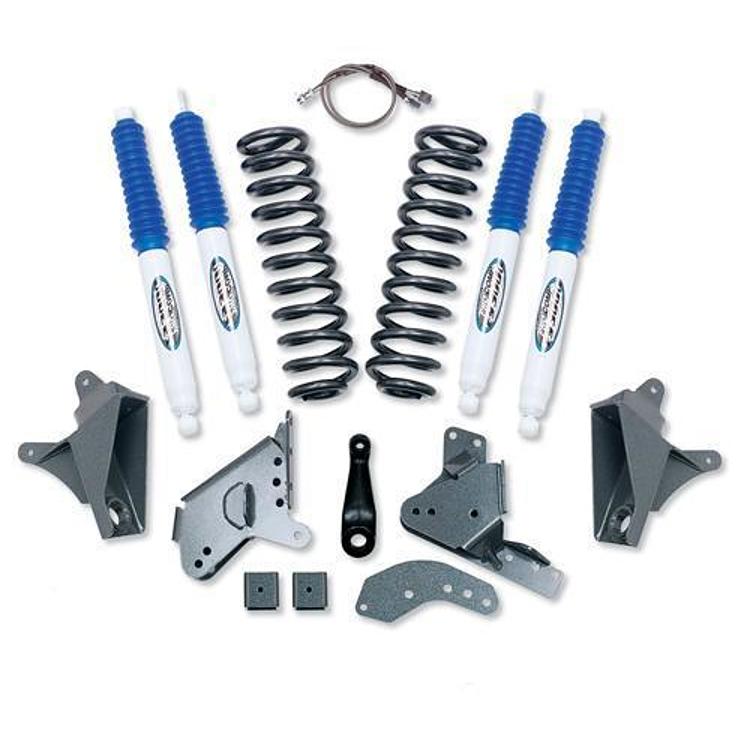

What’s included
The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
