Pro Comp 3.5″ Lift Kit with PRO-VST 2.5″ Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms – K5097BXU

Pro Comp Suspension

Shop Toyota 4Runner Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 to 3.5-inch lift with PRO-VST 2.5-inch coilovers and shocks
  • Rear coil spring spacers and upper control arms
  • Lift height range 0 to 3.5 inches, designed for 33-inch tires
  • Fits 2003-2009 Toyota 4Runner and 2007-2009 FJ Cruiser

Description

Overview

The Pro Comp 3.5-inch Lift Kit with PRO-VST 2.5-inch Coilovers and Shocks with Rear Coil Spacers and Upper Control Arms, part number K5097BXU (EXPK5097BXU), is a 3 to 3.5-inch lift for the Toyota 4Runner and FJ Cruiser. It fits 2003 to 2009 4Runner models and 2007 to 2009 FJ Cruiser models.

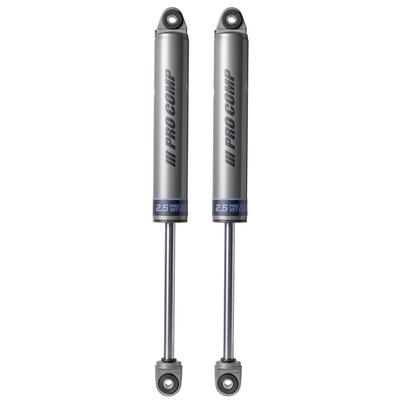

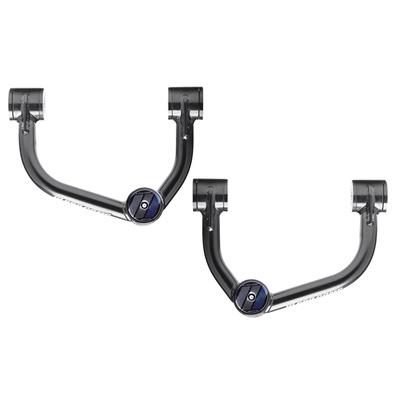

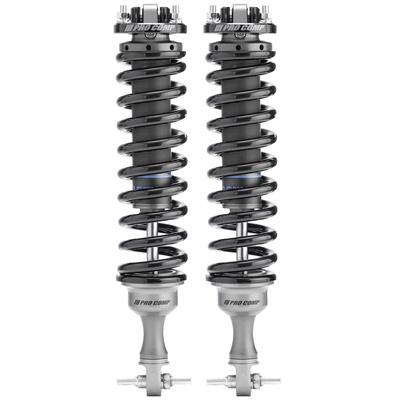

The front and rear shocks are PRO-VST, and the kit uses 2.5-inch PRO-VST coilovers. Unlike the rear coil spring kits in the same line, this one uses rear coil spring spacers. The upper control arms are also included: American-made Pro Series arms with high-angle ball joints for better suspension travel and steering geometry.

The vehicle-specific tuning is designed for 33-inch tires on 17-inch wheels. The lift height range is 0 to 3.5 inches. The system improves travel and rebound and keeps the geometry in line for larger wheels and tires.

Key features

  • 3 to 3.5-inch lift with a 0 to 3.5-inch lift height range
  • 2.5-inch PRO-VST coilovers
  • PRO-VST front and rear shocks, included

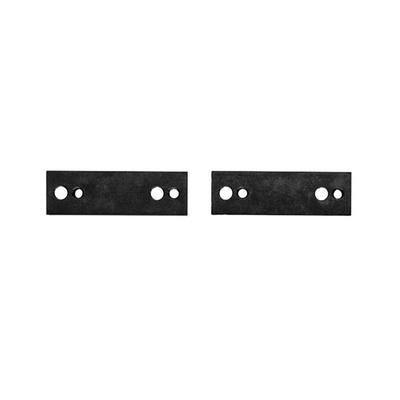

  • Rear coil spring spacers
  • Upper control arms included.
  • Tuned for 33-inch tires on 17-inch wheels

Rear spacers and coil spring setups

Rear spacers raise the rear of a truck by adding height above the existing coil spring rather than replacing the spring itself. This keeps the current spring rate and can simplify the work at the rear, but the spring sits in a different place and its travel is shorter. Check the spring seat and shock mounting after installation so the components stay seated under load.

Spacers and coilover shocks change how the rear end moves, so the rear axle and driveline angles should be checked after installation. Inspect the spacer contact faces for cracks and look for shifting under load. Check the rear shock mounts for play during the first few drives, and retorque hardware after the initial break-in.

  • Check spring seat seating after installation
  • Inspect spacers for cracks or shifting
  • Verify driveline angles at the rear axle
  • Recheck rear hardware after the first drives

Specifications

Brand Pro Comp Suspension
Part number EXPK5097BXU (title K5097BXU)
Suspension type Lift kit
Lift 3 to 3.5 inches
Lift height range 0 to 3.5 inches
Shocks PRO-VST, front and rear, included
Coilovers 2.5-inch PRO-VST
Rear lift component Coil spring spacers
Tire size 33 inch
Fitment Direct fit

Vehicle fitment

It fits the 2003-2009 Toyota 4Runner and the 2007-2009 Toyota FJ Cruiser. The kit does not cover 2010 and newer 4Runner models or 2010 and newer FJ Cruisers.

The list does not include 2010 and newer 4Runner models or FJ Cruisers from 2010 on. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is a direct fit. Lifting the truck changes alignment and driveline angles, so plan a wheel alignment and a driveline check after installation.

What’s included

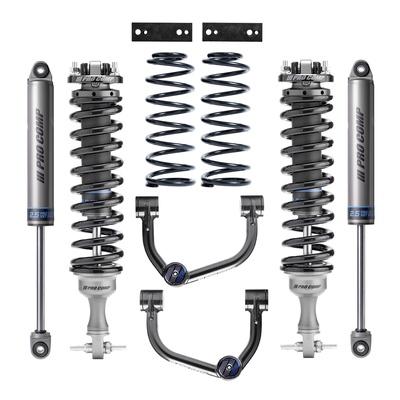

The lift kit with PRO-VST front and rear shocks, 2.5-inch coilovers, rear coil spring spacers and upper control arms, as the title describes.

SKU: EXPK5097BXU Categories: ,

Fitment

VehicleYearsTrims
Toyota 4Runner2003–2009Limited, SR5, Sport
Toyota FJ Cruiser2007–2009Base, TRD Special Edition, Trail Teams Special Edition

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K5097BXU use rear coil springs or spacers?

The title and specifications list rear coil spring spacers, not rear coil springs. The K5097BX and K5098BX kits in the same line are listed with rear coil springs.

Does the K5097BXU fit a 2008 Toyota 4Runner?

Yes. The kit fits the 2003 to 2009 Toyota 4Runner, so a 2008 model is in range. Confirm the model before ordering.

Are the upper control arms included with this lift?

Yes. The kit includes upper control arms. They are American-made Pro Series arms with high-angle ball joints for better suspension travel and steering geometry.

What tire size is this kit tuned for?

Pro Comp designed the kit for 33-inch tires on 17-inch wheels, and the lift height range is 0 to 3.5 inches. Check your tire size before ordering.

Do spacers affect how the rear carries a load?

Yes. Spacers raise the spring seat, so the rear may sit differently under cargo or towing. Check ride height and rear shock behavior after installation, and avoid heavy loads until the setup has settled.

How can I tell whether the rear spacers are worn?

Look for cracking at the contact faces, shifting in the spring seat, or uneven rear tire wear. Any movement or noise from the rear end under load is a reason to inspect the spacers and their hardware.
