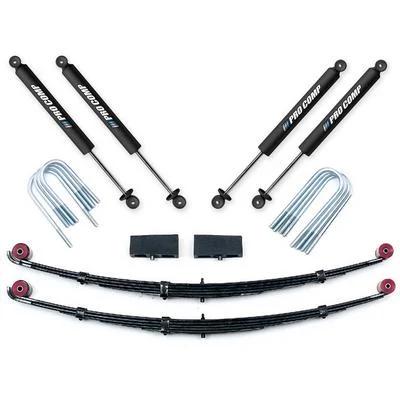

Pro Comp 2.5″ Stage I Lift Kit with PRO-X Shocks – K1060T

Pro Comp Suspension

Shop Chevrolet K20 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1976 to 1986 Chevrolet K20 and GMC K2500 and C2500 trucks
  • 2.5-inch stage 1 lift with PRO-X shocks

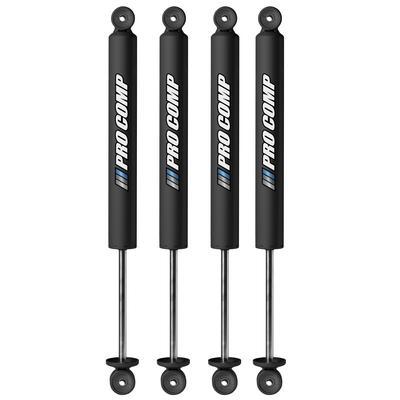

  • PRO-X front and rear shocks included
  • Lift height range of 0 to 3.5 inches

Description

Overview

The Pro Comp 2.5-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK1060T (kit K1060T), is a stage 1 suspension lift for 1976 to 1986 Chevrolet K20 and GMC K2500 trucks. It also covers the Suburban versions and a 1986 GMC C2500 Suburban.

The kit lifts the truck 2.5 inches at stage 1, and the specifications give a lift height range of 0 to 3.5 inches. The back of the truck is raised with a block or spacer and a block and U-bolt component. PRO-X shocks are listed at the front and the rear, and they are included with the kit.

Key features

  • 2.5-inch stage 1 suspension lift
  • PRO-X shocks at the front and rear, included
  • Block or spacer rear lift with a block and U-bolt component
  • Lift height range of 0 to 3.5 inches
  • Designed for 33-inch tires

Understanding a rear block lift

A block or spacer lift raises the rear of the truck without changing the leaf springs. Because the back moves higher than the front, the driveshaft angle becomes steeper, and that angle is the main thing to watch after installation. Extending brake lines and checking the parking brake cable may also be needed on some trucks, so inspect them during the install.

Stage 1 kits are often chosen for trucks that mostly drive on pavement with occasional light trail use. Tire clearance, steering stops and the front suspension all matter when a lift is combined with larger tires. Recheck fasteners and U-joints at every service interval, and watch for vibration at highway speed.

  • Measure front and rear ride height after installation
  • Inspect U-joints for play and wear
  • Check brake lines and cables for stretch
  • Recheck the driveshaft angle periodically

Specifications

Brand Pro Comp Suspension
Part number EXPK1060T
Kit code K1060T
Suspension type Lift kit, stage 1
Lift height 2.5 inches stage 1; range 0 to 3.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Tire size 33 inches
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits 1976 to 1986 Chevrolet K20 and K20 Suburban, 1979 to 1986 GMC K2500 and K2500 Suburban, 1976 to 1978 GMC K25 and K25 Suburban, and a 1986 GMC C2500 Suburban. The Base, Custom, Deluxe, High Sierra, Sierra Classic and Silverado versions are covered.

The list does not include 1975 and earlier K20 trucks or 1987 and later models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The block or spacer rear lift raises the back of the truck, so measure front and rear heights after installation and check the alignment.

What’s included

The 2.5-inch stage 1 lift kit with PRO-X front and rear shocks.

SKU: EXPK1060T Categories: ,

Fitment

VehicleYearsTrims
Chevrolet K201976–1986Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
Chevrolet K20 Suburban1976–1986Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado
GMC C2500 Suburban1986Sierra Classic
GMC K251976–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K25 Suburban1976–1978Base, High Sierra, Sierra Classic, Sierra Grande
GMC K25001979–1986Base, High Sierra, Sierra Classic, Sierra Grande
GMC K2500 Suburban1979–1986Base, High Sierra, Sierra Classic, Sierra Grande

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K1060T fit a 1980 GMC K2500?

Yes. The kit fits 1979 to 1986 GMC K2500 trucks, and 1980 falls within that range. Confirm the trim before ordering.

Are PRO-X shocks included?

Yes. PRO-X shocks are included at both the front and the rear of the truck. Check the package contents against your installation before starting, including the shock count.

Does the kit fit a Suburban?

Yes. The list includes the 1976 to 1986 Chevrolet K20 Suburban and the 1979 to 1986 GMC K2500 Suburban. The list also includes the 1979 to 1986 GMC K2500 Suburban, as shown above.

Does a block lift need a different driveshaft?

Not always. Many block lifts work with the factory driveshaft, but a steep angle can cause vibration or U-joint wear. Check the angle after installation and consider a driveshaft correction if vibration shows up.
