Pro Comp 6 Inch Lift Kit with ES3000 Shocks – K1109B

Pro Comp Suspension

Shop Chevrolet K2500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch bracket lift with ES3000 front shocks and rear lift blocks
  • Front drop brackets, crossmembers and compression struts
  • Torsion bar drop brackets and upper control arm mount brackets
  • Fits 1993-1999 Chevrolet and GMC K2500 trucks and Suburban models

Description

Overview

The Pro Comp 6 Inch Lift Kit with ES3000 Shocks, part number K1109B, is a 6-inch bracket lift for 1993-1999 Chevrolet and GMC K2500 trucks and their Suburban versions. The front lift uses drop brackets, front and rear crossmembers, compression struts and bump stops, plus torsion bar drop brackets and upper control arm mount brackets.

The rear uses lift blocks and U-bolts, and ES3000 front shocks are included. Front sway bar spacers are part of the front kit. It is a direct fit kit with a lift height range of 5 to 6.99 inches.

Key features

  • 6-inch stage 1 bracket lift
  • Front drop brackets and torsion bar drop brackets
  • Front and rear crossmembers
  • Compression struts
  • Front sway bar spacers
  • Bump stops and upper control arm mount brackets
  • ES3000 front shocks, included

Bracket lift on K2500 frames

Bracket lifts raise the front end through drop brackets that attach to the frame and suspension mounts, so those mounts carry the full load. Torsion bar drop brackets change how the front torsion bars sit, and upper control arm mount brackets alter the upper arm angle. After any bracket install, inspect the bolts and welds for movement.

Compression struts and bump stops limit travel and keep the front end controlled at the new height. Older K2500 trucks often show worn ball joints, bushings and steering components, which are easier to replace while the front is apart. A front alignment is needed once the work is complete.

  • Check frame mount bolts after the first drives
  • Inspect torsion bar adjustment for even height
  • Replace worn bushings during installation

Specifications

Brand Pro Comp Suspension
Part number K1109B
UPC 614901122503
Lift height 6 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Bracket
Rear lift Lift blocks and U-bolts
Front shocks ES3000
Shocks included Yes
Fitment Direct fit

Vehicle fitment

It fits the 1993-1999 Chevrolet K2500 (Base, Cheyenne, LS, Silverado and WT), the 1993-1999 Chevrolet K2500 Suburban (Base, LS, LT and Silverado), the 1993-1999 GMC K2500 (Sierra, Sierra SL, Sierra SLE, Sierra SLT and Sierra SLX), and the 1993-1999 GMC K2500 Suburban (Base, SLE and SLT).

K1500 pickups and other years of the K2500 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The bracket lift and steering-related parts change front geometry and driveline angles, so have the alignment and driveline angles checked after installation.

What’s included

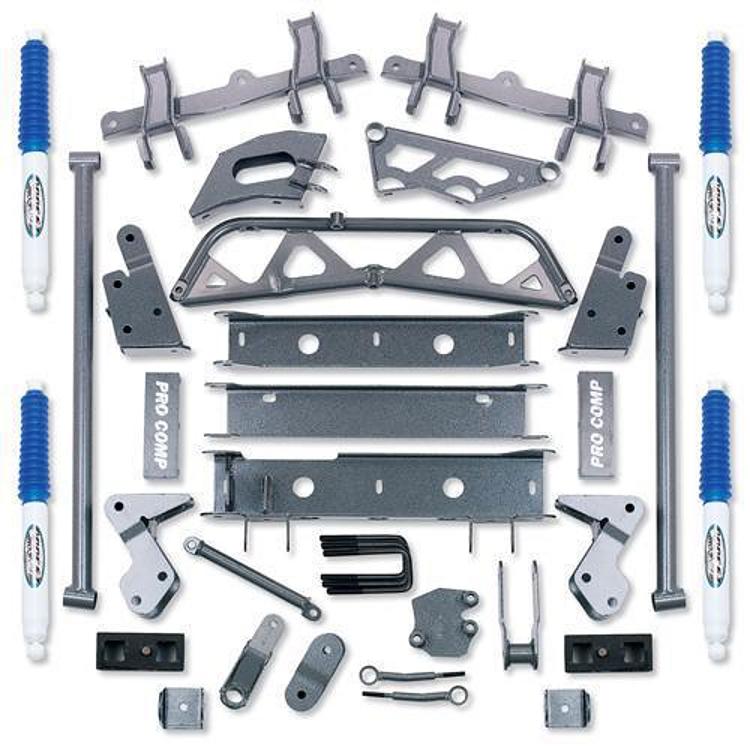

The kit includes front drop brackets, front and rear crossmembers, compression struts, front sway bar spacers, bump stops, torsion bar drop brackets, upper control arm mount brackets, rear lift blocks with U-bolts, and ES3000 front shocks.

SKU: EXPK1109B Category:

Specification

Shipping weight 223.70 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Chevrolet K25001993–1999Base, Cheyenne, LS, Silverado, WT
Chevrolet K2500 Suburban1993–1999Base, LS, LT, Silverado
GMC K25001993–1999Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX
GMC K2500 Suburban1993–1999Base, SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the K1109B fit a 1996 GMC K2500 Suburban?

Yes. It fits the 1993-1999 GMC K2500 Suburban, and 1996 falls within that range. The fit covers the Base, SLE and SLT versions. Match your truck's year, model and trim to the list before ordering.

Does the K1109B fit a K1500 pickup?

No. It covers K2500 models and Suburbans only, so K1500 pickups are outside its fit. Check your truck's model against the trims named before buying.

What shocks are on the K1109B?

The kit comes with ES3000 front shocks, and the rear is set up with lift blocks and U-bolts instead. Shocks are included with the kit as part of the front package.

Should torsion bar drop brackets be rechecked after installation?

Yes. Torsion bar drop brackets change how the front bars load, so recheck the adjustment and bolts after the first drives. Uneven ride height or noise from the front end means the setup needs another look.
