Pro Comp 4″ Stage I Lift Kit with PRO-X Shocks – K4102T

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Covers 1990 to 1996 Ford F-150 and 1993 to 1995 F-150 Lightning trucks
  • 4-inch stage 1 lift with PRO-X shocks at both ends
  • Block or spacer rear with U-bolts
  • Shocks included

Description

Overview

The Pro Comp 4-inch Stage I Lift Kit with PRO-X Shocks, part number EXPK4102T (kit K4102T), is a stage 1 suspension lift for 1990 to 1996 Ford F-150 trucks and the 1993 to 1995 F-150 Lightning. The F-150 versions covered are Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat.

The kit is listed at 4 inches of stage 1 lift and a lift height range of 4 to 5.5 inches. The rear uses a block or spacer with U-bolts. PRO-X shocks are listed at both the front and the rear, and they are included with the kit.

Key features

  • 4-inch stage 1 suspension lift

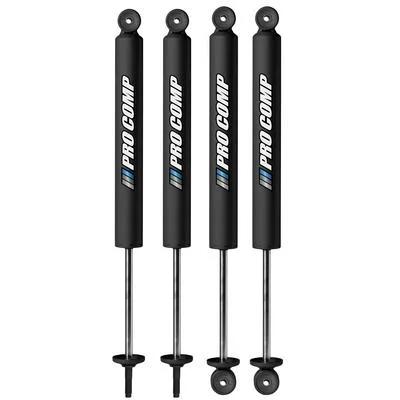

  • PRO-X shocks at both ends, included
  • Block or spacer rear with U-bolts
  • Lift height range of 4 to 5.5 inches

Rear U-bolt maintenance

U-bolts clamp the block to the axle and the leaf spring, so their torque affects how the rear holds position under load. Check them after the first drives and at regular service, because loosening usually happens gradually rather than all at once.

Blocks themselves seldom fail, but the contact surfaces can wear or develop rust. Clean the surfaces when the rear is apart, and fit new U-bolts if the threads or bends look damaged. Keeping the axle centered on the spring is part of the same job.

Rear shocks and bump stops work with the block setup, so check their mounts when the U-bolts are inspected. A worn bump stop can change how the rear behaves at the end of its travel, especially with a load in the bed.

  • Retighten U-bolts after the first few drives
  • Inspect block faces for rust or cracks
  • Check shock mounts for looseness
  • Replace damaged U-bolts rather than reusing them

Specifications

Brand Pro Comp Suspension
Part number EXPK4102T
Kit code K4102T
Suspension type Lift kit, stage 1
Lift height 4 inches stage 1; range 4 to 5.5 inches
Rear lift method Block or spacer
Rear lift component Block and U-bolt
Shocks included Yes
Front shocks PRO-X
Rear shocks PRO-X
Fit type Direct fit

Vehicle fitment

It fits 1990 to 1996 Ford F-150 trucks in the Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat versions, along with the 1993 to 1995 F-150 Lightning.

The list does not include the 1989 and earlier F-150 or the 1997 and newer models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The rear U-bolt and block setup raises the rear, so the front and rear heights should be measured after installation.

What’s included

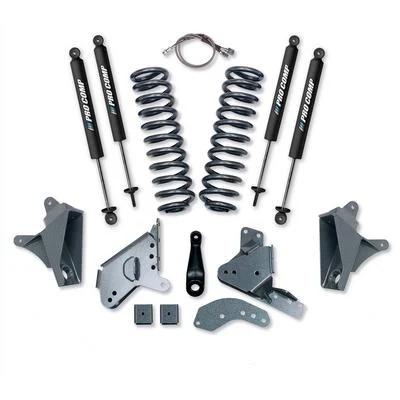

The 4-inch stage 1 kit and its PRO-X front and rear shocks.

SKU: EXPK4102T Categories: ,

Fitment

VehicleYearsTrims
Ford F-1501990–1996Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat
Ford F-150 Lightning1993–1995All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Pro Comp K4102T fit a 1993 F-150 Lightning?

Yes. It fits the 1993 to 1995 Ford F-150 Lightning, and 1993 falls within that range. Confirm that the Lightning badge and trim match your truck before ordering.

Are shocks included with the lift?

Yes. PRO-X shocks are listed at both the front and the rear and are included. The specifications list PRO-X shocks at the front and the rear.

What is the lift height range?

The lift is 4 inches at stage 1, and the listed range is 4 to 5.5 inches. The rear uses a block or spacer with U-bolts, and PRO-X shocks are included.

How can I tell if the rear block setup needs service?

Watch for clunks over bumps, a rear that sits off level, or U-bolts that have moved on the axle. Any of those signs means the clamp and block should be inspected before the next trip, and a loose part should be retightened right away.
