Overview
The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1164B, is a 6-inch bracket and knuckle lift for the 2014-2016 Chevrolet Silverado 1500 and GMC Sierra 1500. The kit is built for trucks with the steel OE knuckle, and the lift height range is 5 to 6.99 inches.
The front uses a strut spacer along with crossmembers, differential drop brackets and sway bar drop brackets. The rear uses a lift block with add-a-leaf and U-bolts, and ES9000 shocks are fitted at the rear. No front shock is supplied with this kit, so confirm the front setup before installing.
Key features
- 6-inch stage 1 bracket and knuckle lift

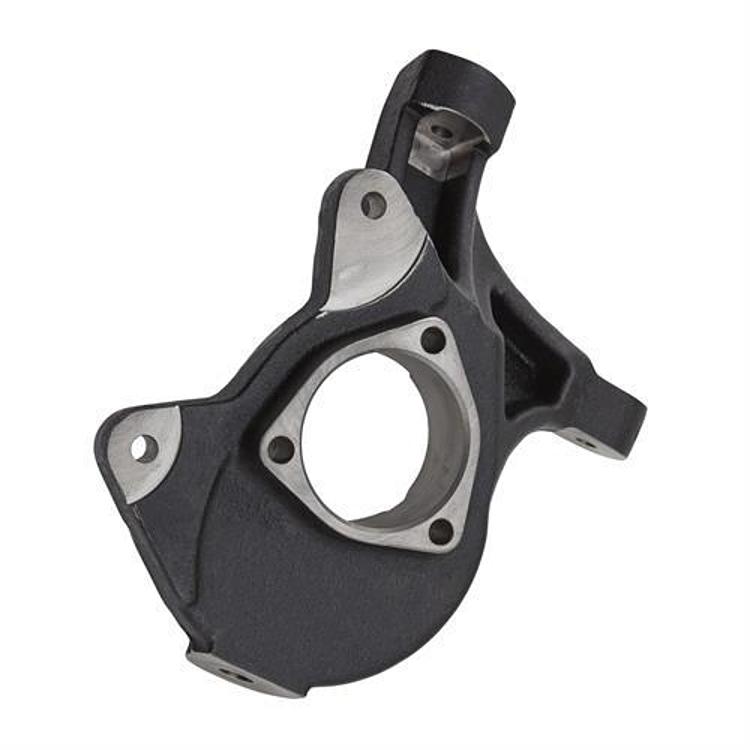

- Steel OE knuckle design

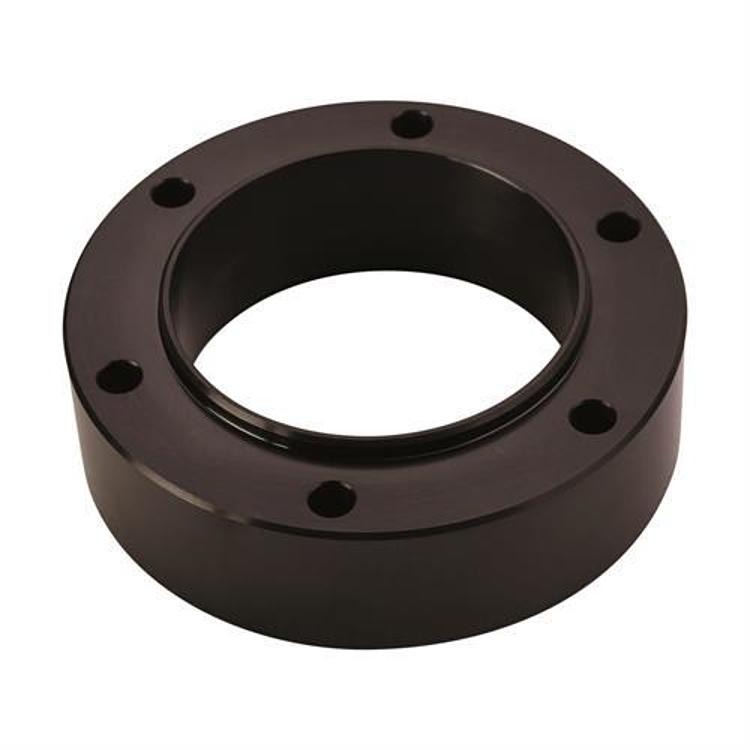

- Front strut spacer
- Lift block with add-a-leaf and U-bolts

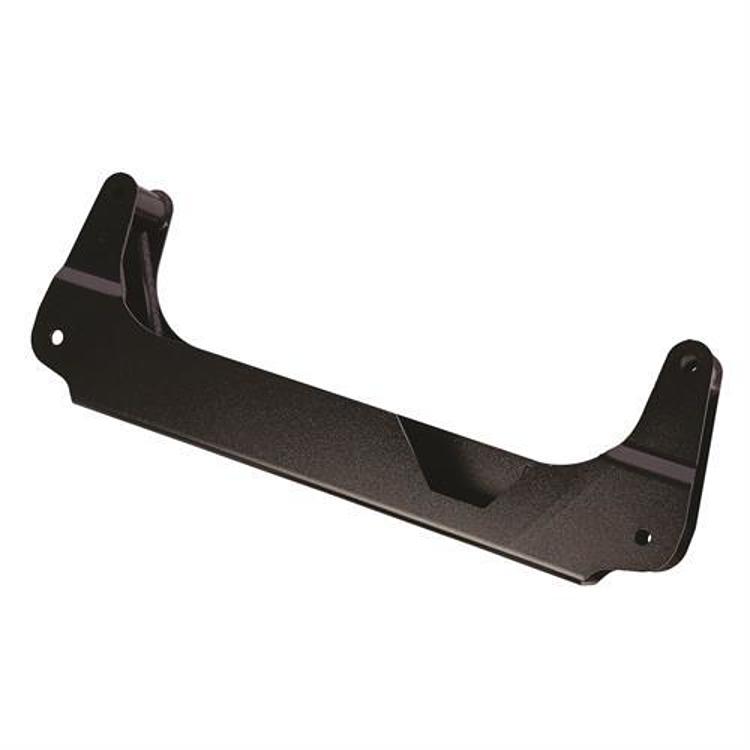

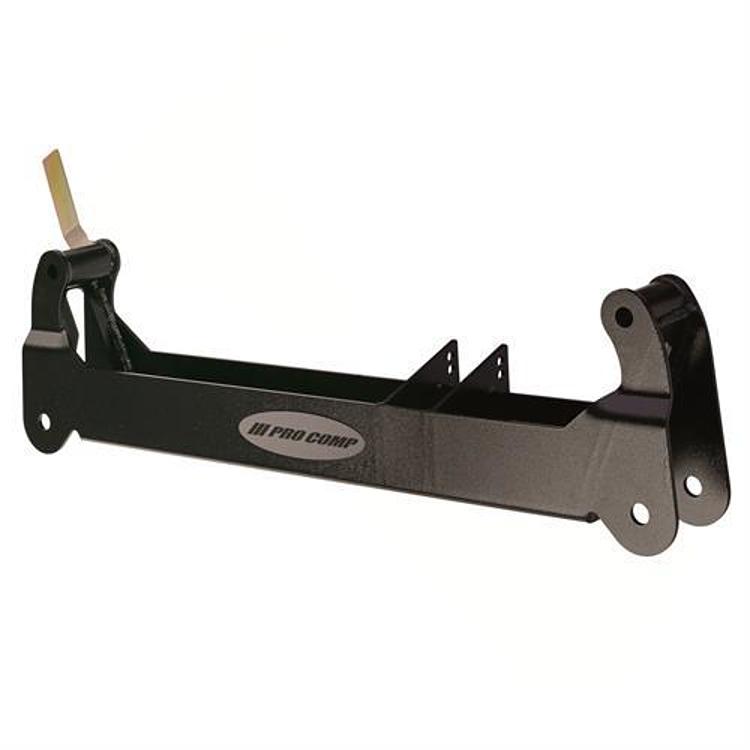

- Crossmembers and differential drop brackets
- Sway bar drop brackets
- Rear ES9000 shocks
Front end geometry
A bracket and knuckle lift raises the front end through several points at once. The strut spacer lifts the strut, while the differential and crossmember drop brackets reposition the driveline and the frame mounts. Because each part changes a different angle, the lift is best judged as a complete front end rather than a single component. Front alignment should be set after the kit is in, with caster and toe checked.
Rear lift blocks and add-a-leaf parts restore support for the axle as the body rises. Check the U-bolts and blocks for tightness after a short drive, since they settle under load. The sway bar drop brackets change the link angle, so inspect those bushings and links for wear. Keep an eye on driveline vibration, especially at highway speed, and recheck the angles if the truck carries a heavy load or a trailer.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1164B |
| UPC | 700007591821 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Bracket and knuckle |
| Knuckles | Steel OE |
| Rear lift | Lift block, U-bolts and add-a-leaf |
| Rear shocks | ES9000 |
| Front shocks | None listed |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2014-2016 Chevrolet Silverado 1500 in the Custom, High Country, LS, LT, LTZ, SSV and WT versions and the 2014-2016 GMC Sierra 1500 in the Base, Denali, SLE and SLT versions.
Trucks from 2013 and earlier and from 2017 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Strut spacers and bracket-type drop parts change the front geometry, so have the alignment and driveline angles checked after installation.

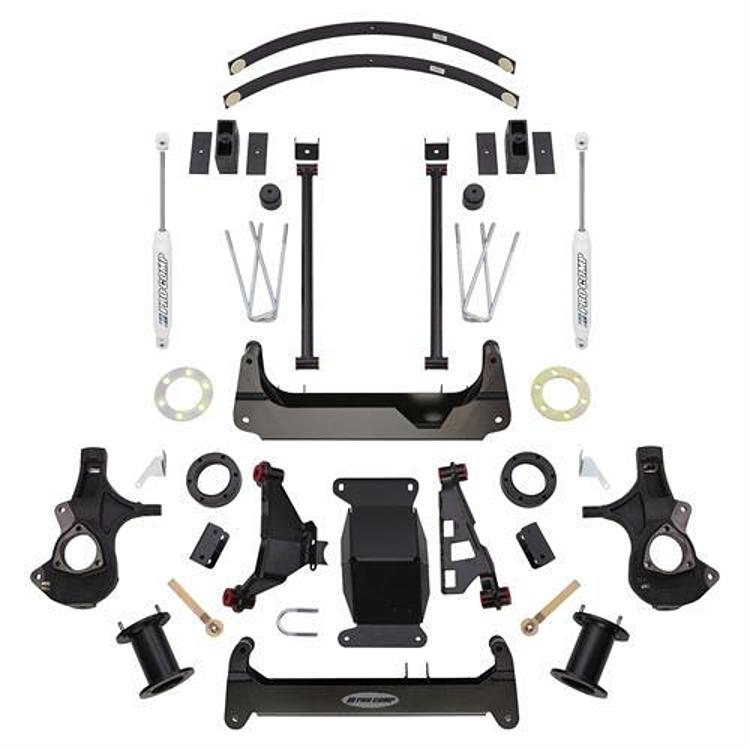

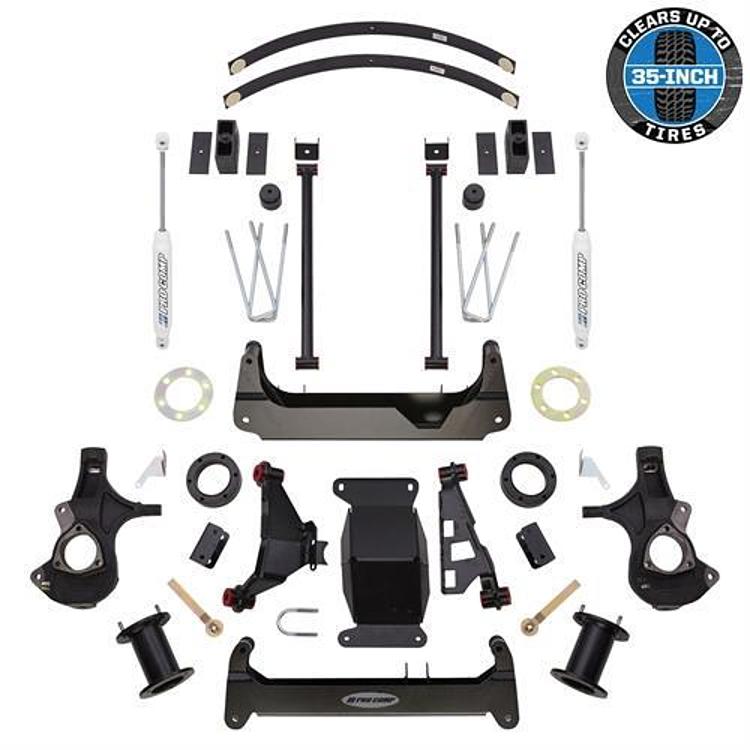

What’s included
The kit includes a front strut spacer, crossmembers, differential drop brackets, sway bar drop brackets, a lift block with add-a-leaf, U-bolts, and ES9000 rear shocks.
