Overview

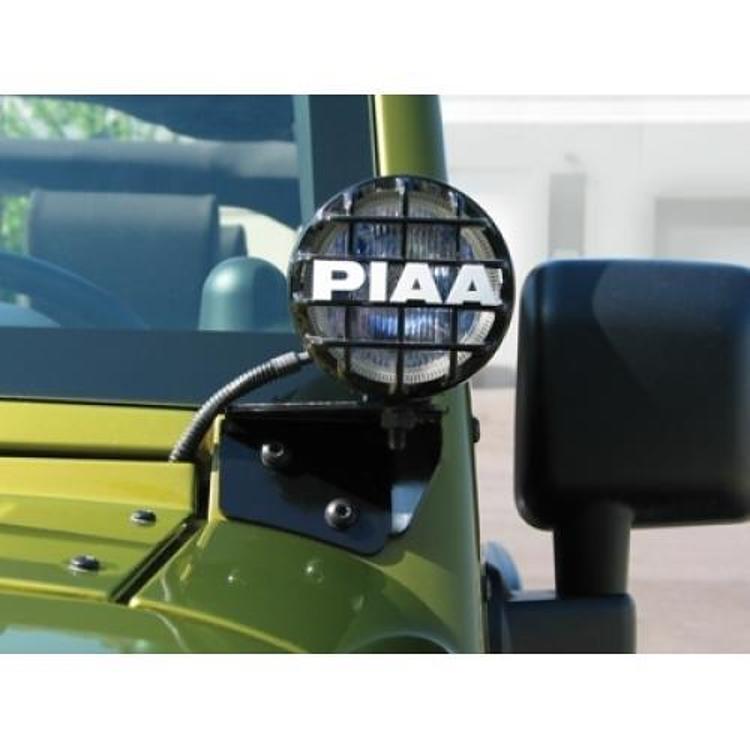

The PIAA 30110 is a plus pillar mount bracket kit for the 2007-2018 Jeep Wrangler JK, used to mount PIAA lights to the windshield bracket. It is a bracket set, not a light.
The brackets mount to the Jeep’s existing windshield bracket and fit without drilling or cutting. Once installed, they give a stable platform for PIAA lights, and the finish is a rugged black powder coat.
Key features
- Mounts to the existing windshield bracket
- No drilling or cutting required
- Rugged black powder coat finish
- Bracket set for PIAA lights
Light placement and wiring
Where lights sit on the bracket affects both beam coverage and how much the lights are exposed to brush and weather. Position them so the lenses are clear of the windshield wiper path and the bracket is fully seated before tightening. Plan the wire routing before mounting so cables are secured away from moving parts.
The kit gives a stable mounting platform, but the lights themselves add weight and wind load to the bracket. Check the mounting points after rough trails and during regular service, looking for loose hardware or any paint chips that could lead to rust.
- Keep lens clear of wiper travel
- Route cables away from moving parts
- Recheck hardware after rough trails
- Touch up chips in the powder coat
Specifications
| Brand | Piaa Lighting |
|---|---|
| Part number | 30110 |
| UPC | 722935301105 |
| Type | Bracket set |
| Finish | Black powder coat |
| Fitment | Jeep Wrangler JK 2007 (see fitment section) |
Vehicle fitment
This bracket set is inferred as fitting the 2007-2018 Jeep Wrangler JK. The fitment here is based on the product name, which names the Jeep Wrangler JK 2007 and the JK chassis code.
The bracket is made for the JK generation, so the Wrangler TJ, LJ, JL and the Gladiator fall outside this bracket. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The brackets mount to the existing windshield bracket without drilling or cutting. Lights mounted on this kit need fused relay wiring, and local road-use rules govern where and how they can be used.
What’s included
The bracket set named in the title is included. Check the package contents, including any screws, against your installation before starting.
Not included: PIAA lights, which are separate parts.
