Overview

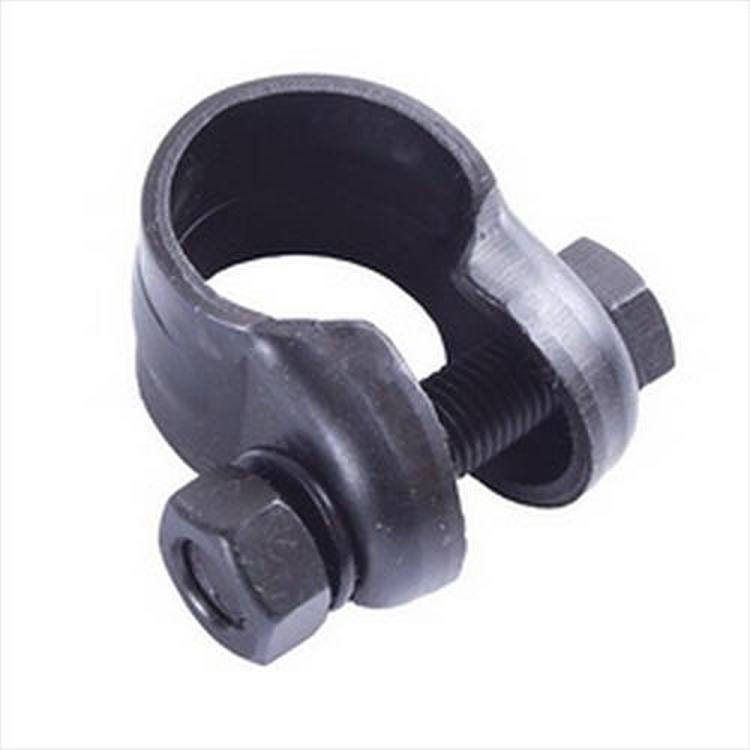

The Omix-ADA 18047.01 is a tie rod tube clamp, the clamp that holds the tie rod tube and adjusting sleeve together, for Jeep CJ and Willys models from 1946 to 1986.
It is a factory replacement part and covers the CJ3, CJ5, CJ6 and CJ7 lines, the 1981–1985 Scrambler, and the Willys CJ-2, CJ-3, CJ-5 and CJ-6 entries.
Key features
- Factory replacement tie rod tube clamp
- Covers Jeep CJ3, CJ5, CJ6 and CJ7 models across the years listed
- Includes Scrambler coverage for 1981–1985 models
- Omix-ADA direct fit with a limited five year manufacturers warranty
Clamps and tie rod geometry
A tie rod tube clamp holds the tube and adjusting sleeve together so the steering length stays put once it is set. Early CJ steering often runs through years of dirt and salt, which can weaken clamp bolts and corrode the clamp body. Clean the mating surfaces before assembly so the clamp grips evenly and does not slip under steering loads.
When replacing a clamp, check the tube for dents and the threads for damage, because a rough tube will not hold the clamp square. Measure the sleeve length before loosening the clamp so it can be set close to the original. Tighten the clamp evenly, then have front alignment checked, since clamp position changes toe. Re-check the clamp after the first few drives.
- Clean mating surfaces before assembly
- Check tube for dents
- Measure sleeve length before loosening
Specifications
| Brand | Omix-ADA |
|---|---|
| Part number | 18047.01 |
| UPC | 804314068509 |
| Part type | Tie rod tube clamp |
| Replacement type | Factory replacement |
| Fit type | Direct fit |
| Warranty | Limited five year manufacturers warranty |
Vehicle fitment
It fits the 1959–1960 and 1968–1983 Jeep CJ5, 1959–1960 and 1968–1975 CJ6, 1959–1960 CJ3, 1976–1986 CJ7, 1981–1985 Scrambler, and the Willys CJ-2 (1946–1949), CJ-3 (1949–1958), CJ-5 (1955–1958) and CJ-6 (1956–1958).
Match your vehicle’s year, model and trim to these entries before buying, especially for Wrangler, Cherokee and Grand Cherokee applications.
Installation notes
Clamp position affects tie rod length settings, so have front alignment checked after installation.
What’s included
Look over the included items against your installation first.
