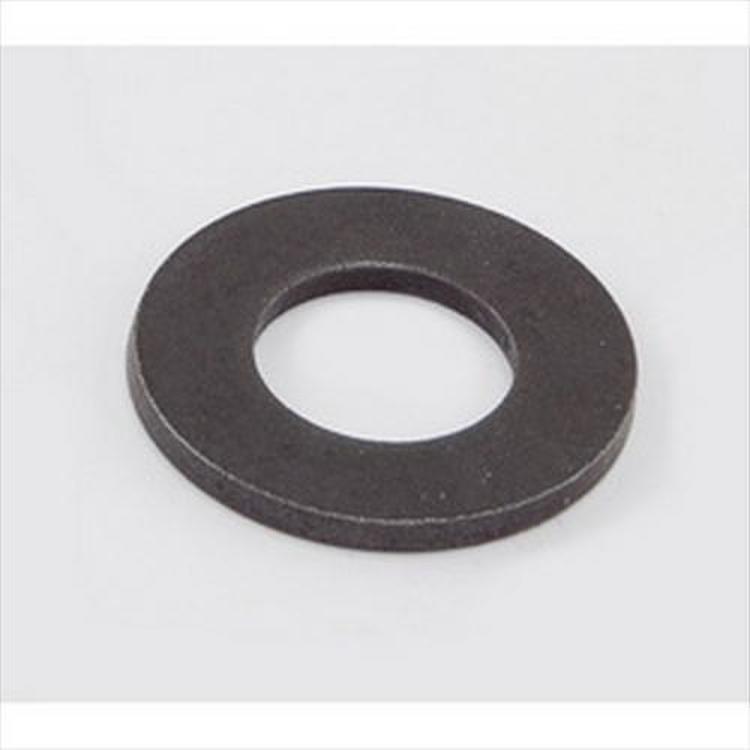

Omix-ADA Dana 30/35 Pinion Washer – 16584.02

Omix-Ada

$10.34Usually ships within 2 to 3 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pinion washer for Dana 30 and Dana 35 axles
  • Omix-ADA part number 16584.02, UPC 804314008918
  • Fits CJ, Cherokee XJ, Grand Cherokee ZJ and WJ, Wrangler YJ, TJ, LJ and select JK trims
  • Direct fit for Dana 30 and Dana 35 axles

Description

Overview

The Omix-ADA 16584.02 is a pinion washer for Dana 30 and Dana 35 differentials. Omix-ADA builds it as a direct OE replacement to the original Jeep specifications.

It fits Cherokee (XJ) 1987–2001, CJ-3, CJ-5, CJ-6 and CJ-7 models, the Scrambler 1981–1985, Grand Cherokee (ZJ) 1993–1998 and (WJ) 1999–2004, Wrangler (YJ) 1987–1995 and (TJ) 1997–2006, and Wrangler (LJ) Unlimited 2004–2006. It also fits the Willys CJ-2, CJ-3, CJ-5 and CJ-6 and the Willys MB.

Key features

  • Direct OE replacement built to original specifications
  • Pinion washer for Dana 30 and Dana 35 axles
  • Fits many CJ, Cherokee, Grand Cherokee and Wrangler models

Pinion preload and shims

A pinion washer sits behind the pinion bearing and helps set the preload that keeps the gear mesh stable. If the washer is worn, damaged or the wrong thickness, preload can change, which shows up as whine, looseness or a rough feel when turning the pinion. Matching the washer to the old one is the safest approach before assembly.

After installing, check pinion preload with a torque reading and confirm the pinion nut is tightened to the value in the service manual. Recheck the gear mesh if the carrier was disturbed. Keeping a note of the old washer’s thickness helps if the preload needs adjusting later.

  • Compare the new washer to the old one
  • Check preload with a torque reading
  • Recheck gear mesh if the carrier was moved

Specifications

Brand Omix-ADA
Part number 16584.02
UPC 804314008918
Axle Dana 30 and Dana 35
Component Pinion washer

Vehicle fitment

Fitment covers these Jeep models: Cherokee (XJ) 1987–2001; CJ-3 1959–1960 and 1966; CJ-5 1959–1960 and 1966–1983; CJ-6 1959–1960 and 1966–1975; CJ-7 1976–1986; Grand Cherokee (WJ) 1999–2004; Grand Cherokee (ZJ) 1993–1998; Scrambler 1981–1985; Wrangler (YJ) 1987–1995; Wrangler (TJ) 1997–2006; Wrangler (LJ) 2004–2006 Unlimited; Willys CJ-2, CJ-3, CJ-5 and CJ-6; and Willys MB 1941–1942.

The Wrangler (JK) is listed only for 2007–2011, in the 70th Anniversary, Rubicon, Unlimited 70th Anniversary and Unlimited Rubicon trims. The list does not include the Liberty (KJ) or the Wrangler (JL).

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One pinion washer, Omix-ADA part number 16584.02.

SKU: OAI16584.02 Category:

Specification

Shipping weight 1.00 lbs
Package dimensions 15.00 × 9.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1987–2001Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep CJ31959–1960, 1966Base
Jeep CJ51959–1960, 1966–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ61959–1960, 1966–1975Base
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR
Jeep Willys CJ-21946–1949All
Jeep Willys CJ-31949–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All
Jeep Wrangler (JK)2007–201170th Anniversary, Rubicon, Unlimited 70th Anniversary, Unlimited Rubicon
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport
Willys MB1941–1942Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this washer fit both Dana 30 and Dana 35 axles?

Yes. It is made for Dana 30 and Dana 35 axles. Confirm your axle type before installing the washer, since the fit covers many Jeep models that use different Dana axles.

Does it fit a 2010 Wrangler JK?

Only in some trims. It fits the 2007–2011 Wrangler (JK) in the 70th Anniversary, Rubicon, Unlimited 70th Anniversary and Unlimited Rubicon trims. Confirm the trim and model year before installing, since the fit covers 2007–2011 only.

What are the part number and UPC?

The Omix-ADA part number is 16584.02 and the UPC is 804314008918. Use both numbers when matching this pinion washer to the one you are replacing on a Dana 30 or Dana 35 axle.

How do I tell if a pinion washer is worn or the wrong thickness?

A worn or incorrect washer can change pinion preload, which shows as noise, looseness or a rough feel when turning the pinion. Check the preload with a torque reading after assembly and compare the washer to the old one before installing.
