Overview

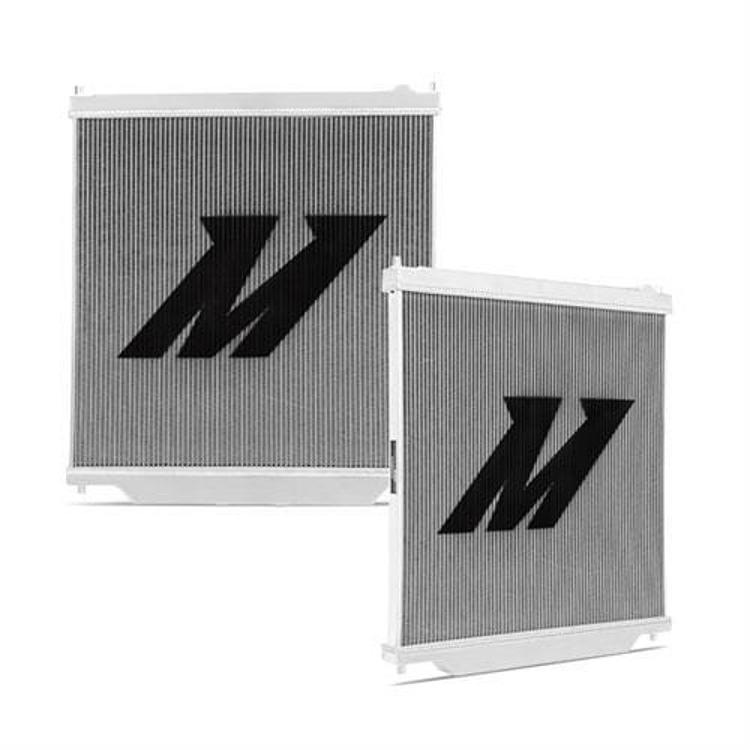

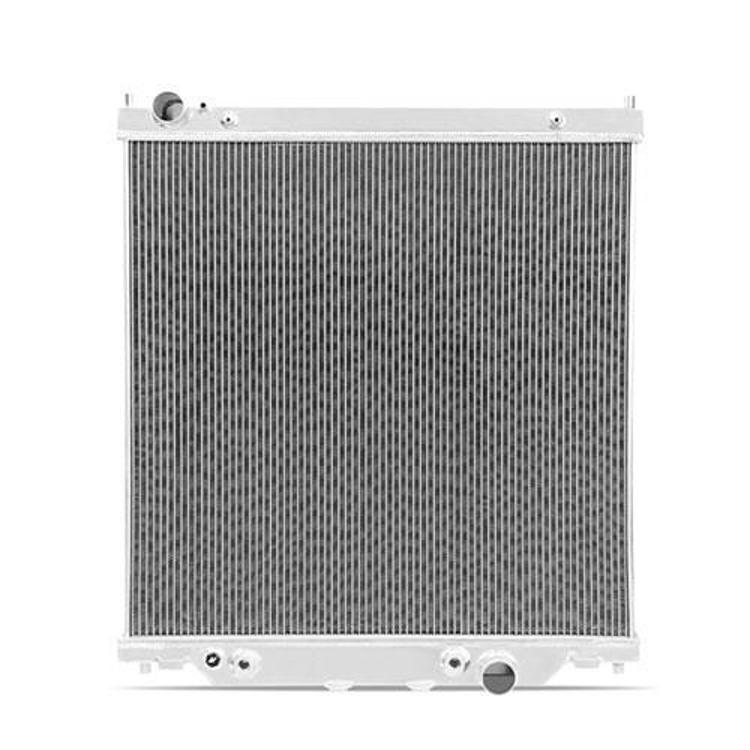

The Mishimoto MMRAD-F2D-60 is a direct-fit aluminum replacement radiator for the 6.0L Powerstroke diesel in 2003–2007 Ford Super Duty trucks. Mishimoto designed it as an upgrade over the factory radiator, built to maximize cooling efficiency and help protect a high-performance diesel from overheating. It suits owners who drive daily, haul or tow with their trucks.
The radiator uses a two-row core of 100% brazed aluminum with TIG-welded aluminum end tanks built for durability and longevity. The core is lightweight. It fits 2003–2007 Ford F-250 and F-350 Super Duty trucks, with trims shown in the fitment section below.
Key features
- Direct factory fit for the 6.0L Powerstroke, with no cutting or modification required.
- Full aluminum construction with a 100% brazed aluminum two-row core.
- Core measures 1.42 inch thick.

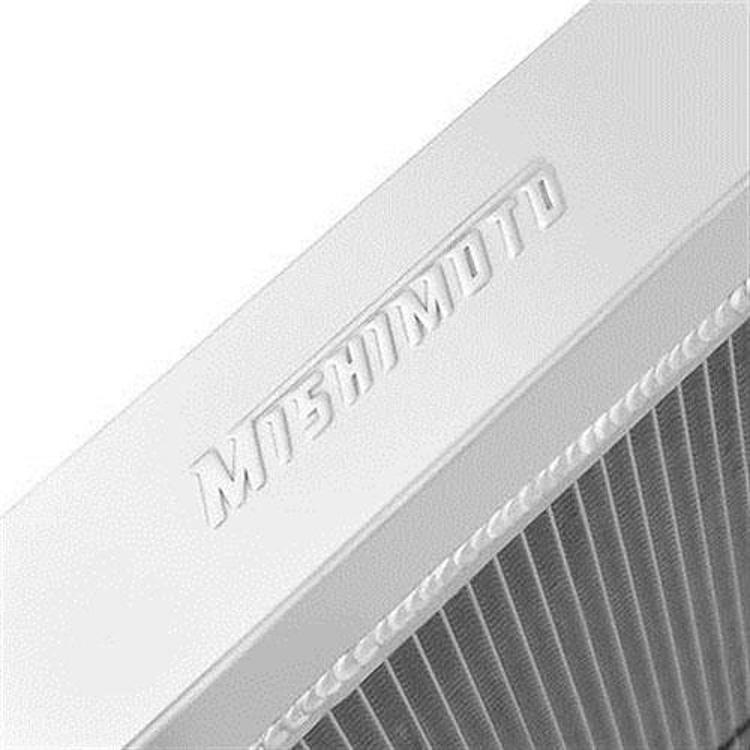

- TIG-welded aluminum end tanks for added durability.
- Lightweight core design.

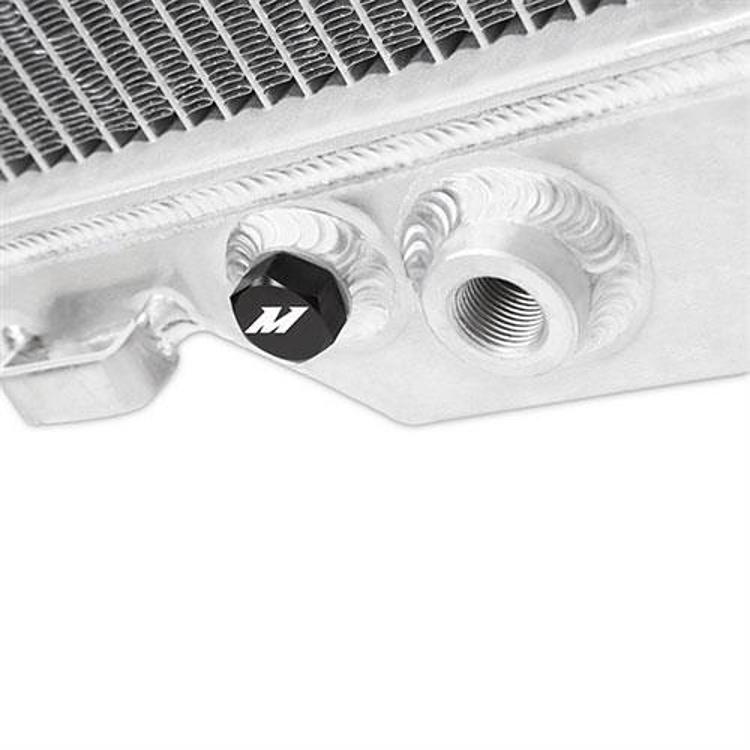

- Magnetic drain plug included.

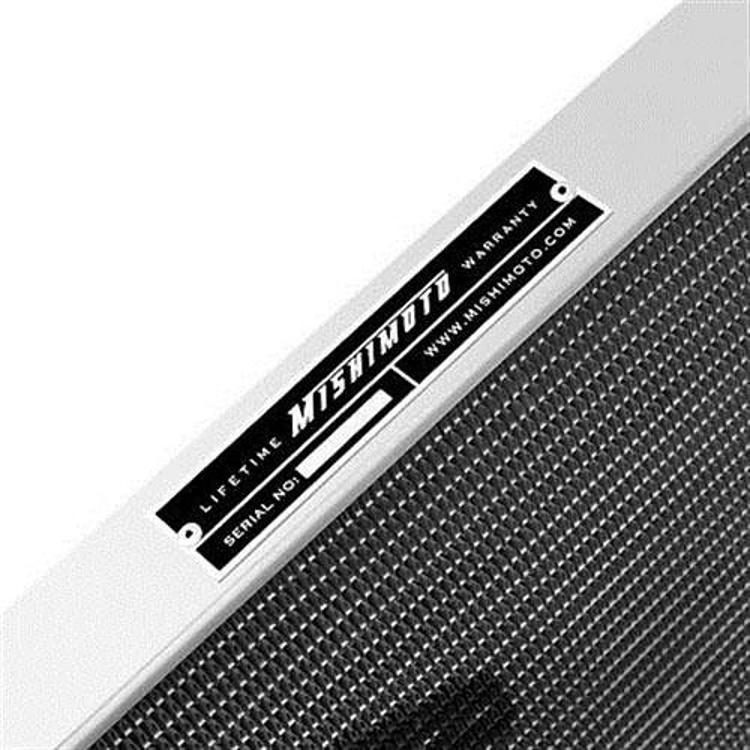

- Backed by the Mishimoto Lifetime Warranty.
Keeping a 6.0L cool
The 6.0L Powerstroke runs hot under load, so the cooling system is worth reviewing at the same time as the radiator. Hoses, the radiator cap and the coolant should be checked and replaced when they show wear. Keeping the system clean helps the new core do its job, especially on trucks that tow or idle in traffic.
Related parts often replaced with a radiator include the fan clutch, the thermostat and the coolant recovery hose. Look for coolant residue at the tank seams, cracks around the end tank joints, and a fan that is hard to turn by hand. Catching a small leak early keeps a towing trip from becoming a roadside repair.
- Check hose clamps and hose condition
- Replace the radiator cap
- Inspect the fan clutch for play
Specifications
| Brand | Mishimoto |
|---|---|
| Part number | MMRAD-F2D-60 |
| UPC | 748354012002 |
| Engine application | 6.0L Powerstroke |
| Radiator type | Replacement, direct fit |
| Construction | Full aluminum |
| Core | Two-row, 100% brazed aluminum, 1.42 inch thick |
| End tanks | TIG-welded aluminum |
| Number of cores | Two |
| Included | Magnetic drain plug |
| Warranty | Mishimoto Lifetime Warranty |
Vehicle fitment
It fits these vehicles:
- 2003–2007 Ford F-250 Super Duty (Harley-Davidson Edition, King Ranch, Lariat, XL, XLT)
- 2003–2007 Ford F-350 Super Duty (Harley-Davidson Edition, King Ranch, Lariat, XL, XLT)
The list does not include other Ford models or engines. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this is a direct factory fit with no cutting or modification required, installation is intended as a straight swap for the stock radiator. Work on the cooling system only with the engine cold.
What’s included
The radiator comes with its magnetic drain plug and a two-row core. Check the package contents against your installation before starting.
