Overview

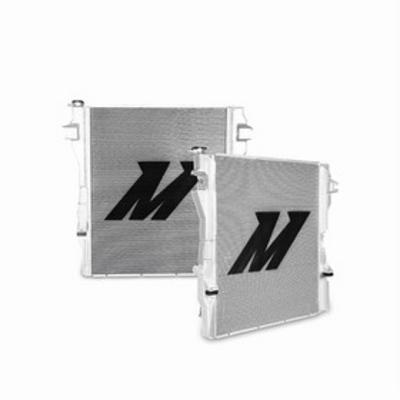

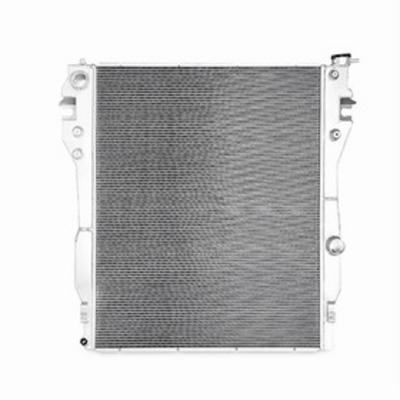

The Mishimoto Cummins Aluminum Radiator, part number M/AMMRAD-RAM-10, is a two-row performance aluminum replacement radiator for the 6.7L Cummins diesel in Dodge Ram trucks. It is a direct factory fit for the 2010 Dodge Ram 2500 and 3500 models named below. It is designed to improve cooling efficiency and help protect the truck from overheating.
The factory radiator may not handle the heat that comes with the power and torque of a 6.7L Cummins used for daily driving, towing or hauling. Mishimoto offers this aluminum radiator as an upgrade, with a core built for heat transfer and end tanks built for durability. Pairing it with Mishimoto’s Dodge 6.7L Cummins silicone coolant hose kit is suggested for a complete cooling upgrade.
Key features
- Two-row core made of 100% brazed aluminum
- Its core is 19% thicker than the factory radiator
- TIG-welded aluminum end tanks for durability and longevity
- Direct factory fit with no cutting or modification required

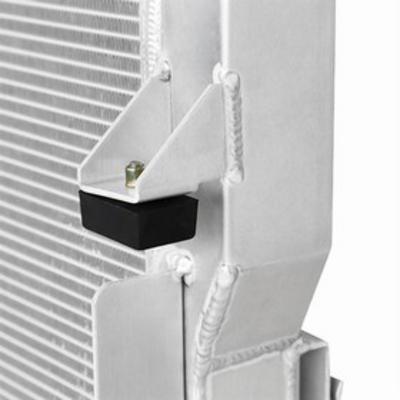

- Two rubber mounting bushings included

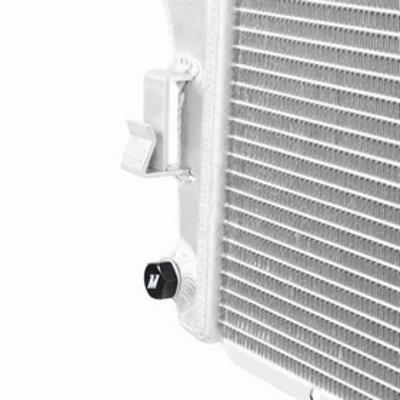

- Mishimoto M12 x 1.5mm magnetic drain plug to help keep metal fragments out of the coolant
Cooling upgrades for towing
A radiator upgrade works best as part of a full cooling check. Heavy towing and hauling load the system for long periods, so the thermostat, water pump, fan operation and radiator cap all affect how well heat leaves the engine. Look at the hoses while the system is drained, since softened or swollen hoses can fail under pressure once the engine is working hard.
Choose a coolant that matches the engine’s requirements and do not mix incompatible types. Keep the radiator face clear of bugs and road grime, because a dirty core reduces airflow even when the new radiator is clean. After installation, watch the temperature gauge on long grades and recheck the drain plug and hose clamps after the first few heat cycles.
- Inspect the thermostat and radiator cap
- Check the fan clutch or electric fan operation
- Flush the system when the coolant looks rusty
Specifications
| Brand | Mishimoto |
|---|---|
| Part number | M/AMMRAD-RAM-10 |
| Type | Replacement |
| Number of cores | Two |
| Engine | Dodge 6.7L Cummins |
| Core material | 100% brazed aluminum |
| End tanks | TIG-welded aluminum |
| Core thickness | 19% thicker than factory radiator |
| Drain plug | M12 x 1.5mm magnetic |
| Mounting bushings | Two rubber |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2010 Dodge Ram 2500 in Laramie, SLT, ST and SXT trims, and the 2010 Dodge Ram 3500 in Laramie, SLT and ST trims. Other model combinations are not covered, and other model years do not fit.
The Ram 1500 and model years other than 2010 do not fit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because it is a direct factory fit with no cutting or modification needed, it seats in the factory mounting points. Drain the cooling system before removing the old radiator, and use the magnetic drain plug to catch metal debris. Let the engine cool fully before opening any coolant fittings.
What’s included
The package includes the aluminum radiator, two rubber mounting bushings and a Mishimoto M12 x 1.5mm magnetic drain plug.
Not included: the Dodge 6.7L Cummins silicone coolant hose kit, which Mishimoto suggests pairing with this radiator as a separate purchase.
