Overview

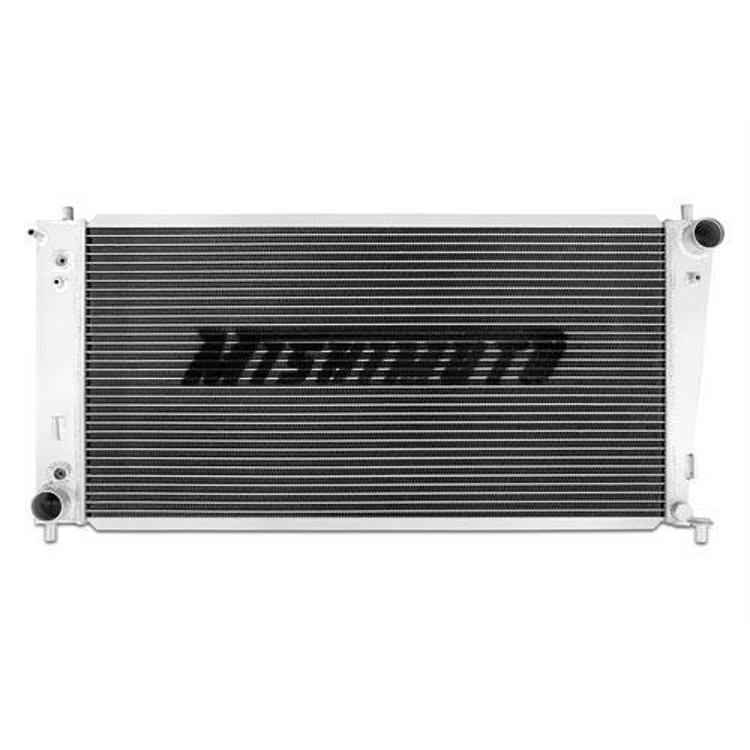

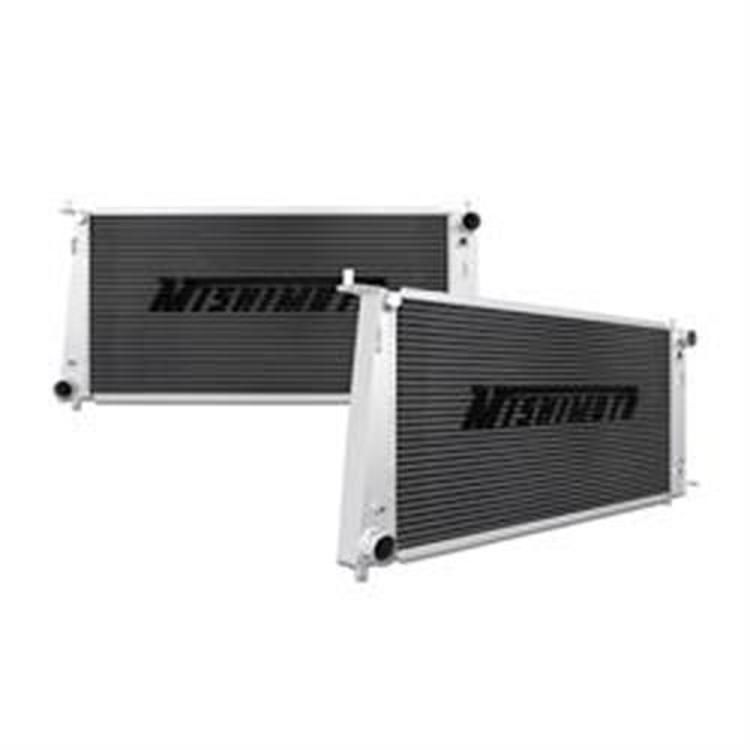

The Mishimoto MMRAD-LTN-99 is a performance aluminum radiator for the 1999 to 2003 Ford F-150 Lightning and an upgrade for the stock Lightning radiator. It also fits several F-150, F-250, F-350 Super Duty, Expedition, Navigator and Blackwood model years.
The unit includes an internal transmission cooler for automatic transmissions. It is designed to improve cooling efficiency by up to 30 percent over the stock radiator.
Key features
- Two-row, 2.2 inch thick brazed aluminum core
- Internal transmission cooler for automatic transmissions

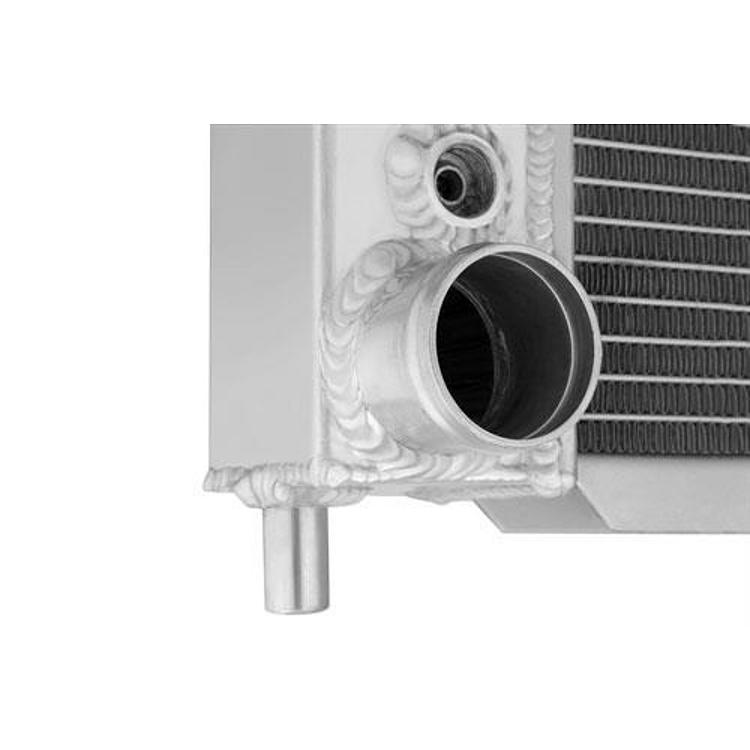

- TIG-welded end tanks and polished end tanks
- Direct OEM fit with no cutting or modification
- Magnetic drain plug included
Lightning transmission cooling
An internal transmission cooler sits inside the radiator tank and uses coolant to pull heat from automatic transmission fluid. It works best when the cooling system is in good order, so the coolant level, the cap and the thermostat should be checked during installation. Keeping the transmission fluid at a steady temperature protects the transmission over long tows.

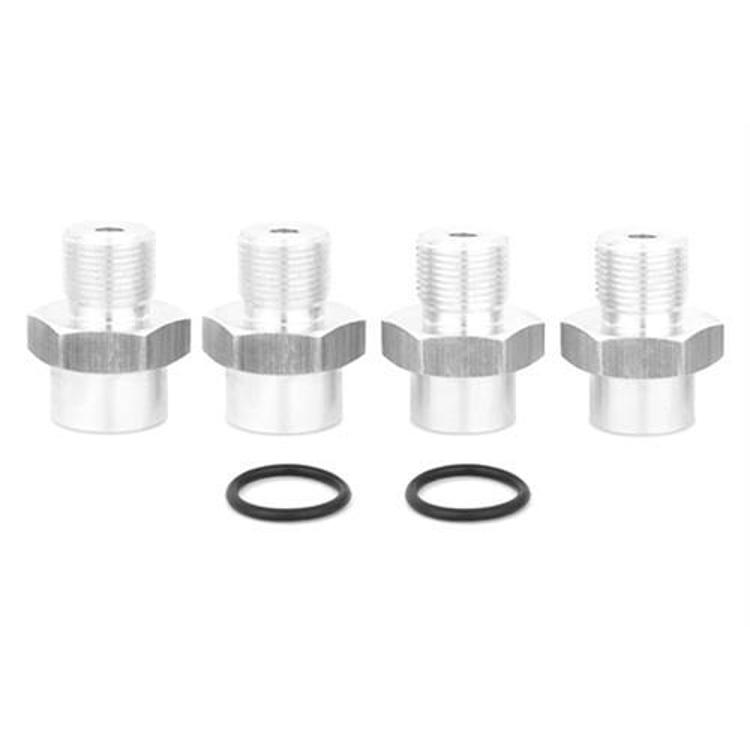

Because the cooler is part of the radiator, the transmission lines connect to the radiator fittings. Check that the line size and fittings match before fitting, and inspect the lines for chafing. Flushing the transmission cooler when the radiator is replaced removes debris that could otherwise reach the transmission. Clean fluid and sound lines keep the cooler doing its job.
- Check transmission line fittings for matching threads
- Inspect lines for chafing against the frame
- Flush the cooler during the swap
Specifications
| Brand | Mishimoto |
|---|---|
| Part number | MMRAD-LTN-99 |
| UPC | 748354799668 |
| Core | Two-row brazed aluminum, 2.2 inch thick |
| Transmission cooler | Internal, for automatic transmissions |
| Included | Magnetic drain plug |
| Type | Replacement, direct fit |

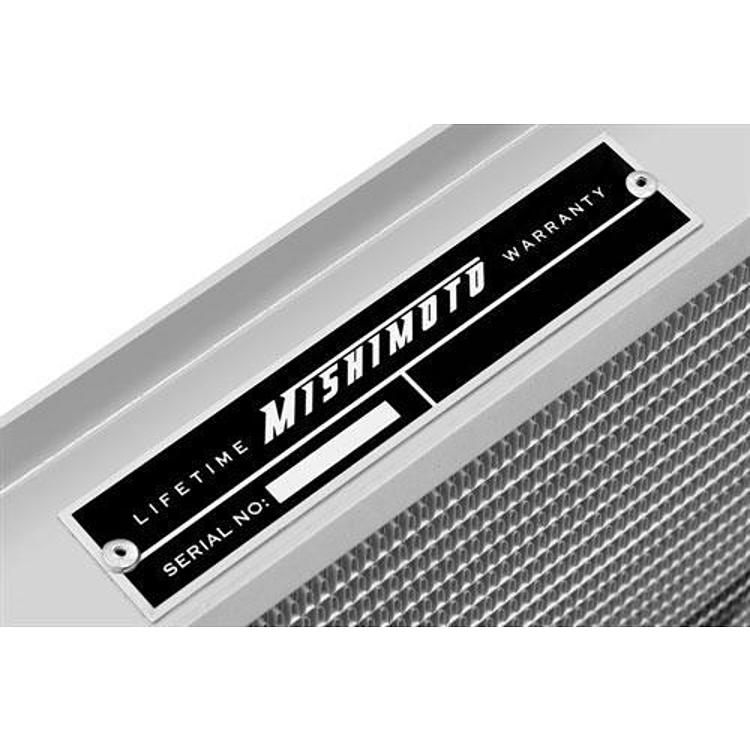

| Warranty | Mishimoto Lifetime Warranty |
Vehicle fitment
Fits the 1999 to 2003 Ford F-150 Lightning, the 1998 to 2004 Ford F-150, the 2004 Ford F-150 Heritage, the 1999 Ford F-250, the 1999 to 2003 Ford F-250 and F-350 Super Duty, the 1999 to 2002 Ford Expedition, the 1999 to 2001 Lincoln Navigator and the 2002 Lincoln Blackwood.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for model years not shown above.
Installation notes
Because the unit has an internal transmission cooler, the automatic transmission lines connect to the radiator. Check that the fittings match your lines before installation, and drain the cooling system first.
What’s included
One aluminum radiator with a magnetic drain plug and an internal transmission cooler.
Not included: Check the coolant, hoses and transmission lines against your installation before starting.
