Mishimoto Powerstroke Aluminum Radiator – MMRAD-F2D-99

Mishimoto

$914.31In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Replacement aluminum radiator for the 7.3L Powerstroke diesel, part number MMRAD-F2D-99
  • Fits 1999-2003 Ford F-250 and F-350 Super Duty and 2000-2003 Ford Excursion
  • Full aluminum construction with a two-row, 2.2 inch thick brazed core and TIG-welded end tanks
  • Includes a magnetic drain plug

Description

Overview

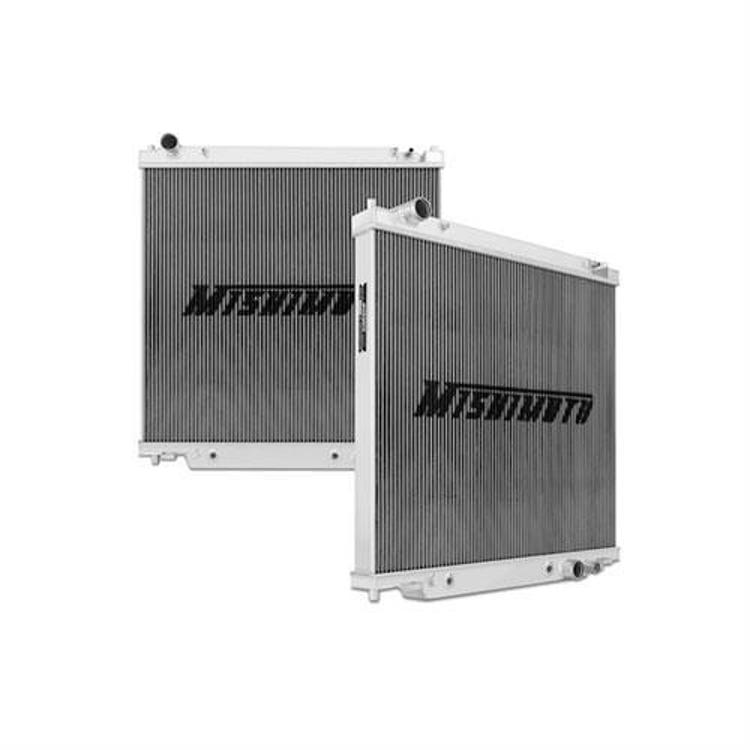

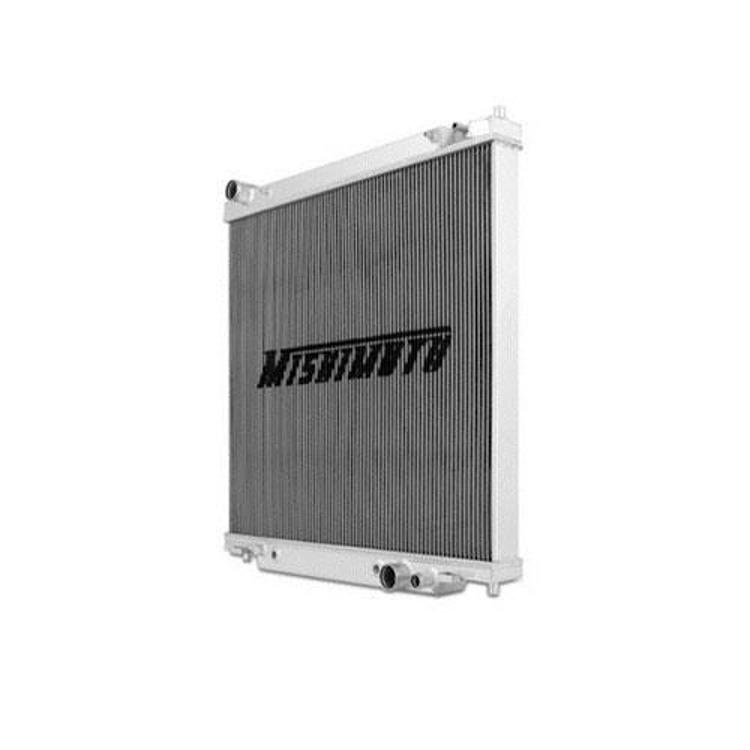

The Mishimoto MMRAD-F2D-99 is a full aluminum replacement radiator for the 7.3L Powerstroke diesel. It is a direct fit for the 2000-2003 Ford Excursion and the 1999-2003 Ford F-250 and F-350 Super Duty.

It is built for work trucks, mud trucks and modified pull trucks, where the cooling system carries heavy loads. It has a two-row brazed aluminum core and TIG-welded end tanks. It installs in place of the original unit and bolts up to the stock fan shroud.

Key features

  • Full aluminum construction for the 7.3L Powerstroke
  • Two-row brazed aluminum core, 2.2 inch thick

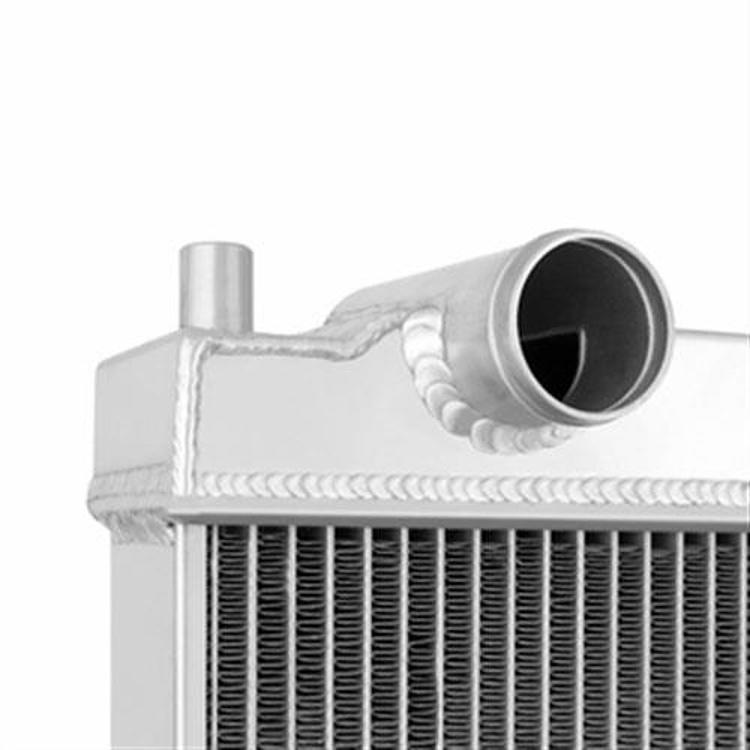

  • TIG-welded end tanks
  • Precision engineered for factory fitment
  • Bolts up to the stock fan shroud
  • Magnetic drain plug included

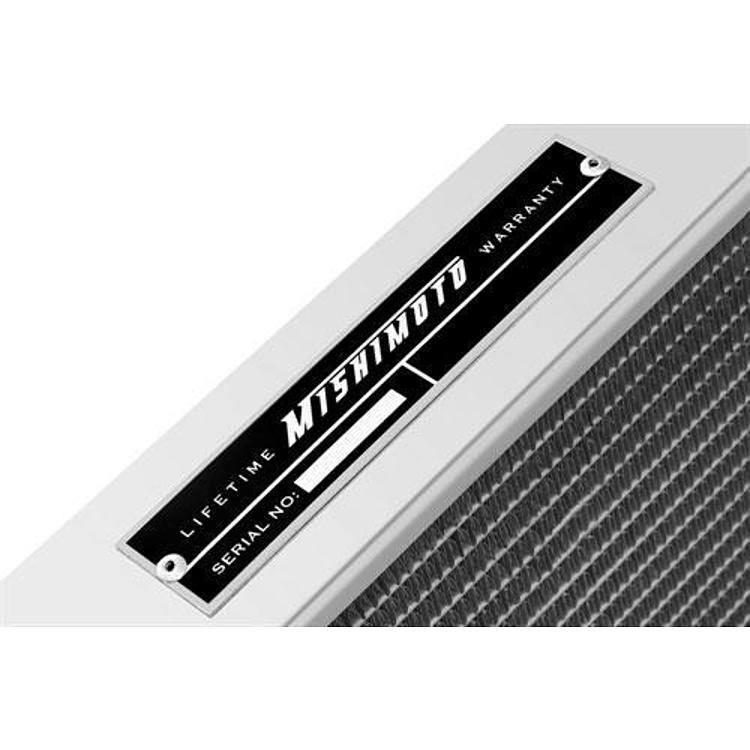

  • Backed by the Mishimoto lifetime warranty

Work truck cooling setup

Heavy towing and low-speed hauling put the cooling system under constant heat, and the radiator is where that heat leaves the coolant. An aluminum core with two rows helps move heat efficiently, and a full aluminum build is lighter than many older units. Clean airflow through the core and a sound fan shroud keep it doing that job.

On a diesel truck, a radiator swap is a good time to inspect the water pump, thermostat, hoses and fan clutch. Hoses that feel stiff or swollen should go in at the same time. Check the fan shroud mounting points for cracks, since the original shroud is reused with this radiator.

  • Clean bugs and debris from the core face regularly
  • Inspect the fan clutch for play or wobble
  • Replace hoses that show cracks or soft spots
  • Flush and refill with the coolant your engine requires

Specifications

Brand Mishimoto
Part number MMRAD-F2D-99
UPC 748354810363
Type Replacement
Fitment Direct Fit
Engine application 7.3L Powerstroke
Number of cores Two
Core thickness 2.2 inch
Core material Brazed aluminum
Construction Full aluminum, TIG-welded end tanks
Included hardware Magnetic drain plug
Warranty Mishimoto lifetime warranty

Vehicle fitment

Mishimoto’s manufacturer fitment list covers the 2000–2003 Ford Excursion in Eddie Bauer, Limited and XLT trims, and the 1999–2003 Ford F-250 Super Duty and F-350 Super Duty in Lariat, XL and XLT trims. The trim names shown are the trims Mishimoto lists.

Not on the list: the F-450 and F-550 Super Duty, the F-150, and the 2004 and later Super Duty models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radiator is designed to bolt up to the stock fan shroud, so the original shroud is reused. Because it is a direct-fit replacement, it is meant to take the place of the factory radiator on a matching truck. Let the engine cool completely before opening the cooling system, since hot coolant can cause burns.

What’s included

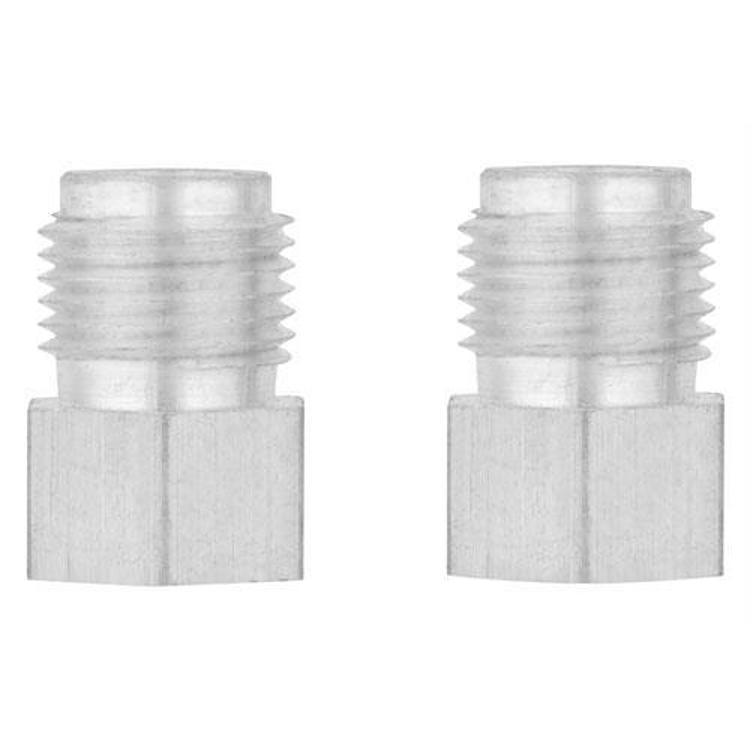

The magnetic drain plug is included with the radiator.

SKU: M/AMMRAD-F2D-99 Category:

Specification

Shipping weight 40.00 lbs
Package dimensions 37.00 × 33.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Ford Excursion2000–2003Eddie Bauer, Limited, XLT
Ford F-250 Super Duty1999–2003Lariat, XL, XLT
Ford F-350 Super Duty1999–2003Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Mishimoto MMRAD-F2D-99 fit a 1999 to 2003 Ford F-250 Super Duty?

Yes. It is a direct fit for the 1999-2003 Ford F-250 Super Duty in Lariat, XL and XLT trims. It is built for factory fitment and bolts up to the stock fan shroud. Confirm your vehicle's year, model and trim before ordering.

Does the radiator include a drain plug?

Yes. Mishimoto includes a magnetic drain plug with the Powerstroke aluminum radiator. The radiator is a two-row design with a brazed aluminum core and TIG-welded end tanks, and it carries the Mishimoto lifetime warranty.

What is the core made of and how thick is it?

It has a two-row core made of brazed aluminum, 2.2 inches thick, with TIG-welded end tanks. The construction is full aluminum throughout.

Is the Mishimoto MMRAD-F2D-99 a direct fit or a universal radiator?

It is a direct-fit replacement, not a universal radiator, for the 7.3L Powerstroke trucks covered by the fitment above. It is a replacement type unit.

How do I check the drain plug after installing the radiator?

Confirm the magnetic drain plug is seated and tightened, then check the joint for seepage after refilling. Recheck the coolant level once the engine is warm and again after the first few drives. A magnetic plug also collects metal debris for inspection at service.

Do I need to replace the shroud with this radiator?

Usually no, since the radiator is designed to bolt up to the stock fan shroud. Inspect the shroud for cracks and secure mounts before installing. Replace it only if it is damaged or the mounting points no longer hold the radiator firmly.
