Overview
The Kleinn Train Horns 6270 is a sealed 130 psi air compressor and 1 gallon air tank kit made to power Kleinn air horns. It is an air system rather than a horn.
The compressor bodies are sealed and resist moisture and dust, which Kleinn says makes exterior mounting practical. The kit includes a snorkel system and check valves to protect the compressors, and the 5-port tank has a drain port on the bottom regardless of how it is mounted.
Key features
- Sealed, moisture and dust resistant compressor bodies for exterior mounting
- 130 psi maximum pressure with 100/130 pressure switch settings
- 1.0 gallon tank with 5 ports and a bottom drain port
- Snorkel system and check valves protect the compressor
- Thermal protection and a 15% duty rating
- Universal fit, with no specific vehicle named
Mounting a compressor outdoors
An air system mounted outside the cab has to handle weather, road spray and temperature swings. Sealed compressor bodies help, but placement still matters. Pick a spot where the snorkel intake can draw clean air, and keep it away from exhaust heat and standing water.
Because the compressor cycles between fills, plan the wiring for its current draw and use a fuse rated for the load. Secure the tank so vibration cannot loosen the fittings, and make sure the drain port is reachable for regular draining. Check the mounting bolts periodically, especially on rough roads.
- Route the snorkel away from splash zones
- Use wire sized for the load
- Keep the tank drain port easy to reach
- Inspect check valves if the tank bleeds down overnight
Specifications
| Brand | Kleinn Train Horns |
|---|---|
| UPC | 854508003052 |
| Compressor dimensions | 6.25 in L x 3.3 in W x 4.9 in H |
| Tank dimensions | 10.75 in L x 5.75 in W x 8 in H |
| Tank capacity | 1.0 gallons |
| Max pressure | 130 psi |
| Pressure switch settings (on/off) | 100/130 |
| Duty rating | 15% |
| CFM at 0 psi | 1.17 |
| Amp draw | 14 |
| Thermal protection | Yes |
| Listed weight | 11 lbs |
| Fitment type | Universal fit |
Vehicle fitment
The air system is universal fit and is not built for a particular vehicle.
Check that your mounting location has room for the compressor and tank, and that the remote mount intake filter can be routed before ordering.
Installation notes
The listed amp draw is 14, so size the wiring and fuse for that load. The duty rating is 15%, so let the compressor rest between fills. Drain the tank through its bottom port before any service work.
What’s included

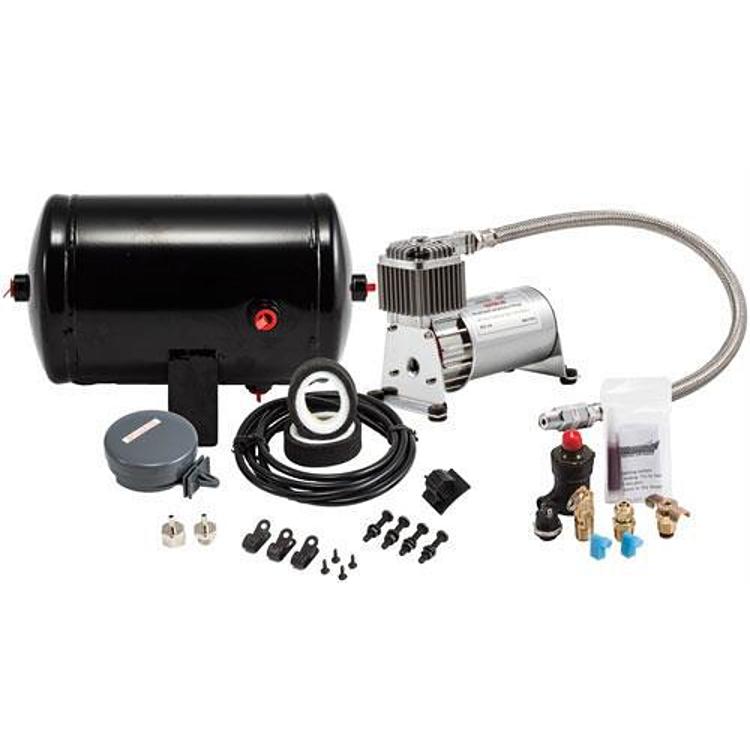

Compressor, 1 gallon air tank, snorkel system, check valves, pressure switch, safety valve, compression fitting, drain cock, remote mount intake filter, and mounting brackets with hardware.
Not included: Air horns. The 6270 is the air system that powers Kleinn air horns, so horns must be purchased separately.
