Overview
The Jeep 77070094 is a 2 inch lift kit with four FOX Racing Shox 2.0 Performance Series IFP shocks, fitting the 2007–2011 Jeep Wrangler (JK) on Rubicon, Sahara, Sport and X models. It is sold through Jeep’s Mopar line and carries a Mopar warranty.
The kit lifts a two-door JK with tuned coil springs and the track bar and brake line brackets needed for a complete installation. Jeep rates it for tires up to 35×12.50.
Key features
- FOX 2.0 Performance Series IFP shocks, four included
- Brushed aluminum shock body, which FOX says dissipates heat faster than steel
- Hard chrome plated, heat treated shock shaft with a redundant sealing system
- No dust boot required, per Jeep’s description of the shock
- Four tuned coil springs
- Front fixed sway bar links and adjustable cam bolts
- Rear track bar bracket and brake hose relocation brackets
Shock and coil maintenance
Remote and non-remote shocks rely on the same basic principle, a damping piston moving through oil. The FOX 2.0 IFP design uses an internal floating piston to manage oil pressure, which helps keep damping consistent as the shock heats up. Keeping the shock bodies clean lets the aluminum body shed heat, which supports steady performance on long trail runs.
Coil springs rarely wear out quickly, but spring seats and rubber isolators can compress or crack over time. Inspect them when the shocks are serviced. Adjustable cam bolts need periodic checks, since alignment can drift after the first few drives. Recheck the brake line brackets after the first trail outing, because the brake hose relocation can loosen as the suspension settles.
Specifications
| Brand | Jeep |
|---|---|
| Part number | 77070094 |
| UPC | 700007189145 |
| Lift | 2 inch |
| Suspension type | 4-link |
| Shock brand | FOX Racing Shox 2.0 Performance Series IFP |
| Body style | 2-door models |
| Max tire size | 35×12.50 |
| Warranty | Mopar warranty |
Vehicle fitment
It fits the 2007–2011 Jeep Wrangler (JK) on Rubicon, Sahara, Sport and X models.
Four-door Wrangler JKs and JK model years outside 2007–2011 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit includes brake hose relocation brackets and a brake line, so the brake lines are moved as part of the install. Adjustable cam bolts are included for alignment, and the track bar bracket is a required part of this kit.
What’s included

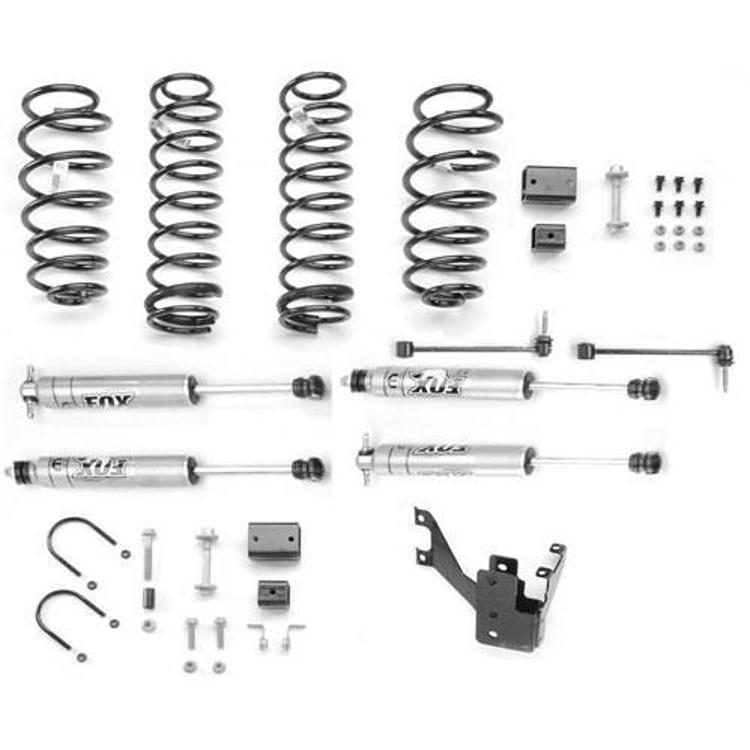

The kit includes four FOX 2.0 IFP shocks, four tuned coil springs, brake line, track bar brackets and all the hardware required for installation.
