Overview
The Fabtech FTS24104 is a 3-inch budget lift with Stealth monotube shocks for the 2007–2015 Jeep Wrangler (JK). It uses the factory coilover shocks on a steel spacer system, with performance rear shock absorbers.
The front differential is relocated to keep CV angles proper, and a 1/4-inch thick steel skid plate guards the front. Confirm fit for your vehicle’s year, model and trim before ordering, and do not assume the kit suits other applications.
Key features
- 3-inch budget lift system
- Stealth monotube shocks included
- Front spacer system that keeps the factory coilover assembly
- Thick wall DOM tubular arms with extended range ball joints.
- 1/4-inch thick steel skid plate
- Performance rear shock absorbers
Budget lift tradeoffs
Budget lifts generally keep the factory coilover assemblies and add spacers, which means the stock shock and spring pieces stay in service. That approach is simpler and less costly, but the factory parts still set the limits on how the front rides after the lift. Inspect worn coilovers, bushings and ball joints before installing, since aging parts affect how the lift settles.
Front differential relocation changes driveline angles, so the driveshaft and axle joints should be checked once the kit is in. Relocation bracket bolts can loosen over the first drives, so recheck them along with the skid plate fasteners. Rear blocks shift the axle, which can stretch brake lines on some trucks, so check those too.
- Recheck driveline angles after installation
- Inspect brake lines at the rear
- Torque skid plate fasteners after the first drives
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS24104 |
| UPC | 674866090965 |
| Lift height | 3 inches (range 2.5 to 3.5 inches) |
| Suspension type | Coil spring kit |
| Rear lift | 1 1/2-inch lift block and U-bolts at the rear. |
| Skid plate | 1/4-inch thick steel |
| Shocks | Stealth monotube shocks; performance rear shock absorbers |
| Tire clearance | The kit clears 33-inch tall tires. |
Vehicle fitment
The kit fits the 2007–2015 Jeep Wrangler (JK), including Unlimited models.
Model years before 2007 and after 2015 are not included. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The front system relocates the differential, so check driveline angles after installation. The rear uses a 1 1/2-inch block, so confirm the rear parts match your truck before starting.
What’s included

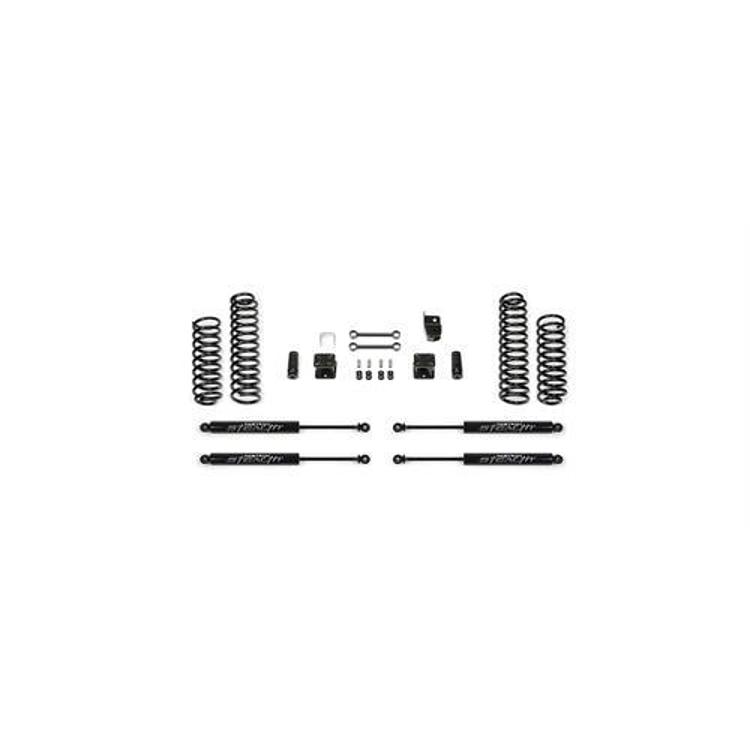

The front budget system, Stealth monotube shocks, 1/4-inch thick steel skid plate, and the rear block and U-bolts are included with the kit.
