Pro Comp 3.5 Inch Stage I Lift Kit with Pro Runner Shocks – K3102BP

Pro Comp Suspension

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch stage 1 coil spring lift with Pro Runner shocks at both ends
  • Coil springs at the front and the rear, shocks included
  • Fits 2007–2018 Jeep Wrangler (JK) models in the trims above
  • Lift height range 3 to 4.99 inches

Description

Overview

The Pro Comp K3102BP is a 3.5-inch stage 1 coil spring lift with front and rear Pro Runner shocks. It fits 2007–2018 Jeep Wrangler (JK) models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.

This is the Pro Runner shock version of the 3.5-inch ES9000 kit, K3102B. Coil springs are used at the front and the rear, and the shocks come in the box. The lift height range is 3 to 4.99 inches, which places this lift at the lower end of the 3.5-inch class.

Key features

  • 3.5-inch lift, stage 1
  • Front and rear coil springs
  • Front and rear Pro Runner shocks
  • Shocks included with the kit
  • Direct fit to the listed JK trims

Choosing a lift height

A 3.5-inch coil spring lift sits at a height that many owners use for larger tires without a full suspension rebuild. Before buying, think about the tire diameter you plan to run, the clearance under the axles and how much steering or driveline work you are prepared to add. Taller tires raise gearing and load on the drivetrain, so a lift is easier to live with when the tire size matches what the springs and shocks were designed around.

Coil spring lifts also change the geometry the rest of the suspension relies on. Sway bar links, brake lines and driveshaft angles are often checked or replaced during a lift, and shocks set at a new length should be inspected for wear before a long trip. Shocks built for sustained damping are often chosen for rough trail use, since they keep control over uneven ground.

  • Tire diameter and clearance under the axles
  • Sway bar links and brake line length
  • Driveshaft angles after the new height
  • Shock wear before long trips

Specifications

Brand Pro Comp Suspension
Part number K3102BP
UPC 70000705633
Lift 3.5 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Rear lift Coil springs
Front shocks Pro Runner
Rear shocks Pro Runner
Shocks included Yes

Vehicle fitment

The kit fits 2007–2018 Jeep Wrangler (JK) models in the trims named above. Other Wrangler generations are not covered by this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 3.5-inch coil spring lift changes the front alignment and the driveline angles. Set the alignment and check the driveline once the kit is installed, then re-check the ride height on each corner.

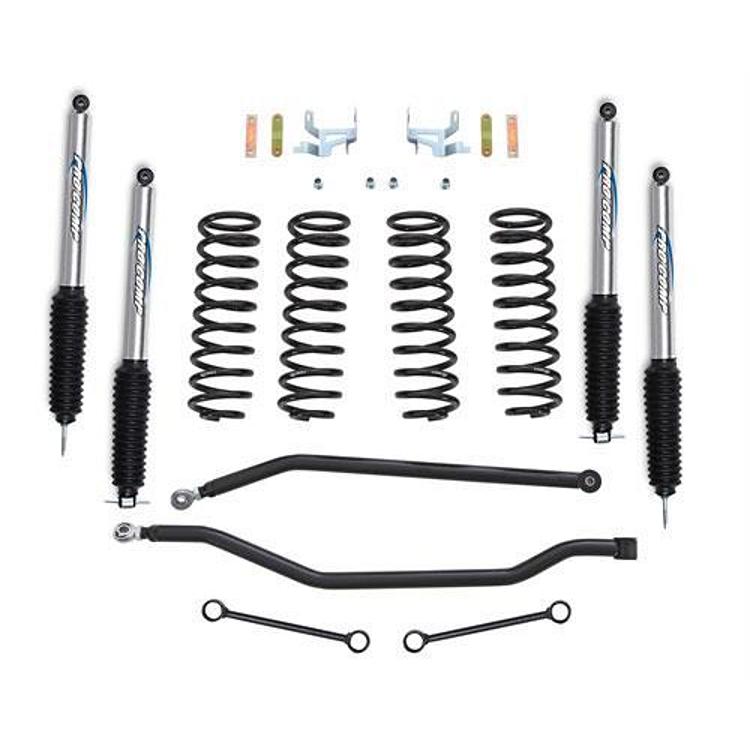

What’s included

The kit includes front and rear coil springs and front and rear Pro Runner shocks.

SKU: EXPK3102BP Category:

Specification

Shipping weight 109.90 lbs
Package dimensions 48.00 × 14.00 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How does the K3102BP compare with the K3102B?

Both are 3.5-inch stage 1 coil spring lifts. The K3102BP uses Pro Runner shocks at both ends, while the K3102B uses ES9000 shocks, so the shock package is the main difference between them.

Does the K3102BP fit a 2011 Jeep Wrangler JK?

Yes. The kit covers 2007 to 2018 Wrangler (JK) models, so a 2011 truck falls inside the range. Confirm that your trim is one of the trims above before ordering.

Are shocks included with the K3102BP?

Yes. Front and rear Pro Runner shocks come with the 3.5-inch coil spring lift, so no separate shocks are needed for the kit.

How often should coil spring lift shocks be checked?

Check them at every oil change and after the first few trail runs. Look for fluid leaks, worn bushings and a bouncy ride that does not settle. Shocks worn at the old height may not control the new spring rate well.
