Overview
The TeraFlex 1351060 is a 2.5 inch suspension lift kit for four-door right hand drive Jeep Wranglers (JK). It fits the 2007–2015 JK models, including the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X trims.
The kit includes 2.5 inch lift coil springs, rear sway bar links, a heavy duty rear track bar axle bracket, bumpstop extensions and all necessary hardware. It fits right hand drive JK Wrangler models, including Rubicon and Unlimited.
Suspension geometry and load tuning keep the factory stability controls working within Jeep’s original parameters. Tires up to 35 inches fit, with aftermarket wheels of 4.5 inch backspacing or less. Exhaust spacers, part number 2610000, may be needed on 2012 and later JKs when the front extended shock length is greater than 24.5 inches.
Key features
- 2.5 inch lift coil springs
- Rear sway bar links
- Heavy duty rear track bar axle bracket
- Bumpstop extensions
- All necessary hardware included
- Max tire size 35 inch
Right hand drive JK considerations
Right hand drive Wranglers have the steering wheel on the opposite side, so parts and wheel setup are usually considered differently from left hand drive trucks. When buying a lift for one, confirm the steering side with the seller and check that the body style and model year match the kit before ordering.
The coil springs and track bar bracket shift the axle position, so steering geometry and alignment should be checked after installation. Driveshaft angles also change with the lift, which can add vibration at highway speed if the angles grow too steep. Smoothing that out often means a closer look at the driveline rather than the springs alone.
Tire and wheel choice affects clearance more than most owners expect. Keep the backspacing within the range suited to the kit, and check the wheel offset when fitting larger tires. Inspect the sway bar links, bumpstop extensions and track bar bracket bolts after the first few trail runs.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1351060 |
| UPC | 843885021094 |
| Lift | 2.5 inch |
| Lift height range | 0 to 2.25 inches |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Body style | Four-door models |
| Max tire size | 35 inch |
Vehicle fitment
Covered models are the 2007–2015 Jeep Wrangler JK in 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X trims.
The lift height range is 0 to 2.25 inches, which differs from the 2.5 inch name. Confirm the finished height for your build before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
On 2012 and later JKs, exhaust work may be needed if the front extended shock length exceeds 24.5 inches. Check driveline angles and alignment once the lift is in.

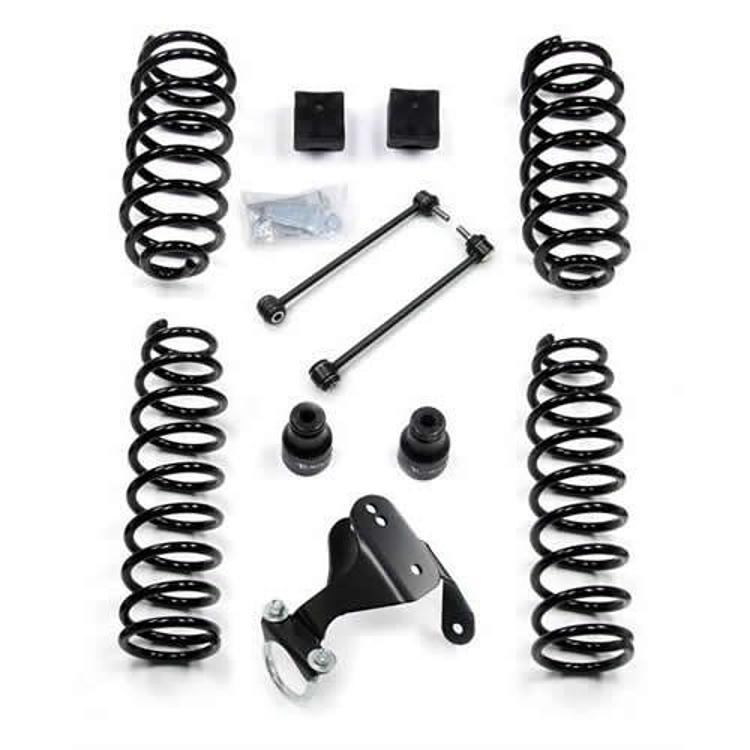

What’s included
The kit includes 2.5 inch lift coil springs, rear sway bar links, a heavy duty rear track bar axle bracket, bumpstop extensions and all necessary hardware.
