Overview

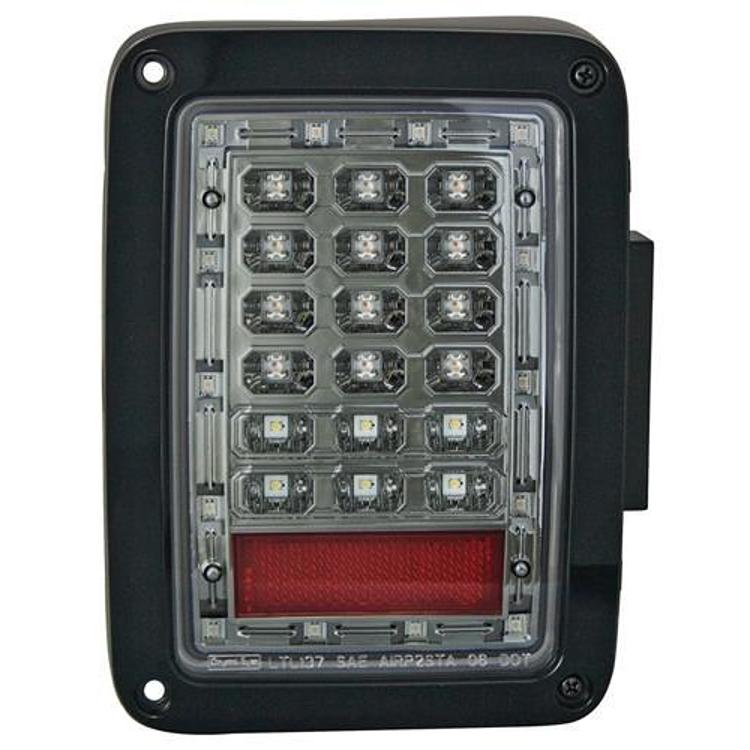

The In Pro Carwear LEDT-420CS is a left-position LED tail light for 2007–2015 Jeep Wrangler JK models, covering both 2-door and 4-door vehicles. It has a Platinum Smoke lens for an updated rear look.
The assembly provides full-function turn, stop, running and back-up lighting. Its LEDs are brighter than factory lamps, illuminate quicker and last longer. Installation means cutting the OE lamp pigtail and splicing it onto the new assembly with the included hardware.
Key features
- Platinum Smoke LED lens for an updated rear appearance
- Full-function turn, stop, running and back-up lights
- Described by the manufacturer as brighter than factory lights
- Hardware included for splicing onto the OE pigtail
- Supplied as a pair for left-position use
Splicing and wiring tips
A pigtail splice carries the full load of every lamp function, so the joint has to hold up to vibration and moisture. Crimp connectors sealed with heat-shrink tubing are the usual approach, and each splice should be placed where it cannot rub on the body or the interior trim. Tape or secure the wire bundle so it does not pull when the lamp is refitted.
Before you cut anything, test the old lamp circuit to confirm which wire carries each function. Label the wires as you go, since turn, stop, running and back-up circuits can look similar in color. Test the new assembly with the engine running and the lights on, then check each function once more after the trim is back in place.
- Use crimp connectors with heat-shrink sleeves
- Keep each splice clear of moving parts and hot surfaces
- Label wires before cutting to keep the functions straight
Specifications
| Brand | In Pro Carwear |
|---|---|
| Part number | LEDT-420CS |
| UPC | 844176008947 |
| Position | Left |
| Lens finish | Platinum Smoke |
| Light type | LED |
| Body style | 2-door and 4-door models |
| Quantity | Pair |
Vehicle fitment
It fits 2007–2015 Jeep Wrangler (JK) vehicles, including the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X trims from that range.
The list does not cover the Wrangler JL or the earlier YJ, TJ and LJ generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The OE lamp pigtail must be cut and spliced to the new assembly, so use insulated connections and test every function before the interior trim goes back in.
What’s included
A pair of Platinum Smoke LED tail lights with the hardware needed for splicing.
Not included: the OE lamp pigtail, which must be cut for the splice.
