Overview

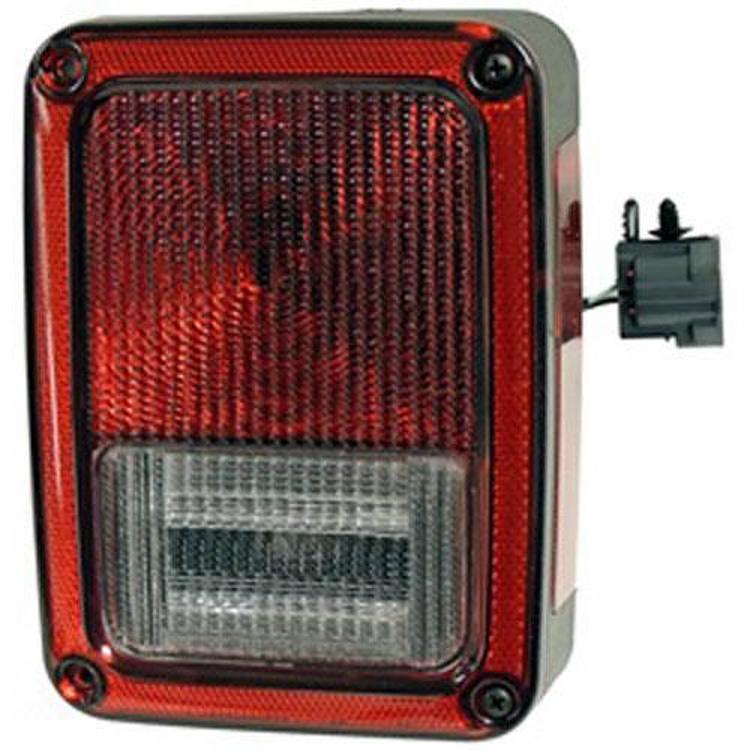

The Crown Automotive 55077890AC is a passenger side replacement tail lamp with a pigtail. It fits 2-door and 4-door 2007–2018 Jeep Wrangler JK models.
Fit is set by specific JK years and trims rather than being universal. The pigtail connects the lamp to the vehicle’s harness.
Key features
- Passenger side (right) replacement tail lamp
- Pigtail included
- Fits 2 and 4-door models
- Fitment list covers 2007–2018 Wrangler JK trims
Choosing and fitting a tail lamp
A tail lamp does two jobs: it lights the brake and turn signals, and it shows your position to drivers behind you. On a Wrangler JK the lamp housing sits in the rear body and is held by a few fasteners and a wiring plug. Because the lamp ties into both the body and the harness, check the seal and mounting points on the new unit before starting.
Lamps that have been in service for years often show cracked lenses, moisture inside the housing, corroded terminals or a plug that feels loose. Replacing the lamp while leaving a worn connector in place can leave a fault that is hard to trace later, so inspect the plug at the same time. Owners who see heat marks on the wiring often replace the rear plug together with the lamp.
- Inspect the lens and seal for cracks before fitting
- Check terminals for corrosion before plugging in
- Test brake and turn functions before reassembly
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 55077890AC |
| UPC | 848399043778 |
| Part type | Replacement tail lamp |
| Position | Right (passenger side) |
| Includes | Pigtail |
| Body style | 2 and 4-door models |
| Fitment type | Specific JK years and trims, not universal fit |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK): 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, along with their Unlimited versions.
Trims not named above and the TJ, LJ and JL Wranglers are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Disconnect the battery before connecting the pigtail to the harness.
What’s included
One passenger side replacement tail lamp with pigtail.
