Overview

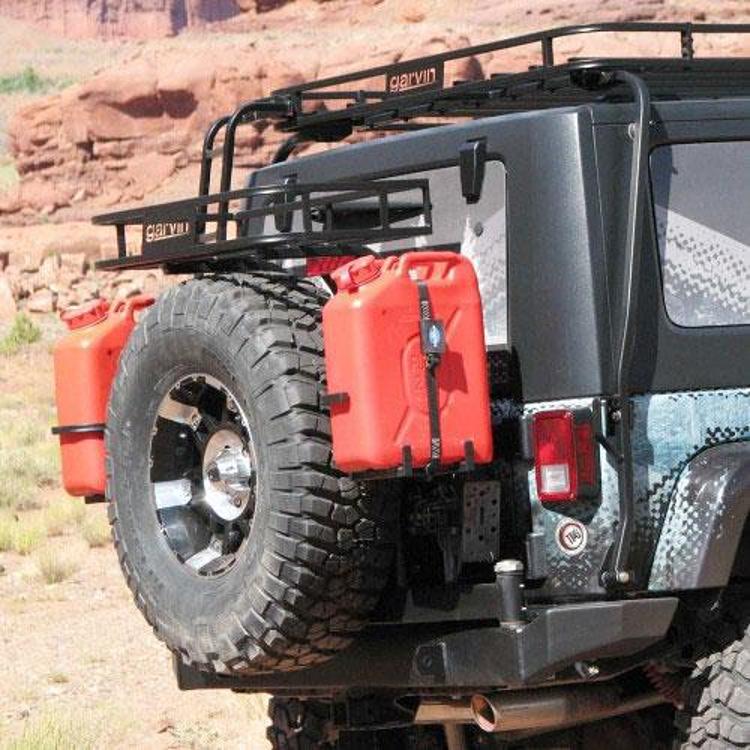

The Garvin Industries G2 Series rear bumper and tire carrier system in black, part number 66701, is a rear bumper with a swing-away tire carrier for JK Wranglers in both 2-door and 4-door models. It holds up to a 37 inch diameter tire with all accessories installed.

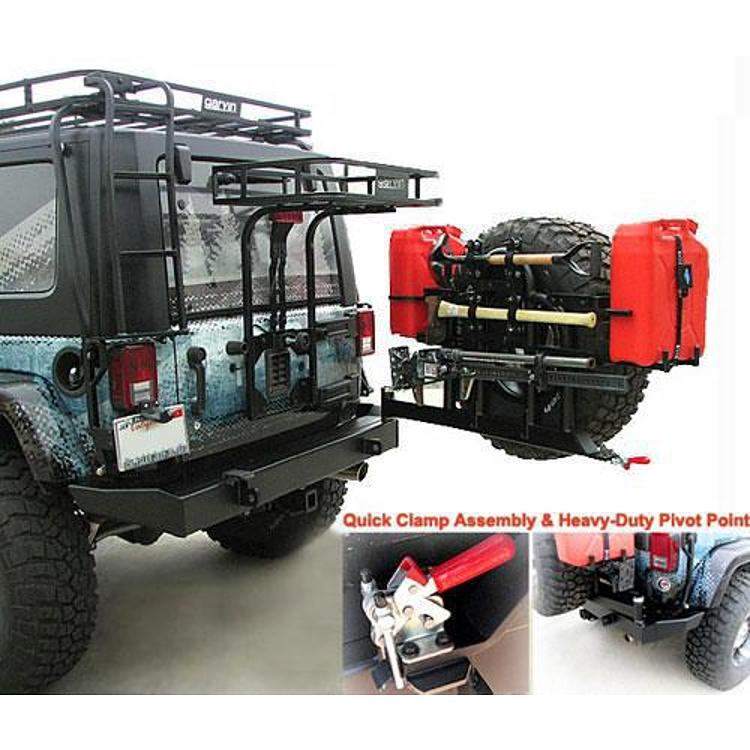

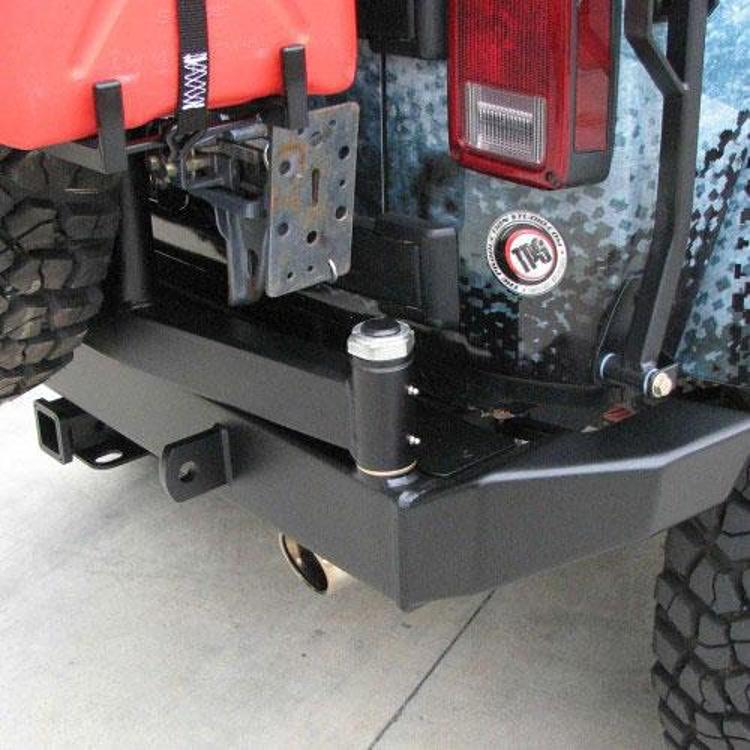

Garvin redesigned the G2 for functionality and a new look. The bumper is built from 3/16″ tubular steel with a 1-1/2″ diameter pivot assembly and heavy-duty 1/4″ aluminum end caps, which also keep the weight down. A heavy-duty quick clamp assembly gives easy access to the back of the Jeep, and a Hi-Lift Jack mount is standard.
The finish is a zinc primer and black textured top coat. The system includes all mounting hardware.
Key features
- Fits all JK Wranglers, 2-door and 4-door
- 3/16″ tubular steel construction
- 1-1/2″ diameter pivot assembly
- 1/4″ aluminum end caps
- Heavy-duty quick clamp assembly
- Holds up to a 37″ diameter tire with accessories
- Hi-Lift Jack mount standard
- Includes all mounting hardware
Carrier use and loading
A swing-away carrier adds weight at the rear of the vehicle, so loads and hitch accessories should be chosen with that leverage in mind. Keep heavy items centered on the carrier and close to the mounting plate, and avoid hanging loads from the far end of the swing arm.
Check the hinge and quick clamp before each trip, since rough roads can loosen hardware. Look at the D-ring mounts and the tire mounting bolts for wear, and confirm the Hi-Lift mount is held firmly before trusting it with a recovery board. Recheck everything after the first few miles of driving.
- Center heavy loads on the carrier
- Check the quick clamp before each trip
- Inspect D-ring mounts for wear
- Confirm the tire clears the door swing
Specifications
| Brand | Garvin Industries |
|---|---|
| Part number | 66701 |
| UPC | 554235002 |
| Series | G2 |
| Part type | Rear bumper and tire carrier system |
| Material | 3/16″ tubular steel, 1/4″ aluminum end caps |
| Pivot assembly | 1-1/2″ diameter |
| Finish | Zinc primer and black textured powder coat |
| Maximum tire size | 37″ diameter |
| Receiver hitch | Yes |
| D-ring mounts | Included |
| Jack mount | Hi-Lift Jack mount standard |
Vehicle fitment
The G2 fits all JK Wranglers, 2-door and 4-door, from 2007 to 2018. Confirm your vehicle’s year, model and trim before ordering.
The TJ, LJ, YJ and JL Wranglers are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Rear bumper and tire carrier system
- All mounting hardware
- Hi-Lift Jack mount
- D-ring mounts
