Overview

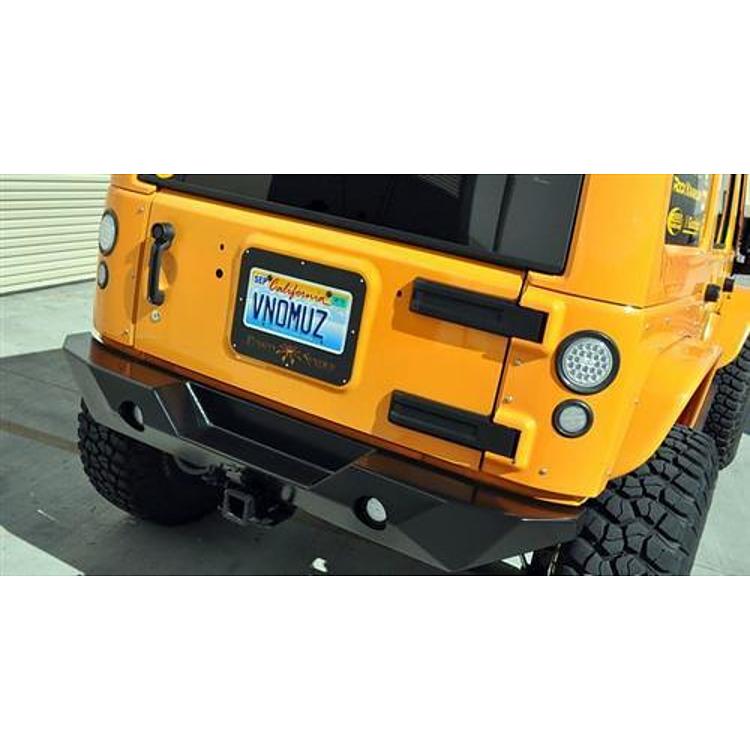

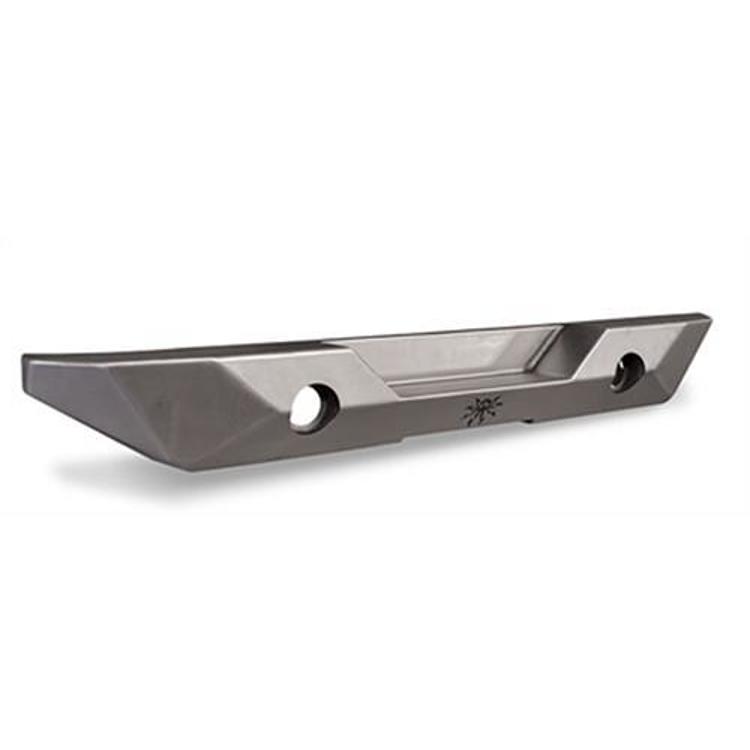

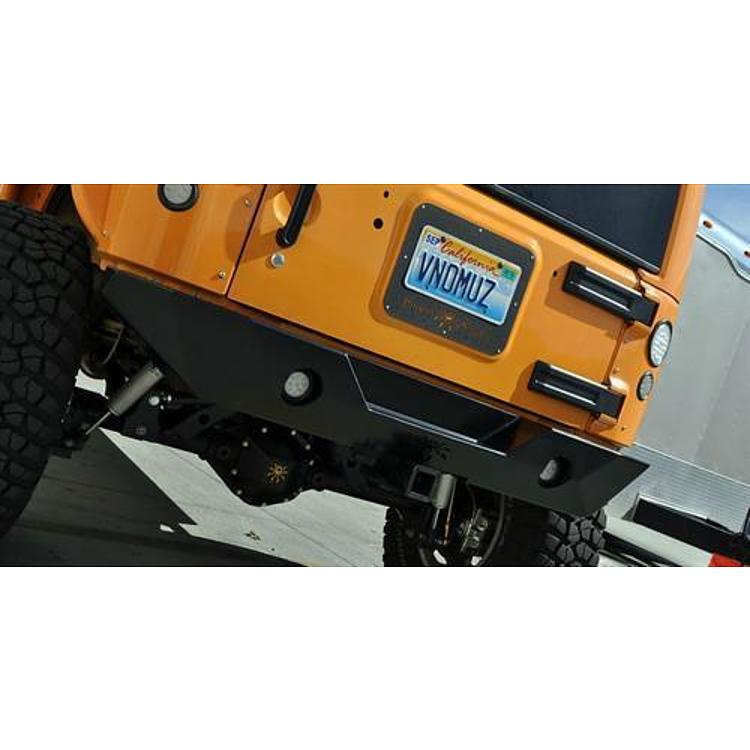

The Poison Spyder RockBrawler Rear Bumper in bare steel, part number 17-61-010, is a JK Wrangler rear bumper made from 3/16″ plate steel with recessed buckets for backup lamps. It works with the existing OE tow hitch and fits 2-door and 4-door models.
The bumper has a high clearance, multi-faceted design cut by CNC laser and brake formed from plate steel. It mounts without cutting or altering the JK frame rails, which separates it from the BFH Rear Bumper for JK. Eight Grade 8 bolts on three different planes secure it to the rear crossmember and mounting flanges.
The recessed buckets accept 2-1/2 inch round clear LED lamps, which are sold separately as part number PSC41-04-300. The built-in step and recess give rear access, and the bumper leaves room for the spare tire. It works with the stock spare tire carrier and tires up to 35 inches.
Key features
- Bare steel, ready to paint or powder coat
- 3/16″ CNC laser cut plate steel
- Recessed light buckets for 2-1/2″ round LED lamps
- Works with your existing OE tow hitch, which is easily removable
- Built-in step and recess for rear access
- Mounts without cutting the frame rails
- Eight Grade 8 bolts on three planes
- Works with the stock spare tire carrier and up to a 35″ tire
Wiring and upkeep
Bare steel needs paint or powder coat soon after installation, especially in the bolt seams where moisture collects. Wiring the backup lamps is up to the installer. Many owners tie the LEDs into the reverse light circuit so they switch on with the reverse lights, while others run a separate dash switch for work lighting off road.
A rear bumper carries weight and takes hits from the trail, so the bolts and crossmember connection deserve regular attention. Look for loosening, paint chips and cracked welds, and keep the OE hitch tight whenever it is in use. A bumper like this can change the rear approach angle, so keep that in mind when choosing trails.
- Seal the lamp openings against water before wiring
- Check bolt torque after the first few trail runs
- Touch up bare spots promptly to slow rust
Specifications
| Brand | Poison Spyder Customs |
|---|---|
| Part number | 17-61-010 |
| UPC | 614901727296 |
| Part type | Rear bumper |
| Material | 3/16″ plate steel |
| Finish | Bare steel |
| Light provisions | Recessed buckets for 2-1/2″ round LED lamps |
| Hitch | Uses the existing OE tow hitch |
| Tire carrier | Not included |
| Mounting hardware | 8 Grade 8 bolts |
| Maximum tire size on stock carrier | 35″ |
| Body styles | 2-door and 4-door |
Vehicle fitment
This RockBrawler fits the 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door form.
The 17-62-010 RockBrawler II is a different bumper. Verify your vehicle’s year, model and trim against this part before buying.
Installation notes
The bumper needs no cutting or altering of the Jeep’s frame rails. The OE tow hitch is retained and can be removed for extra clearance.
Bare steel needs to be painted or powder coated to prevent rust. Wiring the LED lamps is left to the installer, either into the reverse light circuit or to a separate dash switch.
What’s included
- RockBrawler rear bumper with Grade 8 mounting hardware
Not included: the LED lamps (part number PSC41-04-300).
