Overview

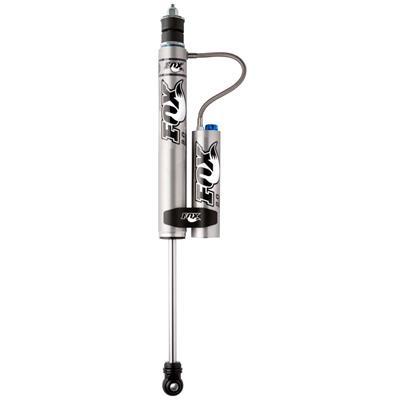

The FOX985-26-174 is a 2.0 Performance Series smooth body reservoir shock with a DSC adjuster. It fits the 2017 to 2022 Ford F-250 and F-350 Super Duty in King Ranch, Lariat, Limited, Platinum, XL and XLT models.
The shock is a rear unit, so confirm the position against the original shock before ordering.
The aluminum body is designed to dissipate heat faster than a steel body. The external reservoir adds oil and nitrogen capacity, and the bolt-on package is designed for a race-style look.
The black anodized reservoir hardware, including the mounting clamp, is CNC machined from 6061-T6 aluminum. A high flow damping piston with application specific valving is designed to keep the ride predictable over rough ground.
The shock has eyelet top and bottom mounts, a 2.0 inch body diameter, a reservoir shock type and a gas charge, with a billet reservoir clamp included. Confirm how the DSC adjuster works for your application before ordering.
Key features
- Eyelet top and bottom mounts
- 2.0 inch body diameter
- External reservoir with billet clamp included
- Clear anodized aluminum body
- CNC machined 6061-T6 aluminum clamp and components
- High flow damping piston with application specific valving
Heavy-duty payload and heat
Super Duty trucks carry and tow heavy loads, and their rear shocks run hot on long grades. A reservoir design gives the oil and gas more room to separate, which helps the shock hold damping steady under sustained work. Choose a shock with the right length and mount type for the truck’s suspension, because the load rating and ride height both affect how the unit performs.
Keep the reservoir clamp tight and the body clear of mud, since restricted airflow can raise operating temperature. Check the shock for leaks at the body and reservoir, and listen for knocking over bumps. Replacing both rear shocks at the same time keeps the rear end balanced under load.
- Match length and mounts to the truck’s suspension
- Keep the body clear of mud and debris
- Replace both rear units together
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-26-174 |
| Series | 2.0 Performance Series |
| Position | Rear (one location label reads front) |
| Shock type | Reservoir |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 inches |
| Charge | Gas charged |
| Reservoir clamp | Billet, included |
| Adjuster | DSC (per title) |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2017 to 2022 Ford F-250 Super Duty and F-350 Super Duty in King Ranch, Lariat, Limited, Platinum, XL and XLT models.
The list covers 2017 to 2022 Super Duty models only. Confirm your vehicle’s year, model, trim and shock position before ordering.
Installation notes
Confirm the position first, then compare the eyelet mounts and the 2.0 inch body with the original shock. Plan the reservoir location before fitting, and work on a securely supported vehicle.
What’s included
One reservoir shock with billet reservoir clamp.
