Overview

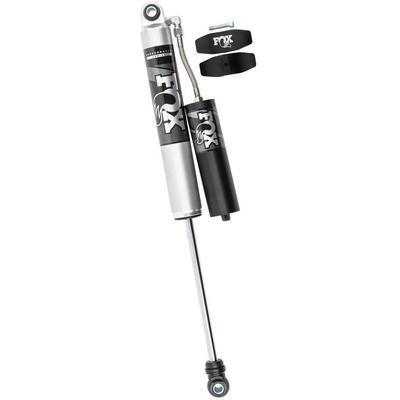

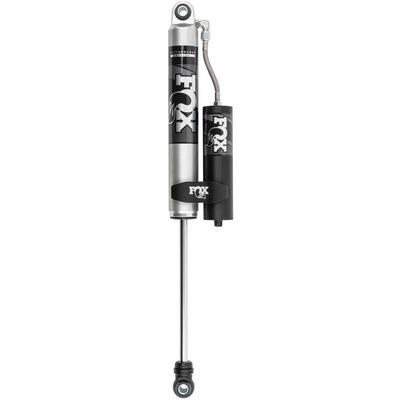

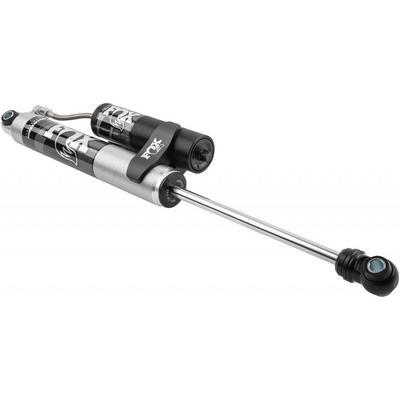

The FOX Performance Series 2.0 Reservoir Smooth Body Shock, part number FOX985-24-243, is a rear shock with an external reservoir for the 2020–2026 Chevrolet Silverado 2500 HD and 3500 HD and the GMC Sierra 2500 HD and 3500 HD.
The shock’s aluminum body is clear anodized and metal-impacted, which helps it dissipate heat faster than a steel body. The external reservoir provides more oil and nitrogen capacity and a race-style look, and the damping piston is matched to valving for the application.
Heavy-duty Silverado and Sierra trucks carry larger loads and tow more often, so rear damping is under steady demand. The external reservoir adds oil and nitrogen capacity beside the body, and the aluminum body is clear anodized to help it dissipate heat faster than steel.
The mounts are eyelets at both ends, and the shock has a 2.0 in body. Measuring the existing shock’s mounts before ordering helps confirm the match for the 2500 HD and 3500 HD trucks listed, and the reservoir should clear the frame rail on the truck.
Key features
- External reservoir for added oil and nitrogen capacity.
- Clear anodized, metal-impacted aluminum body.

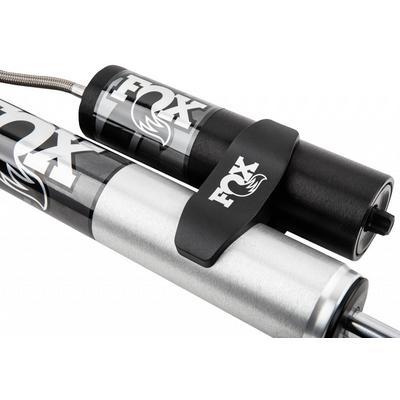

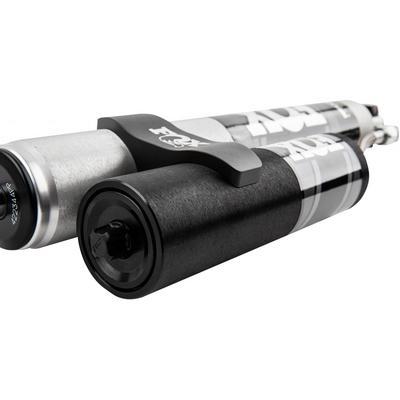

- Black anodized reservoir clamp machined from 6061-T6 aluminum.
- High flow damping piston with application-specific valving.

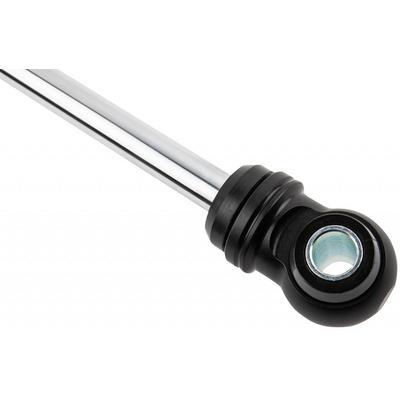

- Eyelet mounts on both ends with a 2.0 in body.
Heavy-duty rear damping
Heavy-duty pickups handle larger loads, tow more often and carry heavier cargo. The rear shocks absorb that weight shifting through the axle, so the damping matters for stability on the highway and control over uneven ground. A reservoir layout helps manage the heat that builds during long tows.
When the shocks are replaced, inspect the mounting hardware and bushings at the same time. Heavy-duty trucks put more stress on the eyelets, so worn bushings should be replaced alongside the shock. Check the rear springs and the load rating of the truck before choosing a damping setup, and keep the body clean so heat escapes.
- Check the load rating before choosing a setup
- Inspect eyelet bushings for wear
- Keep the aluminum body clean for heat release
- Recheck hardware after the first long tow
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-243 |
| Shock series | 2.0 Performance Series |
| Position | Rear |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Reservoir |
| Charge | Gas charged |
Vehicle fitment
Fits the 2020–2026 Chevrolet Silverado 2500 HD and 3500 HD and the 2020–2026 GMC Sierra 2500 HD and 3500 HD across their trim levels. Light-duty 1500 trucks do not fit.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear shock with its reservoir and the reservoir clamp.
