Overview

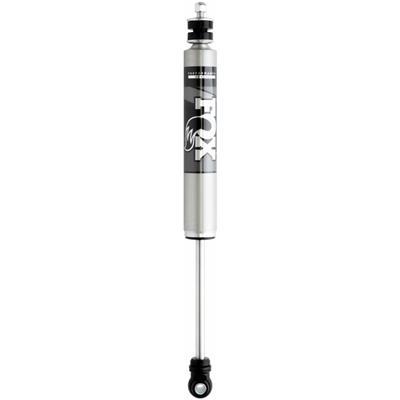

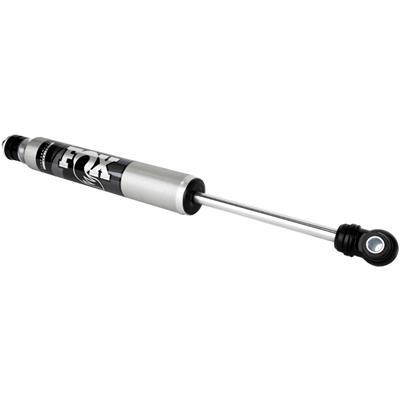

Part number FOX985-24-157 is a front monotube shock from the FOX Performance Series 2.0 Smooth Body IFP line, fitting 2017–2022 Ford F-250 and F-350 Super Duty trucks. Its internal floating piston keeps the oil and the high-pressure nitrogen gas apart.
The shock is set up for a comfortable daily ride on paved roads, with steady control when the trail gets rough. The aluminum body is impact-formed for better cooling and corrosion resistance, and the damping piston is paired with application-tuned valving.
Front shocks on a Super Duty carry a large share of the truck’s weight, so the mounting points and body diameter should be checked against the old shock before installation. The stem top upper mount and the 2.0 in body are the first details to compare.
Key features
- Internal floating piston separates the oil from the gas chamber.
- No oil aeration, so the factory-tuned valving keeps its intended feel.
- High flow damping piston with application-specific valving.
- Metal-impacted aluminum body that cools well and does not rust.

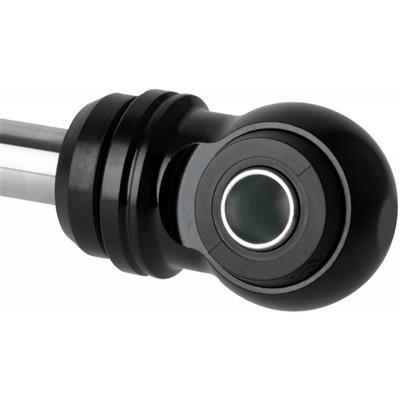

- Stem top and eyelet mounts with a 2.0 in body diameter.
Monotube design basics
A monotube shock runs one pressure tube, with a floating piston dividing the oil from the gas. That layout keeps the damping more consistent than many twin-tube designs when the shock heats up on a long descent or a rough trail. Front shocks on a Super Duty carry a large share of the weight, so the internal seals and piston get steady work.
When choosing a monotube replacement, look at the body size, mounting style and how the valving is tuned for the truck’s use. Heavier trucks benefit from shocks sized for their load. Keep bushings and mounts in good condition, since worn hardware can make even a good shock feel loose.
- Look for matched valving to the application
- Check mounts before tightening
- Replace worn bushings with the shock
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-157 |
| Shock series | 2.0 Performance Series |
| Position | Front |

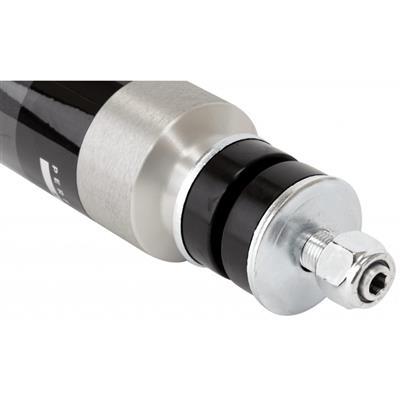

| Top mount | Stem top |
| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Shock type | Monotube, IFP |
| Charge | Gas charged |
Vehicle fitment
It fits 2017–2022 Ford F-250 Super Duty and 2017–2022 Ford F-350 Super Duty across their trim levels. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included

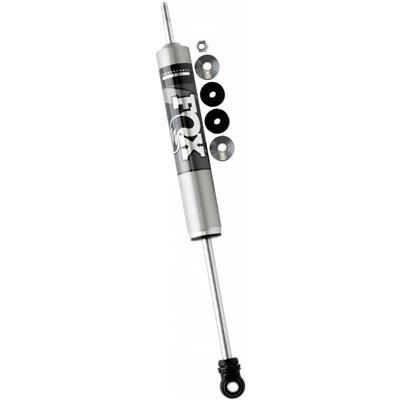

One front shock absorber. Check the fastener kit against your installation before fitting.
