Overview

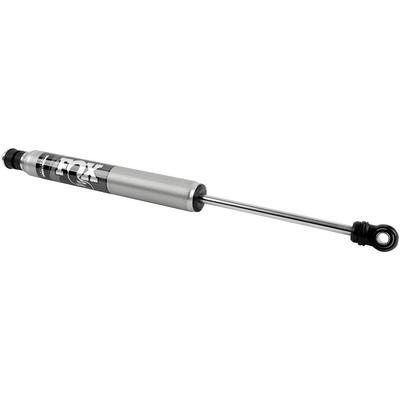

Part number FOX985-24-204 is a front monotube shock that fits 2014–2026 Ram 2500 and Ram 3500 trucks. It offers 10.690 in of travel, with a 27.640 in extended length and a 16.950 in compressed length.
The shock’s internal floating piston keeps the shock oil apart from the nitrogen gas, so the damping is consistent. FOX describes its damping as race-proven, tuned for comfort on the road and predictable control on rough ground. The aluminum body is metal-impacted, which helps it shed heat.
The stated travel is 10.690 in, with a 27.640 in extended length and a 16.950 in compressed length. Those three figures are the measurements to match against the shock you are replacing, because the mounting points determine how much of the travel the truck actually uses.
The monotube has an internal floating piston that separates the oil and nitrogen gas. That separation limits aeration and keeps damping consistent under heavy loads. Ram 2500 and 3500 owners wanting a longer front stroke should compare the length figures with the original part before ordering.
Because the travel figure is stated directly, it is the easiest number to check against the original part when comparing options.
Key features
- Internal floating piston separates the shock oil from the nitrogen gas.
- Eliminates oil aeration, so the valving keeps its intended calibration.
- High flow damping piston matched with application-specific valving.
- Metal-impacted aluminum body with cooling capacity and corrosion resistance.
- Long stroke with 10.690 in of travel.
Front shock travel and stroke
Travel and length measurements decide how much of the suspension range a shock can use. A longer stroke can help a heavy front end move through larger bumps, but the mounting points and ride height still set how much of that travel the truck actually uses. The extended and compressed lengths are the figures to compare with the shock being replaced.
Ram 2500 and 3500 trucks often carry plows, winches or heavy bumpers, which changes the front load. Check steering clearance, bump stop contact and brake hose routing after any change in shock length. Re-check alignment after replacing the front shocks, since ride height changes can shift caster and camber.
- Compare extended and compressed lengths
- Check steering and brake hose clearance
- Re-check alignment after replacement
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-204 |
| Shock series | 2.0 Performance Series |
| Position | Front |

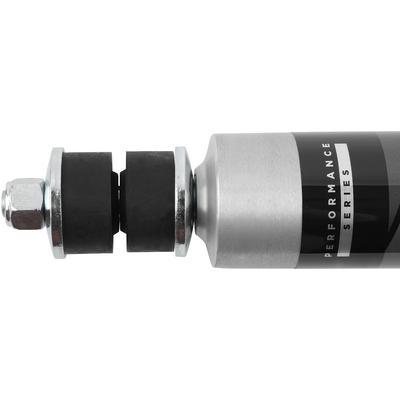

| Top mount | Stem top |

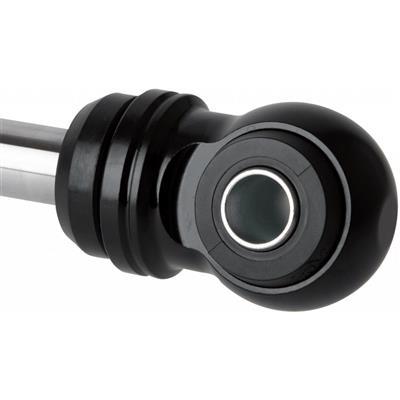

| Bottom mount | Eyelet |
| Body diameter | 2.0 in |
| Travel length | 10.690 in |
| Extended length | 27.640 in |
| Compressed length | 16.950 in |
| Shock type | Monotube |
Vehicle fitment
It fits the 2014–2026 Ram 2500 and 3500, across their cab and trim configurations, including Power Wagon. The 1500 is outside this fit.
Confirm your vehicle’s year, model and trim before ordering.

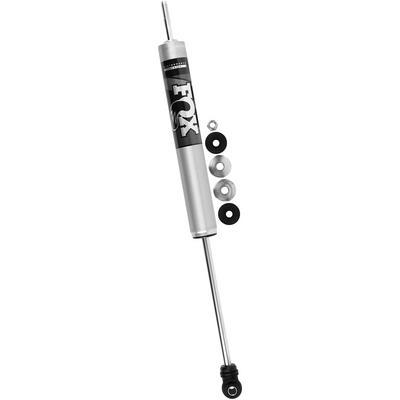

What’s included
One front shock absorber. Confirm the fasteners before fitting.
